ANTENNA
Model
Builder
Entrant
|
SIGNAL
dB
+/-REF
|
SIZE
DEPLOYED
Length
(feet)
|
SIZE
PACKED
(inch)
|
WEIGHT
Approx
lb
|
Click to
Zoom
|
COMMENTS
NOTES
DESCRIPTION
|
| Reference Vertical |
0.00 |
16.5ft |
 |
- |
 |
1/4wave of #14AWG tinned copper stranded bare wire, supported on
fiber pole.
|

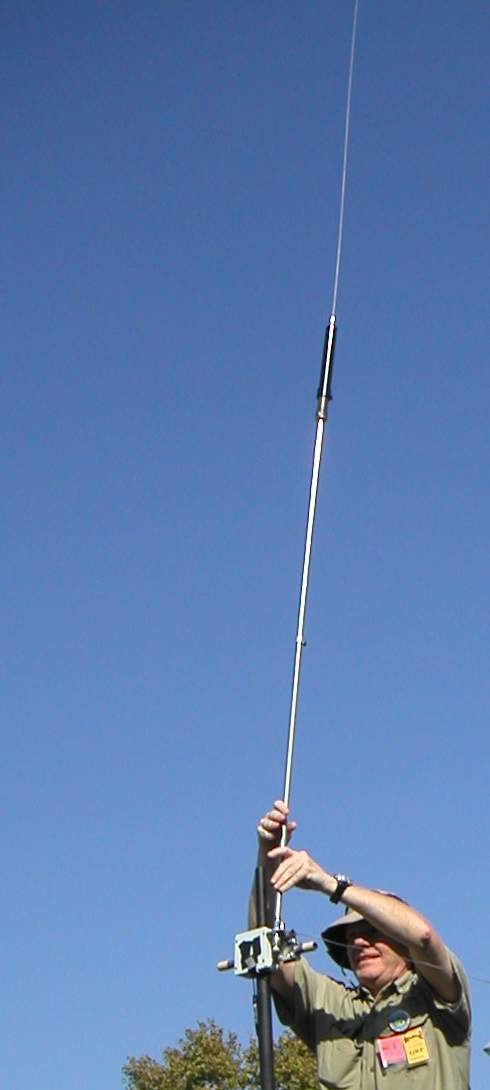

MP1(long)
SuperAntennas,
Vern W6MMA |
-0.30 |
9.75ft |
24x3x2
 |
<2 |
 |
Portable/Pedestrian/Mobile.
57" base rod. Segmented tubular metal rod below coil, variable adjust
sliding coil, telescopic top section. |

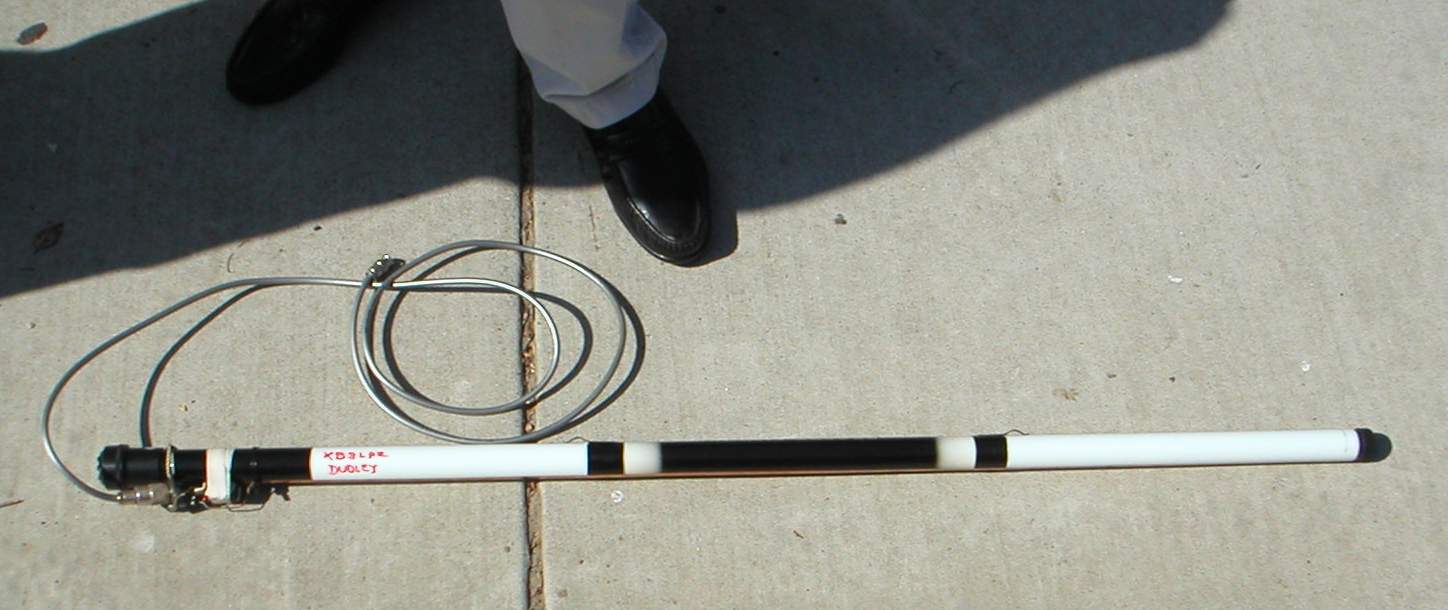

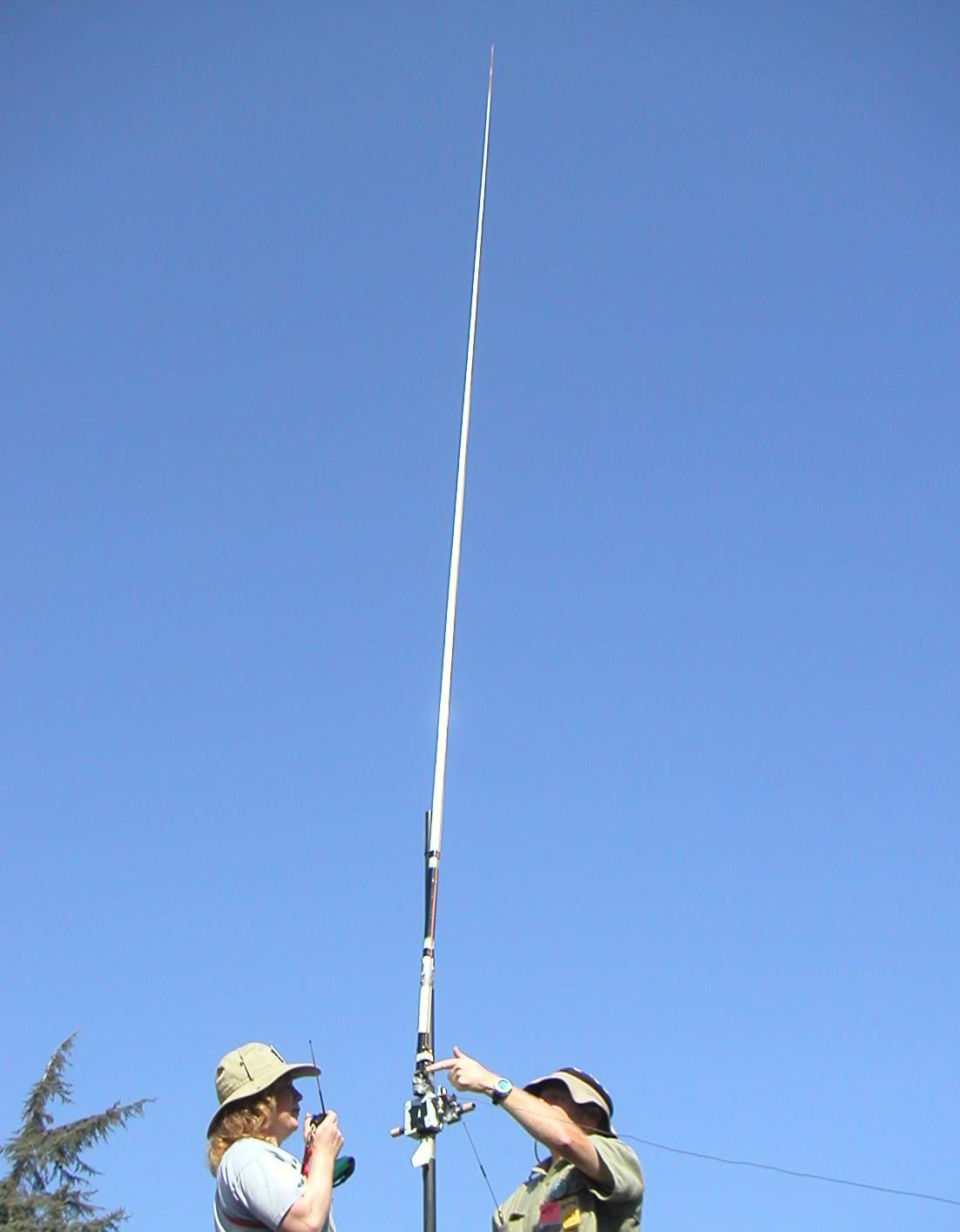

Dudleypole
Dudley KB8LPZ |
-0.39 |
20.0ft |
45x2x2
 |
<2 |
 |
Portable/Pedestrian.
Copper tape applied to collapsible fiber pole, with ferrite toroid
matching. Problem: SWR >2.5:1, could not be resolved. |

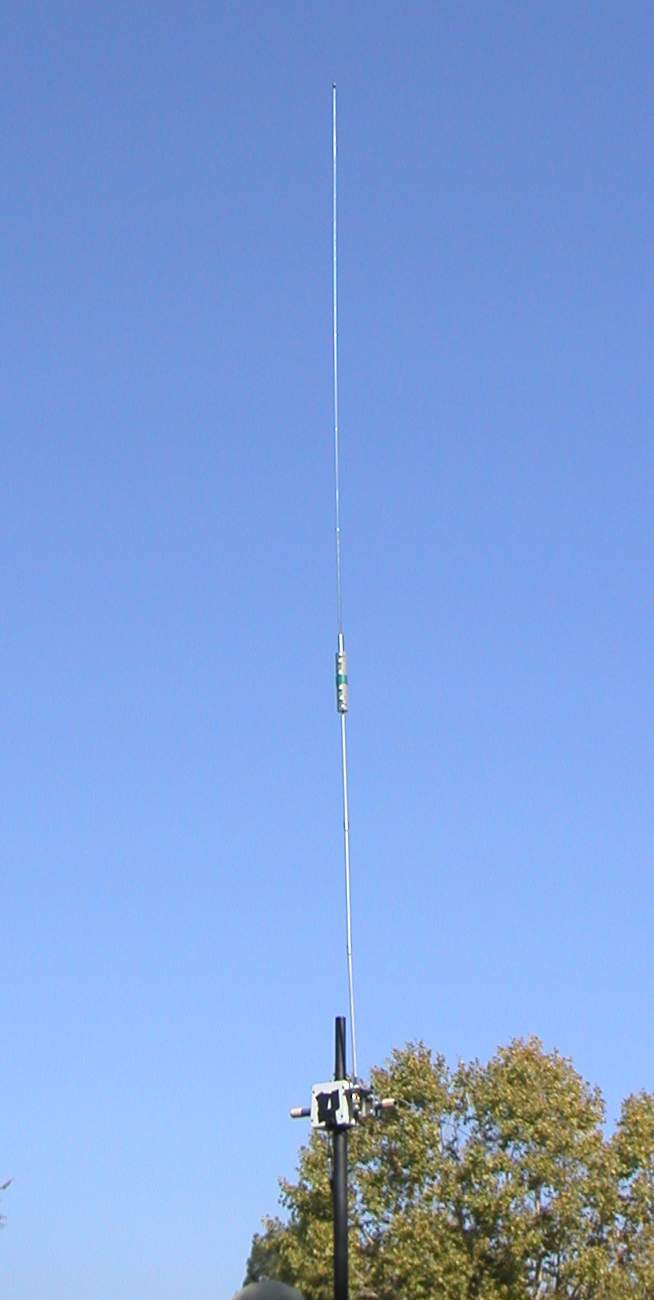

PAC-12C
James KA5DVS |
-0.83 |
9.5ft |
12x2x1
 |
<2 |
 |
Portable/Pedestrian.
Aluminum rod with fixed coil on PVC form. Telescopic whip tip. |
YP-1
SuperAntennas,
Vern W6MMA |
-0.88 |
9.2ft |
30x3x3 |
<1 |
 |
Portable/Pedestrian.
Sectioned aluminum tubing with fixed loading coil. Half of the driven
element of the YP-1 Portable Dipole, used as a vertical whip. |
HFp
Ventenna Co.,
John WB4YJT |
-0.88 |
6.5ft |
18x2x2
 |
2.2 |
 |
Portable/Pedestrian.

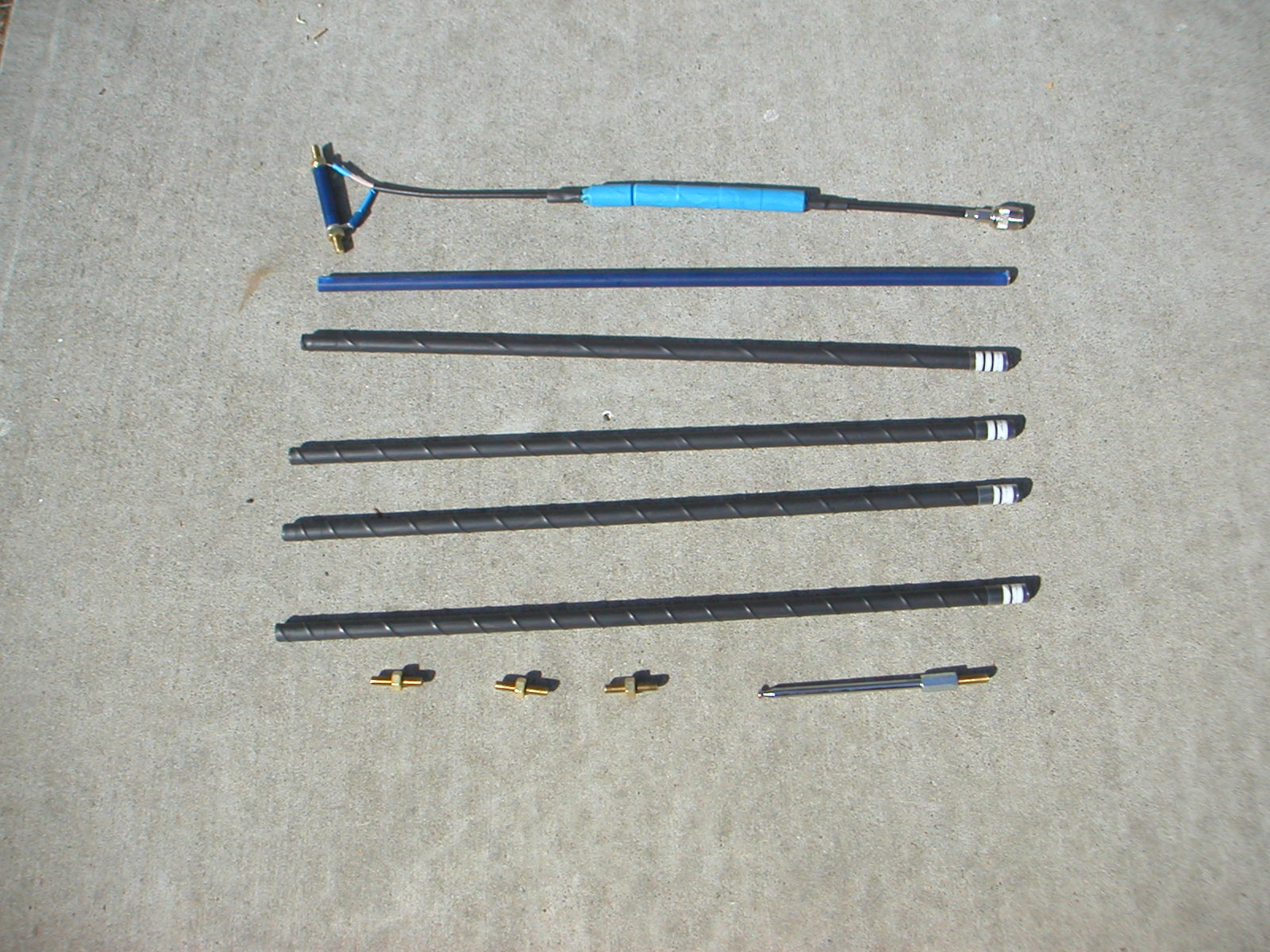

Multi-coil continuous spiral loading, wire wound on segmented fiber
tubing with insulated covering |
MP1(medium)
SuperAntennas,
Vern W6MMA |
-1.11 |
7.0ft |
24x2x2 |
<2 |
|
Pedestrian/Portable/
Bike/Mobile.
24" base rod. Segmented tubular metal rod below coil, variable adjust
sliding coil, telescopic top section |
Minuteman 20
Quicksilver Radio Products |
-1.24 |
10.9ft |
17x8x8
 |
5 |
 |
Portable.

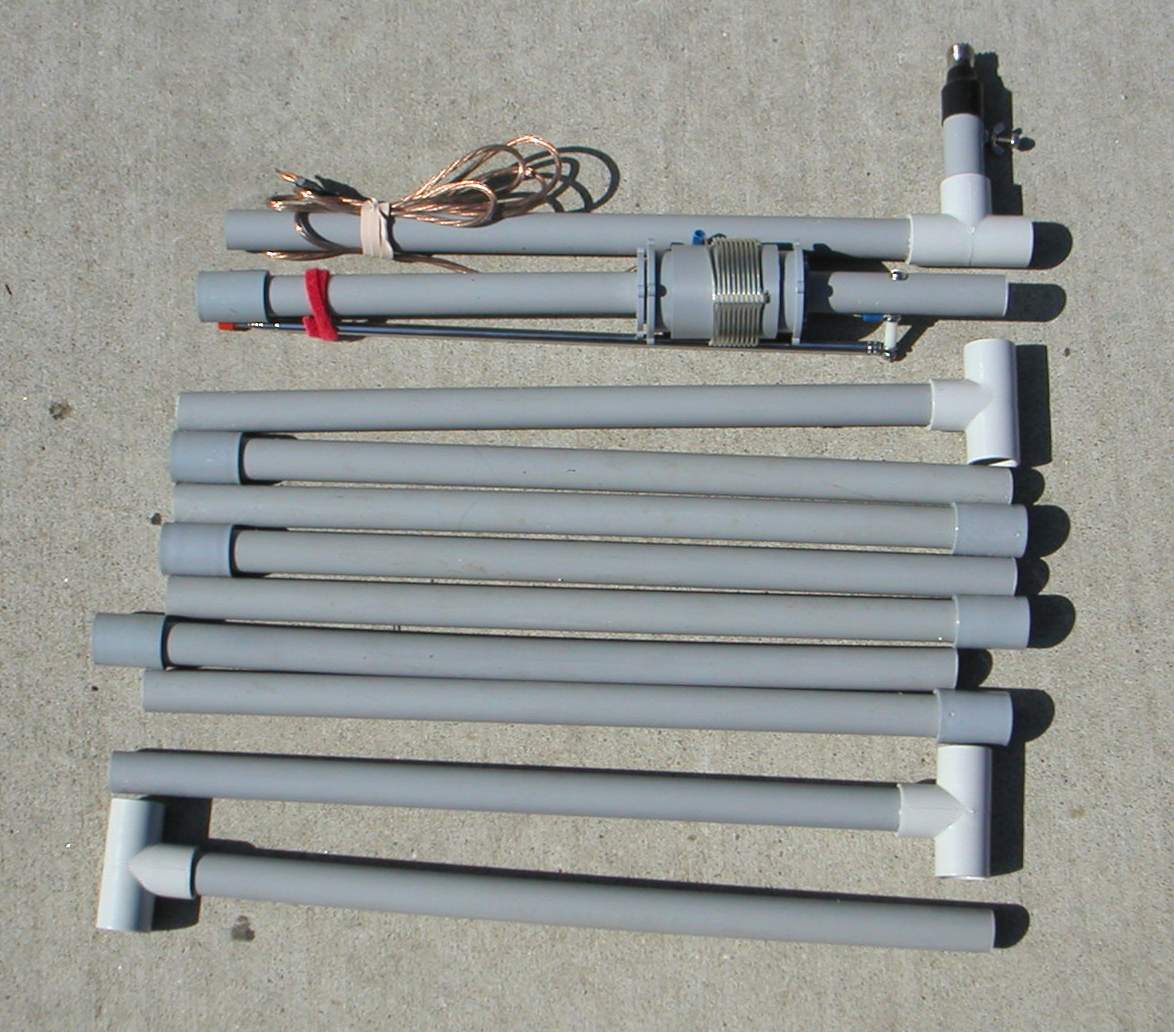

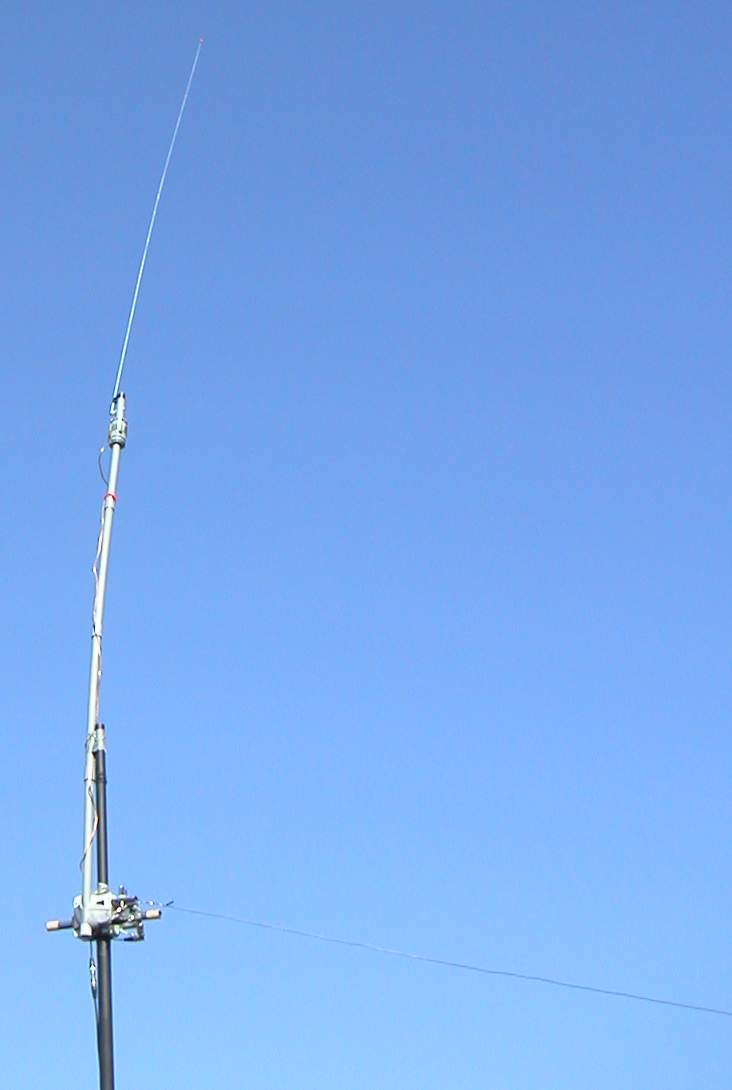

Wire supported on sections of PVC pipe. Air Dux loading coil with aligator
clip. Telescopic whip tip on screw near top of PVC pipe. |
MP3 Screwdriver
SuperAntennas,
Vern W6MMA |
-1.56 |
7.0ft |
36x2x2 |
>2 |
no photo |
Mobile/Bike/Portable.
Collapsible motorized sliding coil "screwdriver" with tubular 3ft base
section, stainless whip tip. |
MP1 (short)
SuperAntennas,
Vern W6MMA |
-2.18 |
6.0ft |
12x2x3
|
<2 |
|
Pedestrian/Portable/
Bike/AutoMobile.
12" base rod. Segmented tubular metal rod below coil, variable adjust
sliding coil, telescopic top section. |

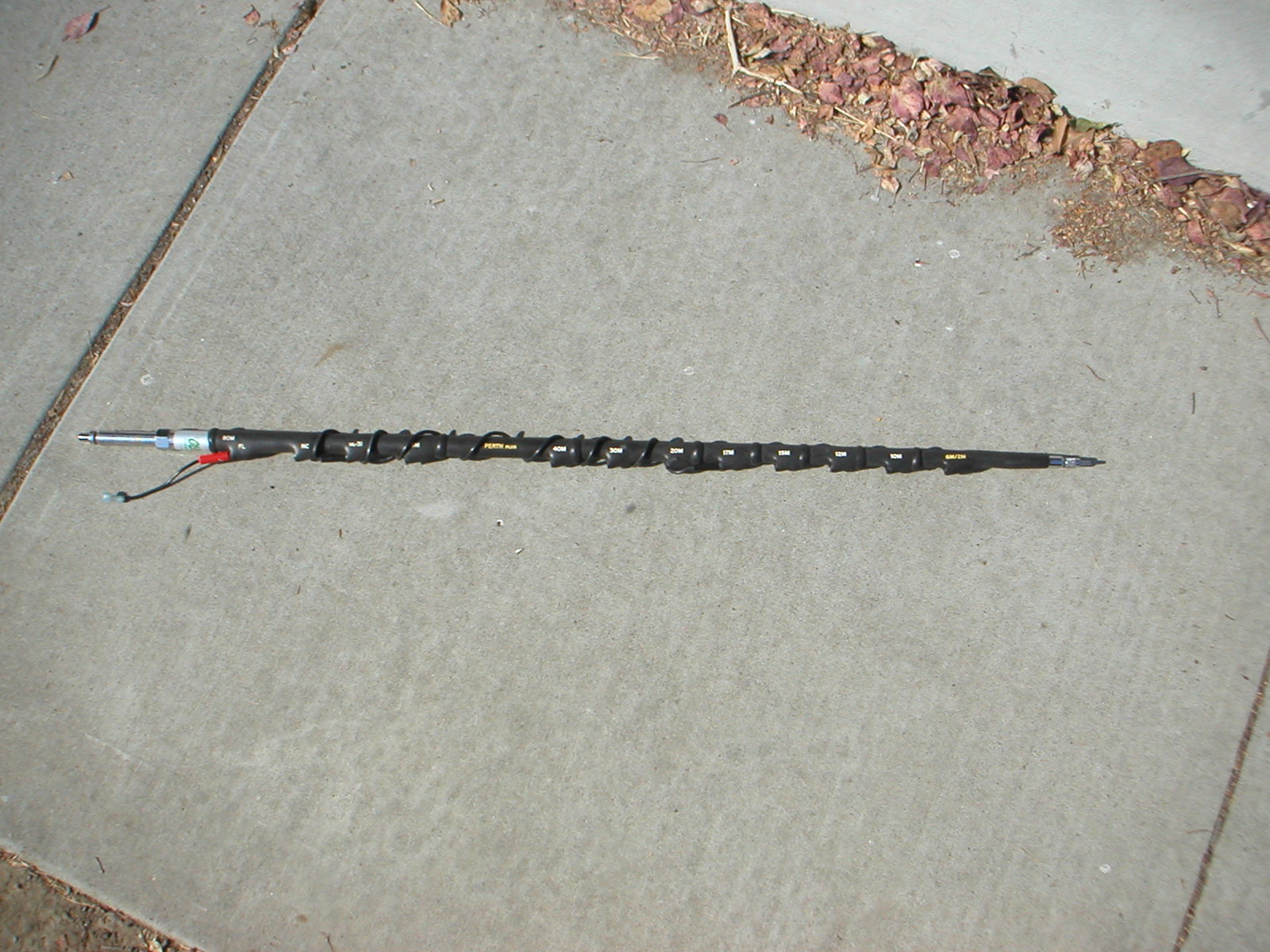

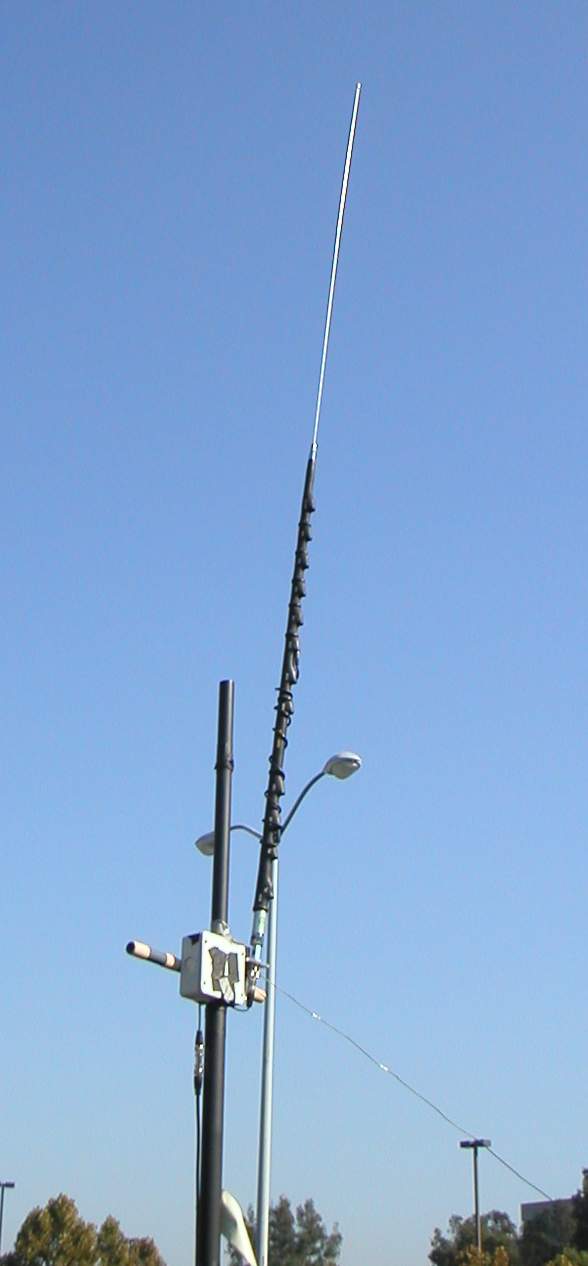

Perth Plus
Terlin Outbacker,
Sharyl W3VET |
-2.84 |
5.7ft |
35x1x1
 |
<2 |
 |
Mobile/Bike/
Pedestrian/Portable.
Wire wound on fiberglass epoxy dipped, band-tapped coil, jumper lead,
stainless steel adjustable length whip tip. |

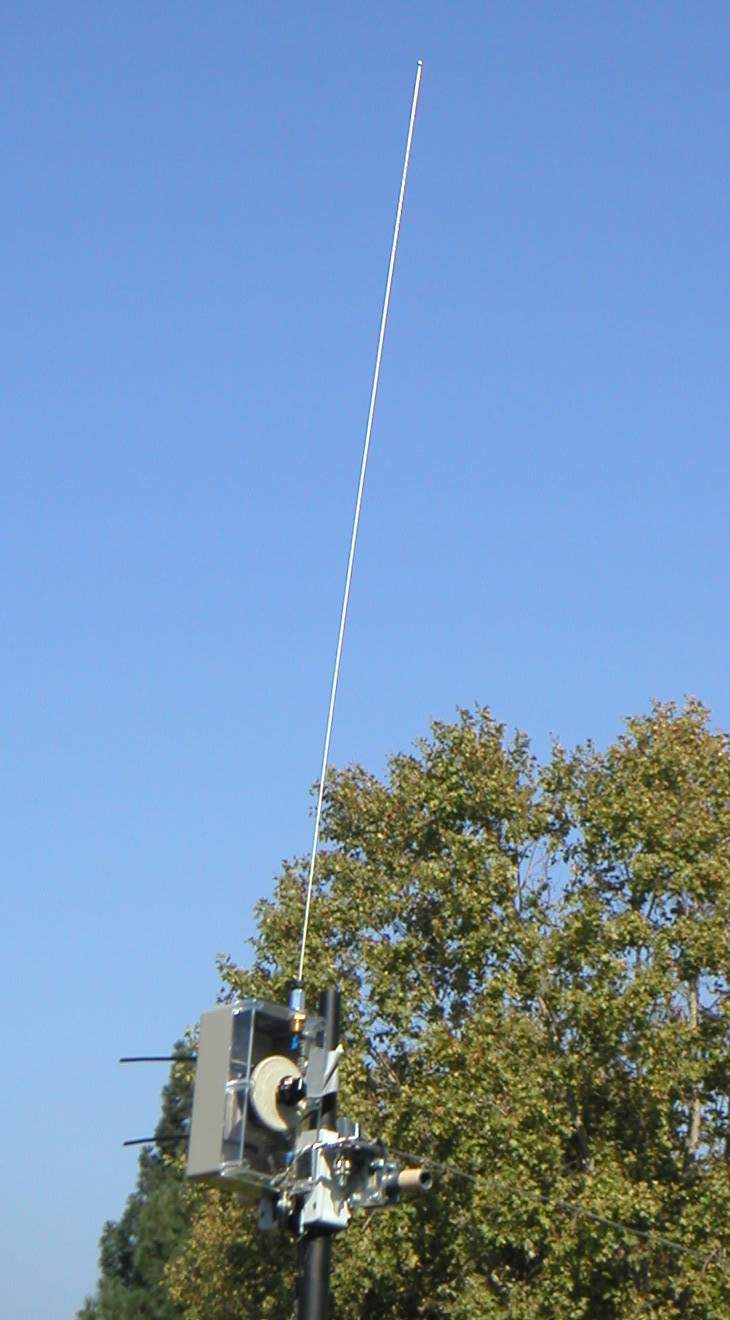

Wonder Whip (long)
Bonnie KQ6XA |
-2.86 |
7.5ft |
24x4x5
 |
>2 |
 |
Portable/Pedestrian.
Wirewound potentiometer as base loading in a plastic box, BNC connector,
3/8-24 mount with sections of metal tubing and telescopic whip tip. Turning
knob of the pot adjusts frequency resonance/matching. SWR 1:1 |
ATX Walkabout
Waters and Stanton |
-4.38 |
5.3ft |
11x1x1
 |
<1 |
|
Pedestrian/Portable.
Band-tapped jumper lead for small solid loading coil, telescopic whip.
BNC, PL-259 or 3/8-24 base available. |

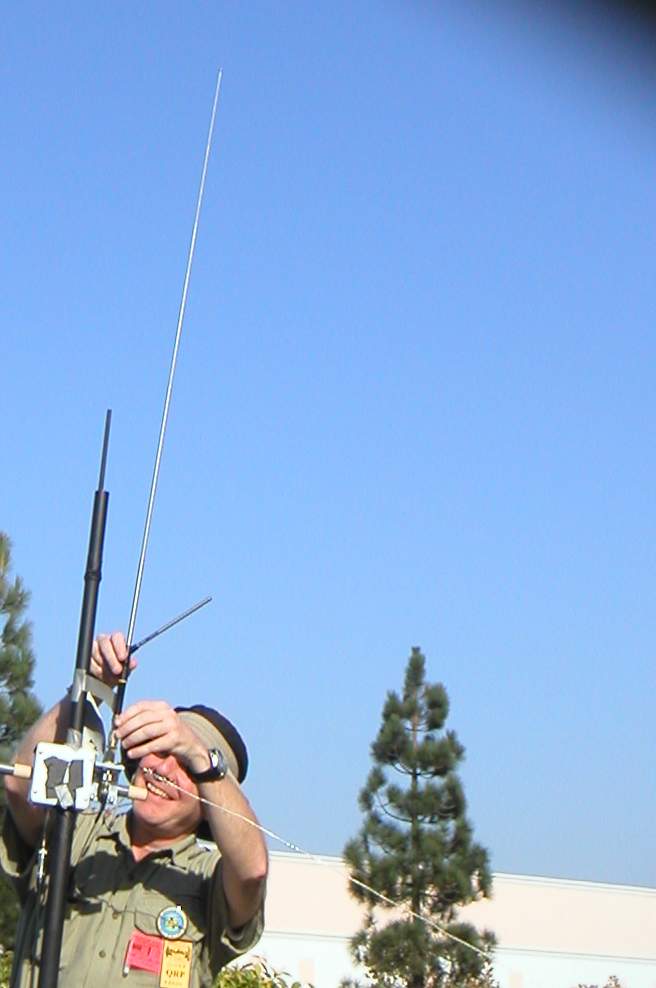

AH
14
Maldol,
Cortland KA5S |
[-4.82]
*See
Notes |
4.0ft |
7x.5x.5
 |
<1 |
 |
Pedestrian/Portable.

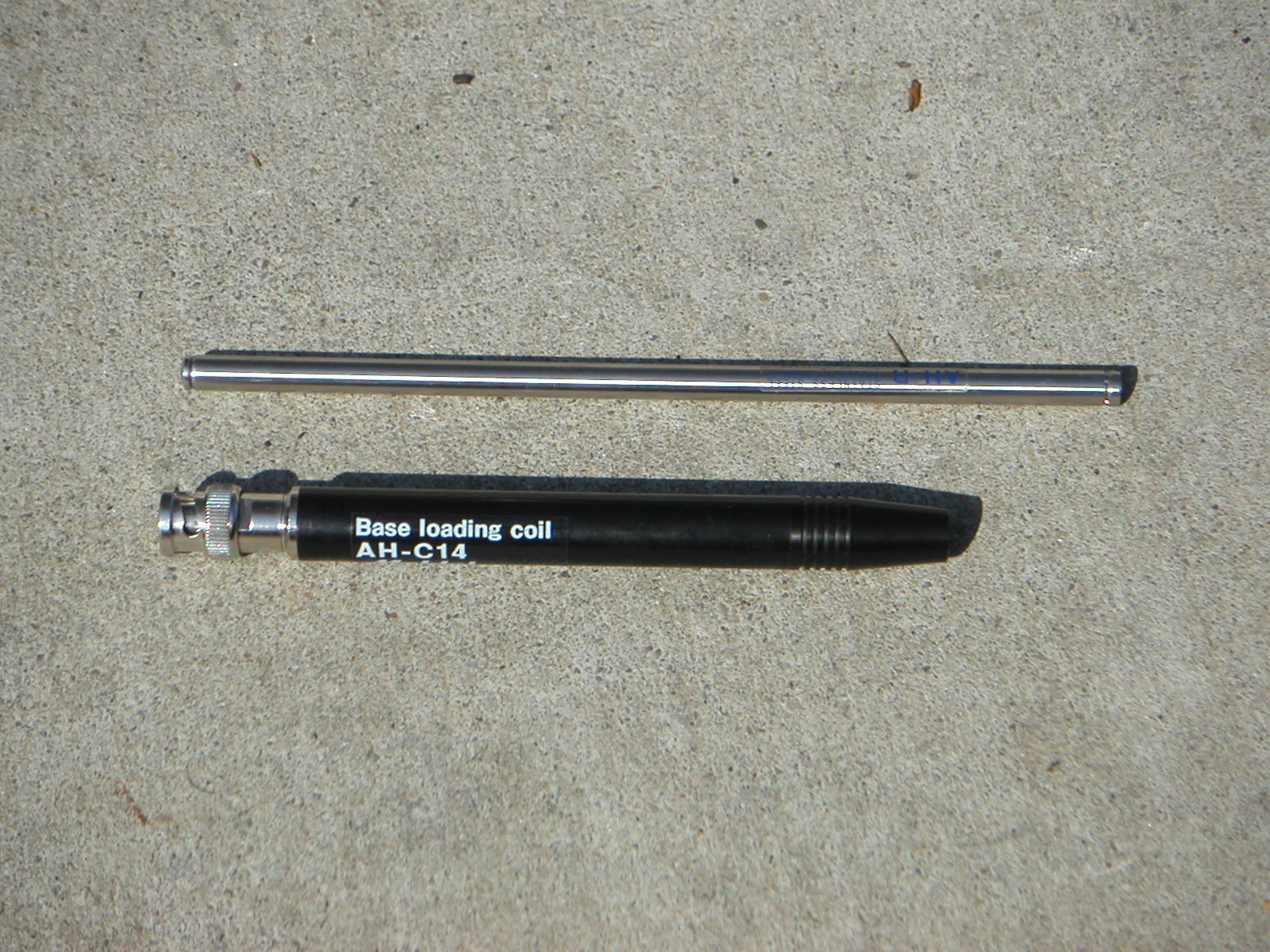

Base loaded telescopic whip with BNC. Fixed coil for each band.
*Special Notes: Both AH14
antennas we tried were resonant at above 15MHz.This appears to be a design
or production problem. SWR was way over 3:1, so the counterpoise was lengthened
to about 20ft to resonate this antenna at 14.1MHz! We believe this antenna
has higher loss than is indicated by the measurement, due to the fact that
the longer counterpoise "unfairly" contributed a higher percentage of radiated
RF. |
Wonder Whip (short)
Bonnie KQ6XA |
-7.16 |
4.3ft |
7x4x4
|
2 |
|
Portable/Pedestrian.
Variable base loading, BNC connector, 3/8-24 mount with telescopic
whip tip. Turning knob adjusts frequency resonance/matching. |
Miracle Whip
Miracle Antenna |
-10.59 |
4.3ft |
7x1x1
 |
<1 |
 |
Portable/Pedestrian.

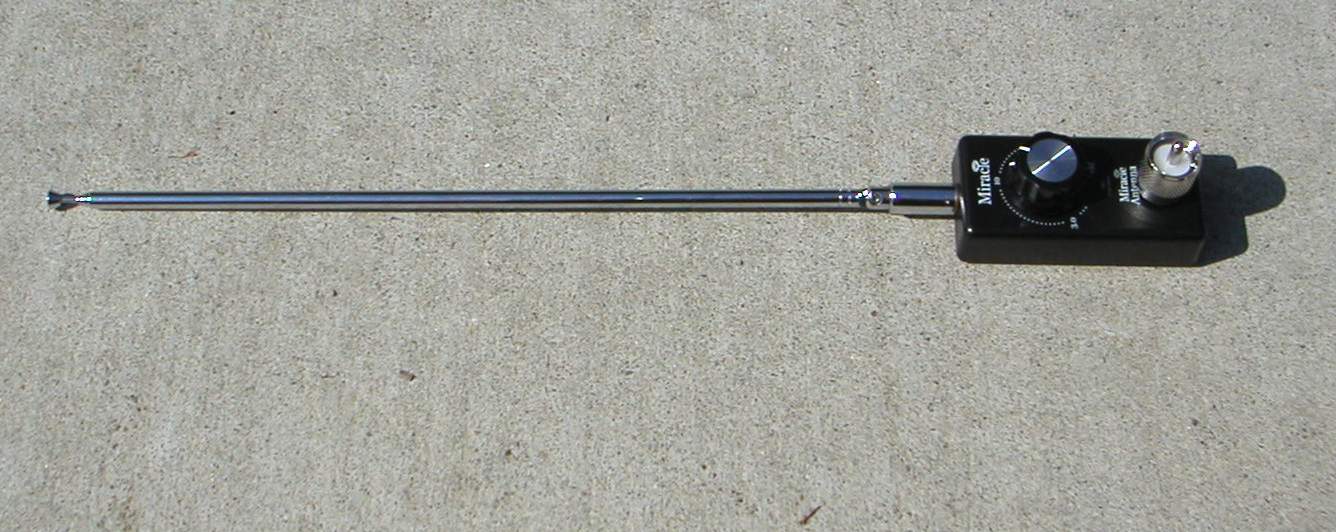

Wirewound ferrite toroid potentiometer as base loading in a plastic
box, PL259 connector, with telescopic whip tip. Turning knob of the pot
adjusts frequency resonance/matching. |
75ohm Resistor with 90" Whip.
Bonnie KQ6XA |
-17.82 |
7.6ft |
24x1x1 |
<1 |
 |
Pedestrian/Portable.

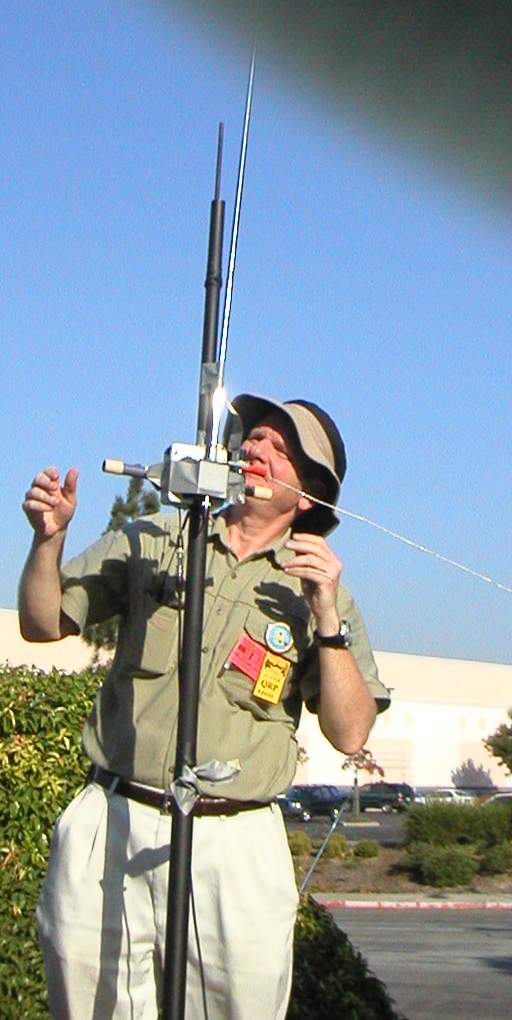

75 ohm 5W resistor across BNC connector, in plastic box with 3/8-24
whip mount. Sectioned tubing and telescopic whip tip. SWR<1.3:1 |
75ohm Resistor with 48" Whip.
Bonnie KQ6XA |
-26.34 |
4.2ft |
7x1x1 |
<1 |
|
Pedestrian/Portable.
75 ohm 5W resistor across BNC connector, in plastic box with 3/8-24
whip mount. Telescopic whip tip. SWR<1.3:1 |
