ADVANCED LESSON 41logomidi2.gif


LEARNING  OBJECTIVES and NOTES
Transmitter Interference 2
4h.4 Recall that unwanted emissions may be caused by parasitic oscillation and/or self oscillation and identify suitable remedies.
A further form of unwanted radiation from a transmitter are parasitic or self oscillation or spurious oscillations
These are usually above the operating frequency and occur because a length of wire and a capacitor just happen to oscillate, or because there is feedback from one part of a circuit to another. These can be very powerful and cause severe interference. They can be reduced by:
  • keeping connecting wires as short as possible
  • screening different sections
  • using adequate decoupling to keep RF out of the power supply
  • Using ferrite beads threaded on the leads of transistors to provide a high impedance to RF
  • Reduce component lead lengths (surface mount components are ideal)
  • Re arrange circuits layouts to reduce the length of RF leads.
  • In valve PAs by inserting 50 ohm resistors in the anode lead close up to the cap. A wire choke can also be wound around the resistor.
  • Keep earth leads short

4h.5 Understand that over modulation causes harmonics (of the modulating signal), which may result in excessive bandwidth.

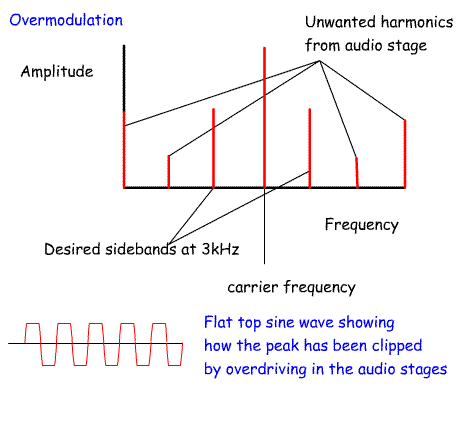

If the audio stage of a transmitter is over driven and we look at the image on an oscilloscope, the sine wave will have flat tops. This in turn will produce audio harmonics.
For example if normal speech has an upper limit of 3kHz an overmodulated signal will have harmonics at 6, 9, 12 , 15 kHz etc.
When this is used to modulate an RF wave the RF signal will have sidebands of 3, 6, 9, 12, 15 kHz etc. This will cause the signal to be wider and cause interference to adjacent channels. This applies to both AM and SSB transmissions


4h.6 Understand how frequency synthesisers may not produce the intended frequency. Identify remedial measures (out of lock inhibit).
In lesson 36 we looked at how a frequency symthesiser works.
There may be occasions when the VCO is so far off frequency that it is not possible to lock it on the desired frequency. As a safety precaution frequency synthesisers are fitted with an "out of lock" indicator. This will turn on a warning light and prevent the transmitter working so that transmission does not take place off frequency.
One cause of off frequency transmissions is the stability of the reference crystal. This needs to be checked regularly and precautions taken to stop it drifting / shifting off frequency.


External Power Amplifiers and Interference
4i.1 Understand the need to drive external power amplifiers with the minimum power required for full output and how overdriving may cause harmonics and/or spurious intermodulation products.
External power amplifiers are used to raise the 100Watts output of most transceivers to 400Watts. As with all amplifiers it is important that they are not over driven as this can lead to the production of harmonics and spurious emissions. Here are some tips for setting up and running a valve power amplifier:
  • Use a reduced duty cycle input to tune up an amplifier. For example an automatic CW keyer set at 40-50 wpm.
  • Set the driver to a low power output
  • To tune up set the keyer going and then set the amp to the manufacturers recommended settings.
  • Dip the anode current and then load the control for peak RF out. Repeat this several times until the maximum output power is reached.
  • Increase the drive level from the transceiver and readjust the tune and load control until the required power is achieved
  • Adjust the ALC control until the power out starts to go down and then turn it up slightly
  • Produce a table showing the settings for each band. This will make tuning up on a different band easier.
Unless the antenna has a 50 ohm impedance use an ATU between the linear and the antenna to match the 50 ohms to the antenna. This will also act to remove harmonics and spurious signals.
