Construction 2-Element (0,15m) 3-Element (0,80m 4-Element (1,00m) 4-Element (1,25m) 4-Element (1,50m) 5-Element (2,00m) 6-Element (2,60m)

2m-SSB/CW-12.5-Ohm-DK7ZB-Yagis with high gain, small bandwidth and good patterns

 The dimensions given for the Yagis in this chapter are for non-conductive booms like PVC. If the elements are mounted through or very close to a conductive boom, you need a proportional correction factor depending on the distance of the element to the boom. This assembly will cause an electrical “shortening” of the element, that means it is shorter. This must be corrected through a corresponding extension of the element. Günter Hoch, DL6WU, has found the correction factor for mounting through a conductive boom by a complex series of experimental measurements with the following formula: BC = 100%-factor (in wavelengths), BD = Boom diameter in wavelengths However, this factor is somewhat inaccurate and it is only an approximate value because it depends on the reactance of the respective element. The shorter directors have an increasing capacitive reactance and would correctly require a different correction value. To avoid these problems completely, you should assemble the elements so that no correction is necessary. The table gives the 100%-factor. Other mountings see the picture below.

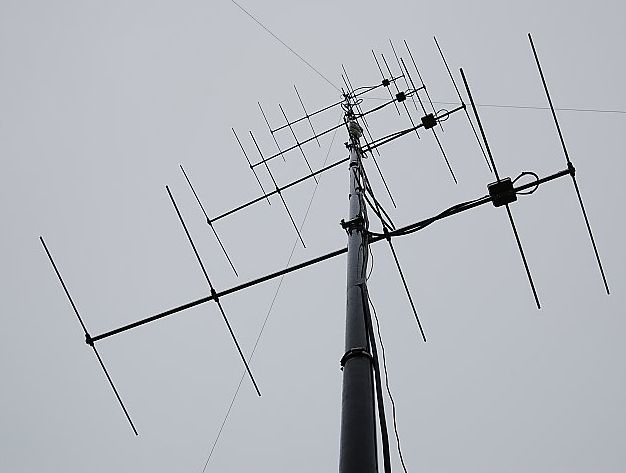

 The 4x5-El.-12,5-Ohm-Yagis with a Spider-Beam mast   at TM7T  1. Place in the QRP-Contest (Practical Wireless) 2011
 3x5-Element-12,5-Ohm-Yagis stacked by F/OT3T in the Practical Wireless Contest 2009 (3 W PEP are allowed!)

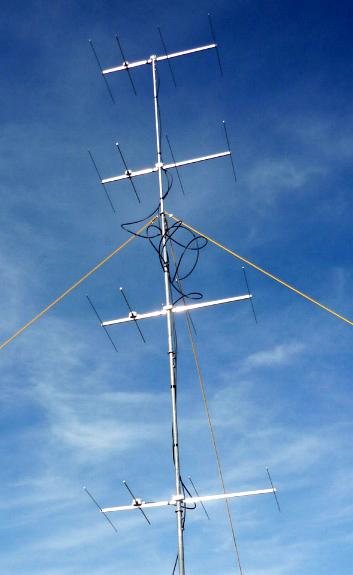

 With these Yagis you get the highest possible gain for the given boomlength.  Vertical stacked arrays have the best effenciency for contest-operation!   Left: The 4x4-El.-Array with the 1,5 m long 12,5-Ohm-Yagis by Luca,  IW3FQT
 Type/Boom Gain F/B 2-El-Yagi (0,15m) 4,5dBd 22dB 3-El-Yagi (0,80m) 7,2dBd 13dB 4-El-Yagi (1,00m) 7,5dBd 22dB 4-El-Yagi (1,25m) 8,2dBd 21dB 4-El-Yagi (1,50m) 8,8dBd 21dB 5-El-Yagi (2,00m) 9,5dBd 24dB 6-El-Yagi (2,60m) 10,2dBd 25dB

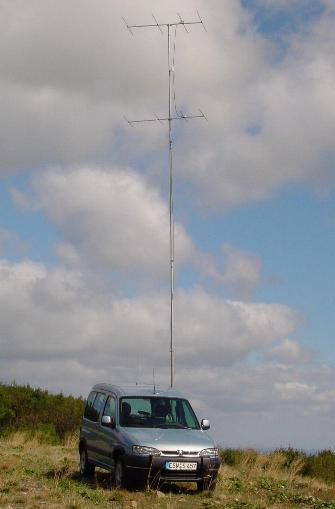

 For Yagis with a boom of >=1,5 lambda you should prefer 28-Ohm-Yagis, they have only 0,05dB less than the 12,5-Ohm-types with the same length, but have more bandwith and are less critical.   These Yagis were constructed as ultra-light, portable Yagis with extrem high gain. They have small bandwidth and are working from 144,0-144,8MHz with good SWR. For portable use it is an advantage, to have a small vertical radiation angle and a brought horizontal angle. Therefore it is highly recommended to stack these Yagis as groups. For stacking details of 2 or 4 antennas see the page with the 7-Element-Yagis. Of cause these yagis will give you a good performance for a base station, too!

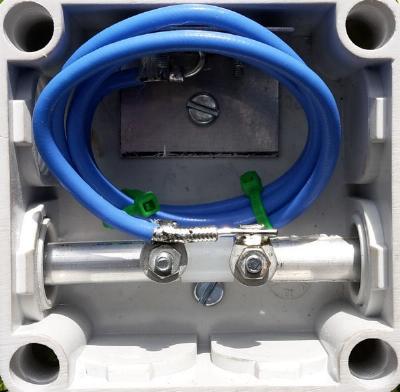

 This is a solution of Theo, PA1TK He is using 25-Ohm- PTFE-cable KTR-141 Here is the data-sheet of this coax-cable: LINK KTR-141 Mni tnx for the information, Theo!

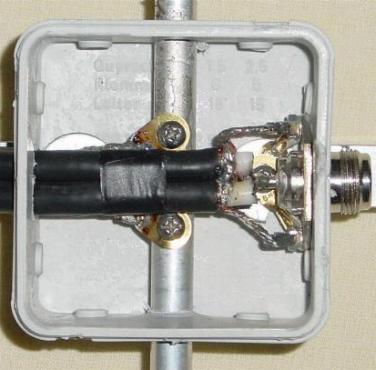

 The radiation resistance is 12.5 Ohm, to avoid losses you must work  carefully and look for the construction details. The match is made with 2xLambda/4-50-Ohm-cables in parallel. The 12,5-Ohm radiation resistance is transformed to the 50 Ohm feedpoint with the 12,5-Ohm-DK7ZB-match. The construction was made with "YO" and then fine-tuned with "EZNEC". This method is working exactly, you only have to look for the radiator length, no other correction is to be made. The parasitic elementes are mounted with the insulated clamps and a 3mm-screw, the radiator consists of 10x1mm-Aluminium tubes. No other fixing is allowed because this will cause severe detuning of the yagis! If you use homemade insulated clamps, the elements must be mounted 3-4mm above the boom. The boom is made of 15x15mm square aluminium. The connection screw/boom (electrical "zero") has no influence to the length of the elements, but any contact by mounting not insulated above or through the boom! After building the antennas you should measure the SWR, normally you must cut the tips of each side of the radiator about 1-2mm for SWR=1.0 at 144.3MHz. The given length of the radiator element is from tip to tip, including 10mm spacing for the insulated part. The radiator of the 2-, 3-, 4- and 5-Element- Yagis consists of two halves with an insulated rod (8mm) in the middle part.The given length of the radiator is from tip to tip, the insulated distance is 10-12mm in the middle part. The coax socket (BNC or better N-Type) must be grounded. With Aircell-7 you can run 1KW to a single Yagi. Use a good quality coax (not RG-58!). The length is 42cm (braid!) with H-155 (V=0,82), 44cm with Aircell-7 (V=0,85), with full PE-coax V=0,67 (34,5cm), with PTFE V=0,71 (37cm).
 Foam-PE V = 0,85 L = 44,0 cm Foam-PE V = 0,82 L = 42,5 cm Full-PE V = 0,66 L = 34,5 cm PTFE V = 0,7 L = 37,0 cm

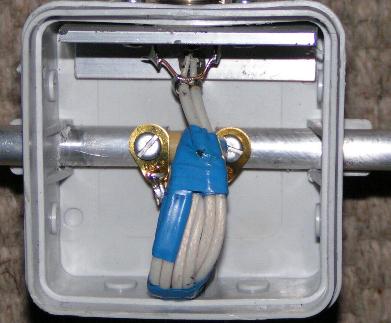

 The given length of the radiator element is from tip to tip, including 10mm spacing for the insulated part.This is the middle part of the radiator in the 2-, 3,- and 4-Element-Yagis.The matching cable here is PTFE-coax (RG-188) and fits completely in the box (L=37,0cm). The insulator between the two element-halves is made by the rods of a broken tent of my children..... The power you can handle with this PTFE-cable is 250Watts, with four Yagis stacked you can run 1KW.

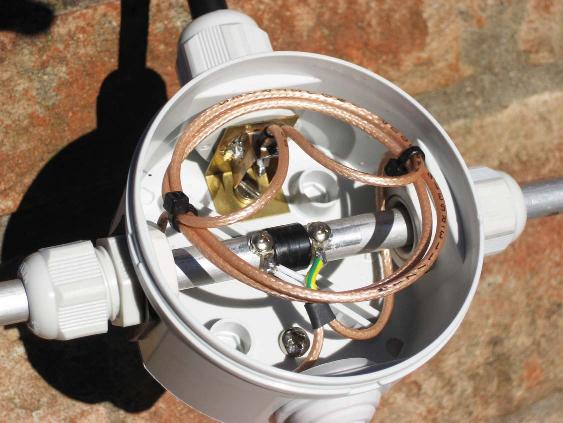

 The radiator box with PTFE-cable by Luca, IW3FQT
 The mounting clamp for the boom: Made with an automotive exhaust clamp, cheap and simple.Do not use this bracket for the 2-Element-Yagi, the electro- magnetic field between radiator and the the very close spaced director will be disturbed!
 The elements are mounted insulated with Polyamid- clamps (Konni), the screw in the electrical "zero-point" has no influence to the length of the element and is connected to the boom. "Insulated" means, that no part of the element is "short-cut", e.g. by the metal of the boom.
 Another method with homemade clamps (cheap and easy) by Adam, 9A4QV. See further Details on his homepage:        http://www.qsl.net/9a4qv/Antenna_insulators.htm
