GPS Module
May 2002

I got a Conexant Jupiter TU30-D140 GPS module from a friend. It uses a OSX socket for the antenna connection, which I changed to a SMA connector. I put it in a small metal case and added a switching power supply and some interface circuitry. It now delivers NMEA sentences in my car.

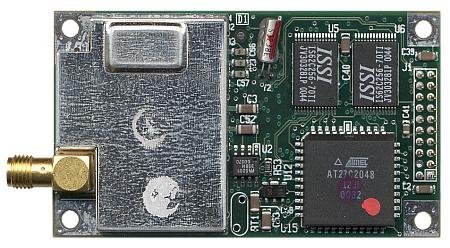

Jupiter module
Conexant (ex Rockwell) Jupiter TU30-D140

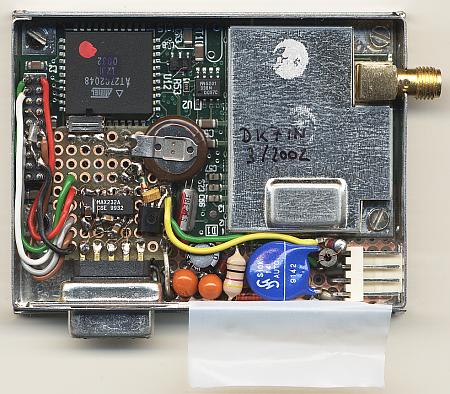

GPS receiver
GPS receiver
