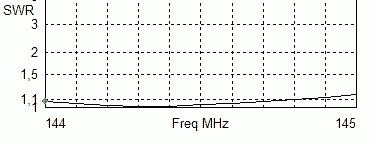

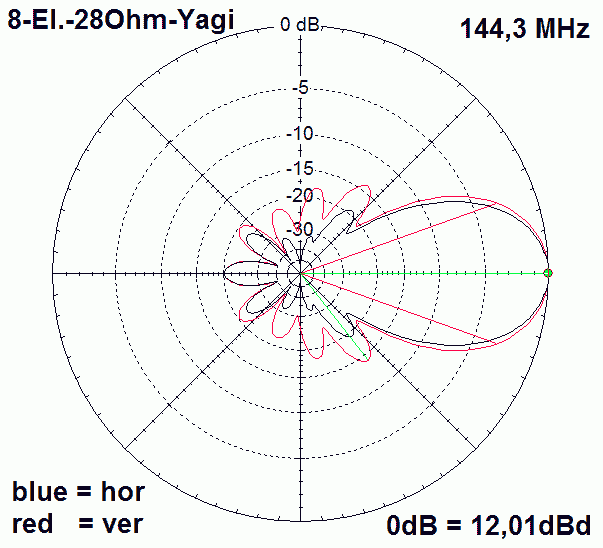

Gain 12,0dBd, F/B 20dBd Boom 4,40m, Broadband Stacking distance 3,20m 3dB-angles: 35,8° hor, 39,4° ver
|
| Details | 2-El.-2m | 3-El.-2m | 4-El.-2m | 5-El.-2m | 6-El.-2m |
| 7-El.-2m | 7-El.-70cm | 9-El.-70cm | 10-El.-70cm | 12-El.-70cm | 14-El.-70cm |
| Stacked 5-El-2m 25-Ohm new | 7-El.-2m 25+ 28-Ohm new | 8-El.-2m 28-Ohm | 10-El.-70cm 28-Ohm |
The 8-Element-28-Ohm-Leightweight-Yagi for 2m
|
Gain 12,0dBd, F/B 20dBd Boom 4,40m, Broadband Stacking distance 3,20m 3dB-angles: 35,8° hor, 39,4° ver
|
The 8-El.-28-Ohm-Yagi has a 20x1,5mm-aluminium-boom. The coax socket ist grounded to the boom with a screw and an aluminium angle.
 |

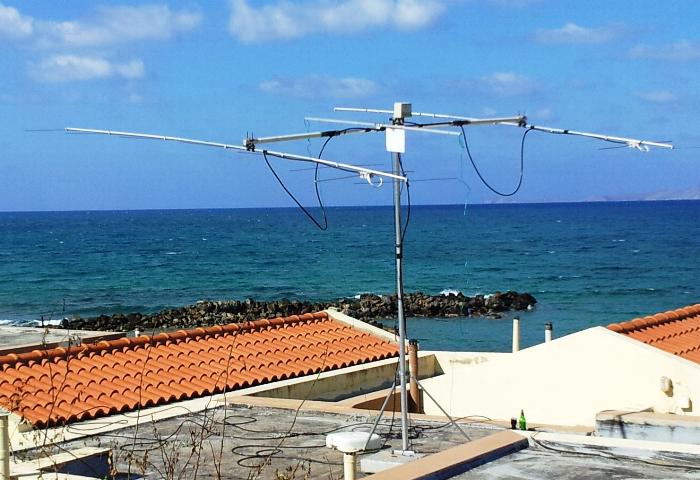

2x8-El.-28-Ohm- EME group, built by Frank, DH7FB EME-DXpedition to SV9 (10/2013) 155 QSOs, at 3 moon orbits. |
|
Frank, DH7FB with the complete EME-antenna system: All parts, including the mast, has a weight of 12 kg as flight luggage! |
 |
 |
The 2x8-El.-28-Ohm- Leightweight-Group DK7ZB has used this antennas in several regional VHF-Contests (SSB and CW). Results: Some first places! |
|
El. |
Ref |
Rad
(8 mm) |
Dir
1 |
Dir
2 |
Dir
3 |
Dir
4 |
Dir
5 |
Dir
6 |
|
Pos. |
0
mm |
395
mm |
705
mm |
1325
mm |
2040
mm |
2835
mm |
3670
mm |
4400
mm |
|
L(3,2
mm) |
1012
mm |
978
mm |
961
mm |
941
mm |
922
mm |
912
mm |
912
mm |
907
mm |
|
L
( 4 mm) |
1010
mm |
977
mm |
958
mm |
936
mm |
917
mm |
907
mm |
907
mm |
902
mm |
