The 10-Element-50-Ohm-Leightweight-Yagi for 70cm

Gain 12,5dBd, F/B >25dB

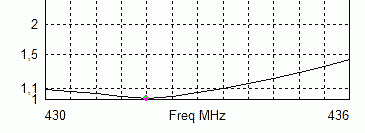

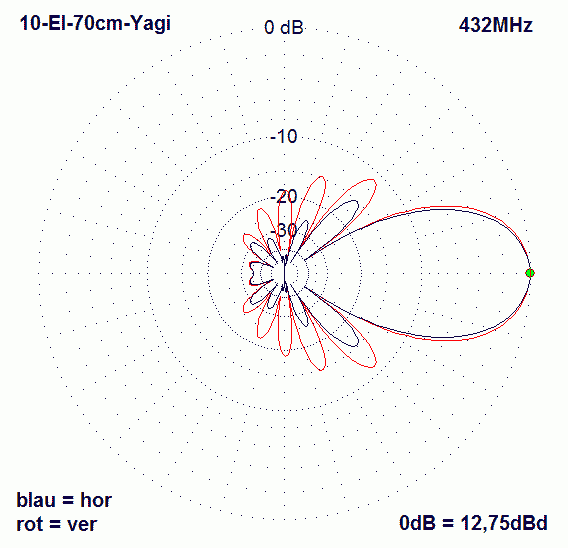

3dB-angles: hor 32,6° , ver 35,0°

Vertical stacking distance 1,45m

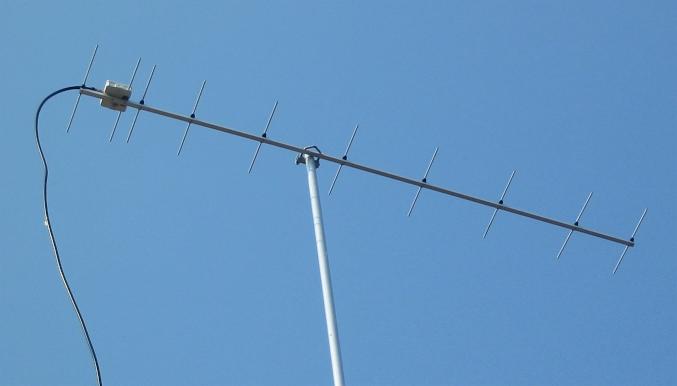

The 10-El.-Yagi built by

 Michal,

 SP5TWA



with 6-mm-

Elements

  Position Length (4 mm) Length (5 mm) Length (6 mm)
Reflector 0 mm 338 mm 337 mm 335 mm
Radiator 145 mm 328 mm 325 mm 323 mm
Director 1 200 mm 308 mm 305 mm 302 mm
Director 2 375 mm 297 mm 294 mm 291 mm
Director 3 625 mm 291 mm 288 mm 285 mm
Director 4 910 mm 288 mm 285 mm 282 mm
Director 5 1200 mm 285 mm 282 mm 279 mm
Director 6 1485 mm 285 mm 282 mm 279 mm
Director 7 1770 mm 289 mm 286 mm 283 mm
Director 8 1985 mm 285 mm 282 mm 279 mm
