4-Element-12.5-Ohm-2m-Yagi for SSB/CW

Boom 1,00m

F/B > 20dB, stacking distance 1,80m

  Gain 3dB hor 3dB ver
1x4 El 7,5dBd 54,4° 72,8°
2x4 El 10,6dBd 54,8° 30,8°
4x4 El 13,7dBd 54,8° 15,0°

Element-Positions

Ref Rad D1 D2
0mm 200mm 505mm 985mm

Element-Lengths

Diameter Ref Rad (10mm) D1 D2
6mm 1068mm 985mm  961mm 930mm
8mm 1066mm 985mm  954mm 921mm

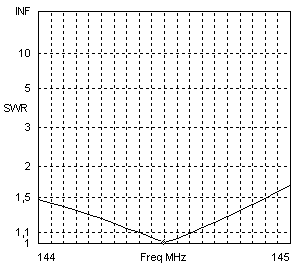

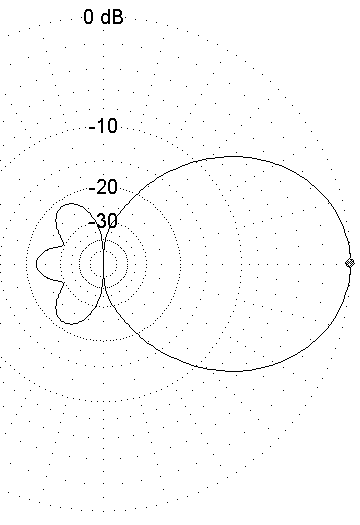

Single Yagi, horizontal pattern, 0dB = 7,54dBd

 (144,3 MHz)

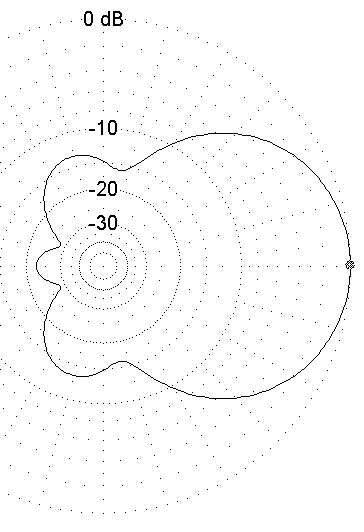

Single Yagi, vertical pattern, 0dB = 7,54dBd

 (144,3 MHz)

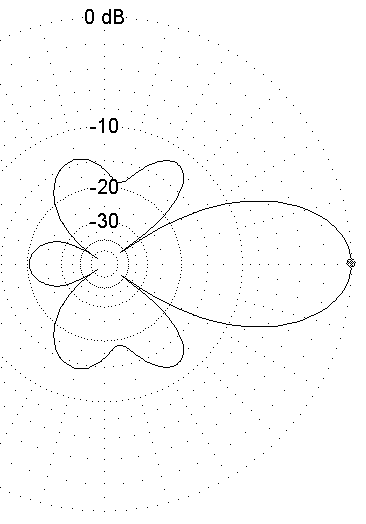

2xYagi, vertical pattern, 0dB = 10,68dBd

(144,3MHz)

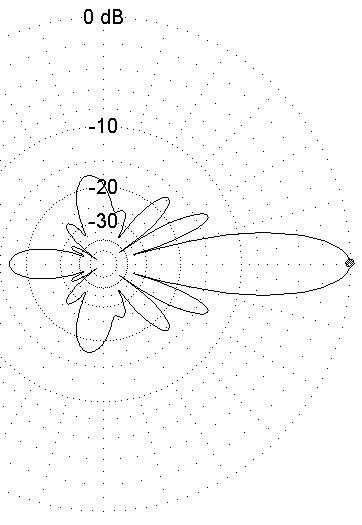

4xYagi, vertical pattern, 0dB = 13,76dBd

(144,3 MHz)
