4-Element-12.5-Ohm-2m-Yagi for SSB/CW

Boom 1,25m

F/B > 20dB, stacking distance 2,10m

Short data for a single Yagi and vertically stacked Yagis:

  Gain 3dB hor 3dB ver
1x4 El 8,2dBd 51,4° 65,4°
2x4 El 11,0dBd 51,6° 25,0°
4x4 El 14,0dBd 51,8° 12,0°

Element-Positions

Ref Rad D1 D2
0mm 260mm 720mm 1245mm

Element-Lengths

Diameter Ref Rad  D1 D2
4mm 1036mm 972mm (6mm) 955mm 934mm
6mm 1032mm 973mm (6mm) 945mm 924mm
8mm 1030mm 968mm (8mm) 937mm 916mm

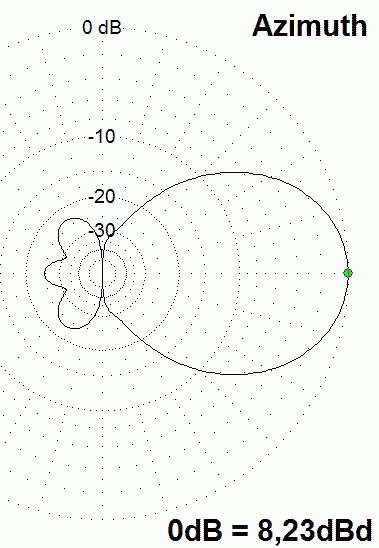

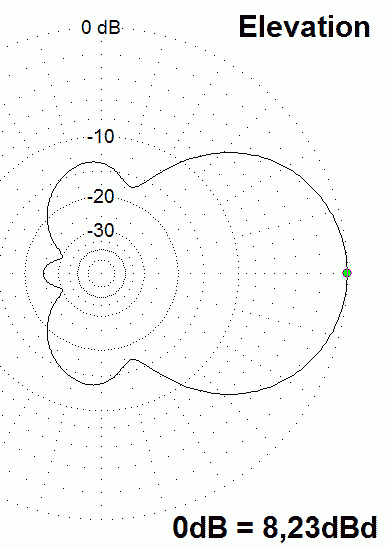

Horizontal and vertical pattern for a single Yagi at 144,3MHz

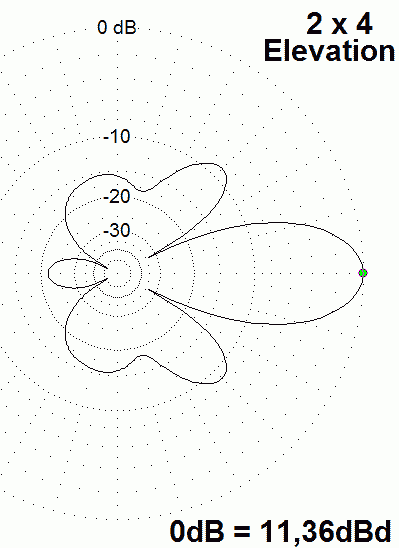

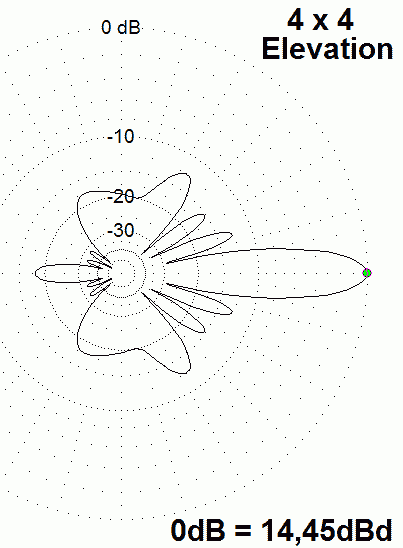

Vertical patterns for stacked Yagis (4 over4 and 4 over 4 over 4 over 4) at 144,3MHz, gain without stacking losses for cables and connections
