"Geomagnetic Storms" are disturbances in the Earth's magnetic field, that may disrupt HF communication and trigger auroras .
Illustration of Geomagnetic storms as seen from earth close to polar regions (public domain images):


What are the impacts of geomagnetic storms?
Major magnetic storms can disrupt HF propagation by changing the distribution of free electrons in the ionosphere.
Storms have three phases: initial, main, and recovery.
- Solar X-Ray radiation bursts known as solar flares:
 A Solar Flare courtesy of NOAA, May 2023
- Solar wind containing charged particles colide with Earth's Magnetosphere.
Significant events are named "Coronal Mass Ejections" (CMEs):
A CME is a shock-wave of Solar Energetic Particles emitted by the sun.

When a CME enters the magnetosphere, it causes a Geomagnetic Storm

How are geomagnetic storms defined?
A geomagnetic storms are defined by changes in the "Disturbance-storm time" (Dst) index. The Dst index estimates the globally averaged change of the horizontal component of the Earth's magnetic field at the magnetic equator based on measurements from a few magnetometer stations. Dst is computed once per hour and reported in near-real-time.
How are geomagnetic storms classified?
At quiet time (no storm) ranges from +20 to −20 nano-Tesla (nT). The magnitudes of storms are classified as moderate (from 50 nT to 100 nT), intense (from 100 nT to 250 nT), or super-storm (above 250 nT).
How are geomagnetic storms quantified?
The Kp index quantifies the geomagnetic disturbances, "correlating with G-scale".

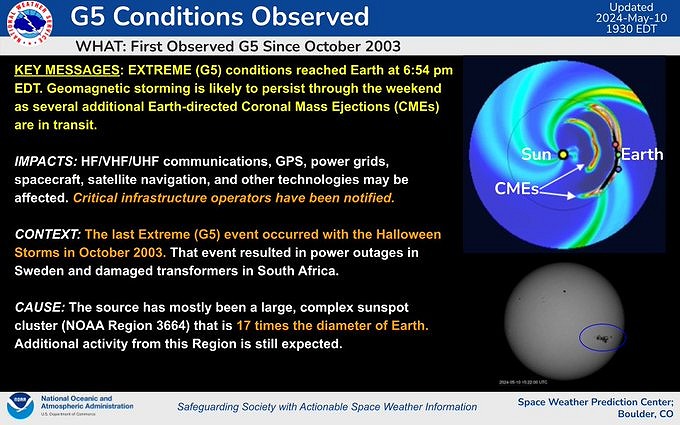

Example: Alerting about G5 Storm, May 10 2024

Geomagnetic Storms from May 11 to May 13, 2024
Observed K index

Observed A index

Kp Index
References:
- May 2024 Solar Storms Wikipedia
- Geomagnetic Storms May 2024 Duckduckgo
|
