SSTV
NetTime is a Simple Network Time Protocol (SNTP) client"Slow-scan television"
Frequencies
(MHz) (FM) 430.950, 1.25, (FM), 223.850, 145.500, 145.600, 144.550,,50.680, 50.950,
USB dial (MHz): 10m: 28.680, 12m: (USB) 24.975, 15m: (USB), 21.340, 17m: (USB) 18.160, 20m: (USB) 14.230,
40m: (LSB) 7.171 MHz, 80m: (LSB) 3.730, 160m: (LSB) 18.90.
(MHz) (FM) 430.950, 1.25, (FM), 223.850, 145.500, 145.600, 144.550,,50.680, 50.950,
USB dial (MHz): 10m: 28.680, 12m: (USB) 24.975, 15m: (USB), 21.340, 17m: (USB) 18.160, 20m: (USB) 14.230,
40m: (LSB) 7.171 MHz, 80m: (LSB) 3.730, 160m: (LSB) 18.90.
The most popular modes of SSTV are Robot, Scottie, and Martin. A technical term for SSTV is narrowband television.
Analog broadcast television requires at least 6 MHz wide channels, because it transmits 25 or 30 picture frames per second
(in the NTSC, PAL or SECAM color systems), but SSTV usually only takes up to a maximum of 3 kHz of bandwidth.
It is a much slower method of still picture transmission, usually taking from about eight seconds to a couple of minutes,
depending on the mode used, to transmit one image frame.

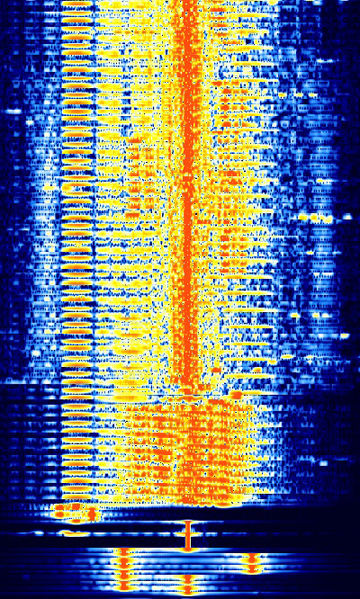

SSTV uses analog frequency modulation, in which every different value of brightness in the image gets a different audio frequency.
In other words, the signal frequency shifts up or down to designate brighter or darker pixels, respectively.
Color is achieved by sending the brightness of each color component (usually red, green and blue) separately.

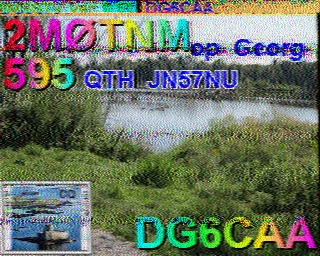

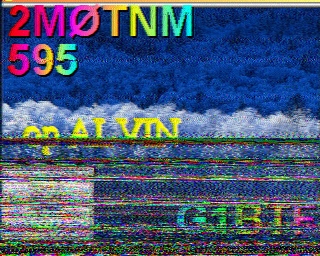

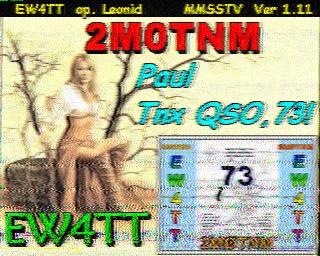

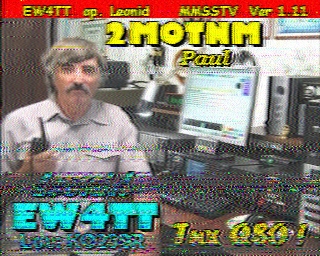

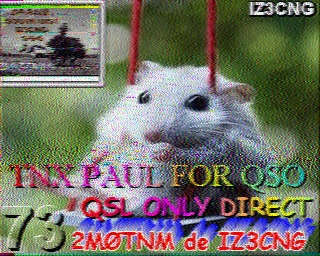

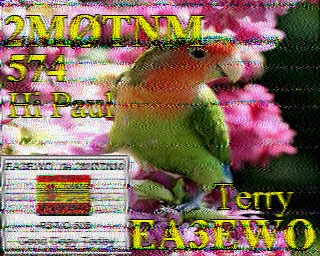

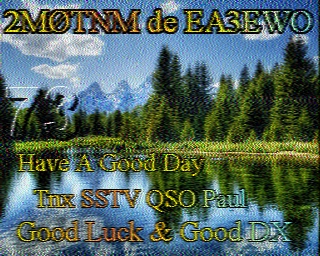

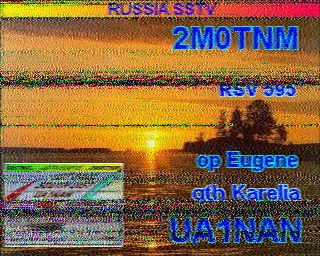

A feed of my last receved SSTV images can be viewed from the live feed link above.
Helpfull tutorials
The Wonderful World of SSTV

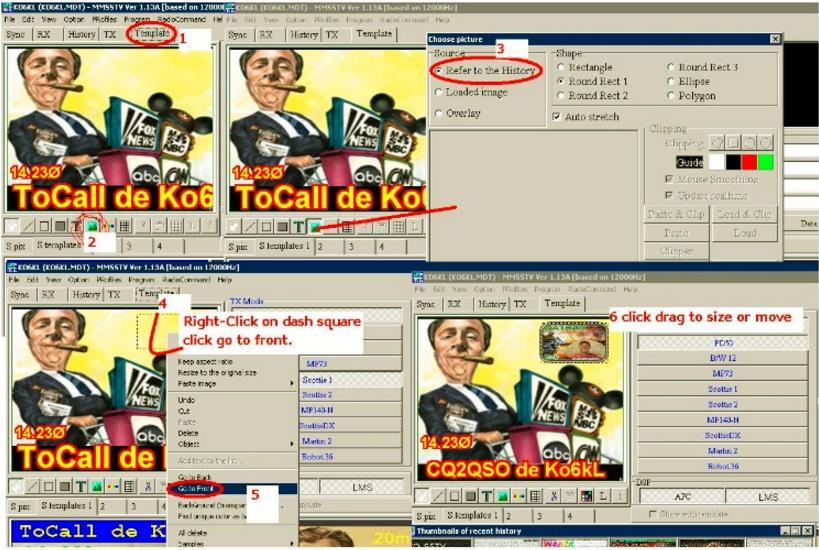

MMSSTV How-To’s
◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►◄2MØTNM►
WSPR
"Weak Signal Propagation Reporter"
Frequencies
USB dial (MHz): 0.136, 0.4742, 1.8366, 3.5926, 5.2872, 7.0386, 10.1387, 14.0956, 18.1046, 21.0946, 24.9246, 28.1246, 50.293, 70.091, 144.489, 432.300, 1296.500
WSPR (pronounced "whisper") stands for "Weak Signal Propagation Reporter". It is a computer program used for
weak-signal radio communication between amateur radio operators. The program was initially written by Joe Taylor, K1JT,
but is now open source and is developed by a small team. The program is designed for sending and receiving low-power transmissions
to test propagation paths on the MF and HF bands.
WSPR implements a protocol designed for probing potential propagation paths with low-power transmissions.
Transmissions carry a station's callsign, Maidenhead grid locator, and transmitter power in dBm.
The program can decode signals with S/N as low as -28 dB in a 2500 Hz bandwidth. Stations with internet access can automatically upload

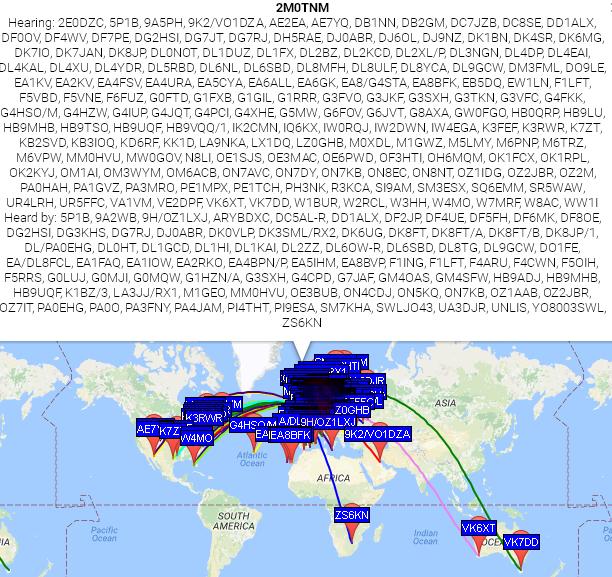

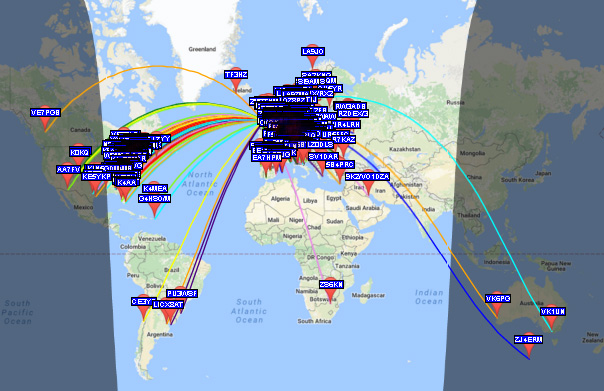

their reception reports to a central database called WSPRnet, which includes a mapping facility.
If you are using one of the current versions of WSPRs in the WSJT-x suit of weak signal programs then the process to calibrate
your TX power goes something like this. Adjust the power control right side of the WSPR screen to max 0db.
Press tune and adjust the power control on the rig to 10 watts output. If the output is higher or lower or the ALC indicates,
then you adjust the sound card Line output slider to achieve 10 watts exactly with No ALC showing.
If all is set correctly the 0db power control should now be correctly calibrated. If you now adjust the calibrated slider down to -10db
your RF Power output should now be 1 Watt. The db calibrations are quite accurate so
-3 db should be 5 watts, -6 db 2.5 watts, -10 db 1 watt. -20 db 0.1 watt -30 db 0.01 watts.
Sample of Spot Database reports 27 dBm 500 mW
Timestamp Call MHz SNR Drift Grid Pwr Reporter RGrid km az
2017-03-26 11:46 2M0TNM 7.040100 -5 1 IO67hc 0.5 G3ZIL IO90hw 789 148
2017-03-26 11:46 2M0TNM 7.040101 -7 2 IO67hc 0.5 G4CPD IO94hc 503 129
2017-03-26 11:46 2M0TNM 7.040130 -12 1 IO67hc 0.5 G1RRR IO90cu 784 150
2017-03-26 11:46 2M0TNM 7.040116 -14 2 IO67hc 0.5 G4HZX IO91 748 144
2017-03-26 11:46 2M0TNM 7.040110 -13 1 IO67hc 0.5 G4DCP IO90lv 804 146
2017-03-26 11:46 2M0TNM 7.040113 -26 2 IO67hc 0.5 G7PKG IO94ue 550 123
2017-03-26 11:46 2M0TNM 7.040102 0 1 IO67hc 0.5 2W0DOE IO81jt 647 154
2017-03-26 11:46 2M0TNM 7.040102 -13 1 IO67hc 0.5 G3OVH IO92jp 633 139
2017-03-26 11:46 2M0TNM 7.040103 -21 0 IO67hc 0.5 GW4HZA IO91jk 746 145
2017-03-26 11:46 2M0TNM 7.040100 -20 1 IO67hc 0.5 2E0DSD IO91of 781 144
2017-03-26 11:46 2M0TNM 7.040106 -20 1 IO67hc 0.5 M0XDK IO92ne 688 140
2017-03-26 11:46 2M0TNM 7.040100 -16 1 IO67hc 0.5 G4DJB IO91ph 776 143
2017-03-26 11:46 2M0TNM 7.040109 -11 1 IO67hc 0.5 2E0FSI IO90tu 831 144
2017-03-26 11:10 2M0TNM 14.097115 -19 2 IO67hc 0.5 DL0HT JO43jb 1119 107
2017-03-26 11:10 2M0TNM 14.097184 -25 4 IO67hc 0.5 DL1HI JO52ho 1251 106
2017-03-26 11:10 2M0TNM 14.097107 -26 2 IO67hc 0.5 DL1GKK JN37vx 1437 128
2017-03-26 11:10 2M0TNM 14.097089 +8 1 IO67hc 0.5 HB9ADJ JN36li 1544 135
2017-03-26 11:10 2M0TNM 14.097106 -16 3 IO67hc 0.5 IK1NET JN34su 1709 136
2017-03-26 11:10 2M0TNM 14.097109 -16 2 IO67hc 0.5 F59706 JN07th 1247 147
2017-03-26 11:10 2M0TNM 14.097104 -13 2 IO67hc 0.5 W1GJM FN42di 4705 278
2017-03-26 11:10 2M0TNM 14.097105 -6 3 IO67hc 0.5 W4MO EL86 6710 274
2017-03-26 11:10 2M0TNM 14.097109 -26 3 IO67hc 0.5 W4MO EL87 6622 274
2017-03-26 11:10 2M0TNM 14.097136 -12 3 IO67hc 0.5 IU5DAH JN53ha 2013 133
2017-03-26 11:10 2M0TNM 14.097104 -22 1 IO67hc 0.5 DG7RJ JN58th 1602 119
2017-03-26 11:10 2M0TNM 14.097105 -8 3 IO67hc 0.5 F5LHF JN25em 1520 143
2017-03-26 11:10 2M0TNM 14.097108 -26 1 IO67hc 0.5 F5OIH JN06ci 1303 153
2017-03-26 11:10 2M0TNM 14.097127 -22 2 IO67hc 0.5 K3EA FN20of 5054 278
2017-03-26 11:10 2M0TNM 14.097096 -19 3 IO67hc 0.5 KK1D FN31 4851 278
2017-03-26 11:10 2M0TNM 14.097089 -11 3 IO67hc 0.5 DL3GAK JN48xe 1525 123
2017-03-26 11:10 2M0TNM 14.097103 -7 1 IO67hc 0.5 OE3KFB JN78wl 1820 112
2017-03-26 11:10 2M0TNM 14.097163 -22 3 IO67hc 0.5 DF5FH JO42um 1203 108
2017-03-26 11:10 2M0TNM 14.097116 -15 2 IO67hc 0.5 K3RWR FM18qi 5313 278
2017-03-26 11:10 2M0TNM 14.097102 -13 3 IO67hc 0.5 IZ5HML JN53ha 2013 133
2017-03-26 11:10 2M0TNM 14.097113 -24 0 IO67hc 0.5 W1BUR FN42ki 4670 278
2017-03-26 11:10 2M0TNM 14.097109 -27 2 IO67hc 0.5 DK7FD JO41qi 1258 113
2017-03-26 11:10 2M0TNM 14.097107 -3 3 IO67hc 0.5 EA4GPZ IN80do 1854 170
2017-03-26 10:58 2M0TNM 7.040101 -4 1 IO67hc 0.5 G3ZIL IO90hw 789 148
2017-03-26 10:58 2M0TNM 7.040129 -27 1 IO67hc 0.5 DK3SML/RX2 JN49sf 1421 121
2017-03-26 10:58 2M0TNM 7.040099 -22 1 IO67hc 0.5 PI4THT JO32kf 1062 115
2017-03-26 10:58 2M0TNM 7.040142 -23 1 IO67hc 0.5 DL1HI JO52ho 1251 106
2017-03-26 10:58 2M0TNM 7.040108 -25 1 IO67hc 0.5 M0IGK IO91mk 755 144
2017-03-26 10:58 2M0TNM 7.040125 -11 1 IO67hc 0.5 F5OIH JN06ci 1303 153
2017-03-26 10:58 2M0TNM 7.040101 -15 1 IO67hc 0.5 2E0DSD IO91of 781 144
2017-03-26 10:58 2M0TNM 7.040106 -21 1 IO67hc 0.5 DL1KAI JO42vj 1215 108
2017-03-26 10:58 2M0TNM 7.040101 -6 1 IO67hc 0.5 G4DJB IO91ph 776 143
2017-03-26 10:58 2M0TNM 7.040112 -11 1 IO67hc 0.5 G4DCP IO90lv 804 146
2017-03-26 10:58 2M0TNM 7.040110 -26 1 IO67hc 0.5 DF8OE JO42jr 1138 108
2017-03-26 10:58 2M0TNM 7.040130 -22 1 IO67hc 0.5 G1RRR IO90cu 784 150
2017-03-26 10:58 2M0TNM 7.040131 -25 0 IO67hc 0.5 DF5FH JO42um 1203 108
2017-03-26 10:58 2M0TNM 7.040112 -7 2 IO67hc 0.5 G3OVH IO92jp 633 139
2017-03-26 10:58 2M0TNM 7.040112 -14 1 IO67hc 0.5 ON5KQ JO10os 986 131
2017-03-26 10:58 2M0TNM 7.040107 -17 1 IO67hc 0.5 M0XDK IO92ne 688 140
2017-03-26 10:58 2M0TNM 7.040111 -26 1 IO67hc 0.5 LA9JO JP99gb 1836 33
2017-03-26 10:58 2M0TNM 7.040112 -9 1 IO67hc 0.5 G4HZX IO91 748 144
2017-03-26 10:46 2M0TNM 7.040107 -17 1 IO67hc 0.5 M0XDK IO92ne 688 140
2017-03-26 10:46 2M0TNM 7.040101 -19 1 IO67hc 0.5 G8AXA JO01ai 800 140
2017-03-26 10:46 2M0TNM 7.040101 -9 1 IO67hc 0.5 G3ZIL IO90hw 789 148
2017-03-26 10:46 2M0TNM 7.040109 -19 1 IO67hc 0.5 2E0FSI IO90tu 831 144
2017-03-26 10:46 2M0TNM 7.040101 -17 1 IO67hc 0.5 2E0DSD IO91of 781 144
2017-03-26 10:46 2M0TNM 7.040111 -15 1 IO67hc 0.5 G4HZX IO91 748 144
2017-03-26 10:46 2M0TNM 7.040101 -5 1 IO67hc 0.5 G4DJB IO91ph 776 143
2017-03-26 10:46 2M0TNM 7.040083 -21 1 IO67hc 0.5 M1GEO JO02ok 756 130
2017-03-26 10:46 2M0TNM 7.040101 -10 1 IO67hc 0.5 G4IKZ JO02af 721 136
2017-03-26 10:46 2M0TNM 7.040117 -16 1 IO67hc 0.5 DG2HSI JO51mr 1327 109
2017-03-26 10:46 2M0TNM 7.040130 -17 1 IO67hc 0.5 G1RRR IO90cu 784 150
2017-03-26 10:46 2M0TNM 7.040103 -14 1 IO67hc 0.5 GW4HZA IO91jk 746 145
2017-03-26 10:46 2M0TNM 7.040107 -9 2 IO67hc 0.5 G3OVH IO92jp 633 139
2017-03-26 10:46 2M0TNM 7.040113 -16 1 IO67hc 0.5 G4DCP IO90lv 804 146
2017-03-26 10:46 2M0TNM 7.040105 -14 1 IO67hc 0.5 G8EPA IO91vt 748 139
2017-03-26 10:46 2M0TNM 7.040116 -19 1 IO67hc 0.5 G4FBA IO93lu 538 130
2017-03-26 10:36 2M0TNM 7.040101 -3 1 IO67hc 0.5 G3ZIL IO90hw 789 148
2017-03-26 10:36 2M0TNM 7.040100 -2 1 IO67hc 0.5 G4DJB IO91ph 776 143
2017-03-26 10:36 2M0TNM 7.040202 -29 1 IO67hc 0.5 2W0DOE IO81jt 647 154
2017-03-26 10:36 2M0TNM 7.040107 -23 1 IO67hc 0.5 M0XDK IO92ne 688 140
2017-03-26 10:36 2M0TNM 7.040103 -7 0 IO67hc 0.5 DK6UG JN49cm 1330 123
2017-03-26 10:36 2M0TNM 7.040102 -6 1 IO67hc 0.5 2W0DOE IO81jt 647 154
2017-03-26 10:36 2M0TNM 7.040002 -27 1 IO67hc 0.5 2W0DOE IO81jt 647 154
2017-03-26 10:36 2M0TNM 7.040112 -16 1 IO67hc 0.5 G4DCP IO90lv 804 146
2017-03-26 10:36 2M0TNM 7.040083 -26 1 IO67hc 0.5 M1GEO JO02ok 756 130
2017-03-26 10:36 2M0TNM 7.040102 -6 1 IO67hc 0.5 G3OVH IO92jp 633 139
2017-03-26 10:36 2M0TNM 7.040104 -16 1 IO67hc 0.5 G8EPA IO91vt 748 139
2017-03-26 10:36 2M0TNM 7.040097 -16 1 IO67hc 0.5 TONDA JN69hx 1532 113
2017-03-26 10:36 2M0TNM 7.040129 -19 1 IO67hc 0.5 G1RRR IO90cu 784 150
2017-03-26 10:36 2M0TNM 7.040110 -7 1 IO67hc 0.5 G4HZX IO91 748 144
2017-03-26 10:36 2M0TNM 7.040100 -15 1 IO67hc 0.5 2E0DSD IO91of 781 144
2017-03-26 10:24 2M0TNM 7.040107 -20 0 IO67hc 0.5 M0XDK IO92ne 688 140
2017-03-26 10:24 2M0TNM 7.040101 -5 1 IO67hc 0.5 G3ZIL IO90hw 789 148
2017-03-26 10:24 2M0TNM 7.040129 -16 1 IO67hc 0.5 G1RRR IO90cu 784 150
2017-03-26 10:24 2M0TNM 7.040100 -5 1 IO67hc 0.5 G4DJB IO91ph 776 143
2017-03-26 10:24 2M0TNM 7.040110 -4 1 IO67hc 0.5 G4HZX IO91 748 144
2017-03-26 10:24 2M0TNM 7.040104 -20 1 IO67hc 0.5 G8EPA IO91vt 748 139
2017-03-26 10:24 2M0TNM 7.040100 -7 0 IO67hc 0.5 G3OVH IO92jp 633 139
2017-03-26 10:24 2M0TNM 7.040102 -10 1 IO67hc 0.5 2W0DOE IO81jt 647 154
2017-03-26 10:12 2M0TNM 7.040106 -23 1 IO67hc 0.5 M0XDK IO92ne 688 140
2017-03-26 10:12 2M0TNM 7.040101 +1 1 IO67hc 0.5 G3ZIL IO90hw 789 148
2017-03-26 10:12 2M0TNM 7.040100 -4 1 IO67hc 0.5 G4DJB IO91ph 776 143
2017-03-26 10:12 2M0TNM 7.040102 0 1 IO67hc 0.5 2W0DOE IO81jt 647 154
2017-03-26 10:12 2M0TNM 7.040111 -15 1 IO67hc 0.5 ON5KQ JO10os 986 131
2017-03-26 10:12 2M0TNM 7.040112 -15 1 IO67hc 0.5 G4DCP IO90lv 804 146
2017-03-26 10:12 2M0TNM 7.040100 -19 1 IO67hc 0.5 2E0DSD IO91of 781 144
2017-03-26 10:12 2M0TNM 7.040129 -16 1 IO67hc 0.5 G1RRR IO90cu 784 150
2017-03-26 10:12 2M0TNM 7.040109 -14 1 IO67hc 0.5 G4HZX IO91 748 144
2017-03-26 09:48 2M0TNM 10.140211 -15 2 IO67hc 0.5 DL0HT JO43jb 1119 107
2017-03-26 09:48 2M0TNM 10.140178 -22 2 IO67hc 0.5 LX1DQ JN39cq 1217 127
2017-03-26 09:48 2M0TNM 10.140198 -15 2 IO67hc 0.5 PI4THT JO32kf 1062 115
2017-03-26 09:48 2M0TNM 10.140196 -14 2 IO67hc 0.5 F/PE3ES JN28ux 1253 131
2017-03-26 09:48 2M0TNM 10.140214 -12 2 IO67hc 0.5 DL2ZZ JO31lo 1109 117
2017-03-26 09:48 2M0TNM 10.140214 -14 2 IO67hc 0.5 DG0OPK JO50gq 1368 114
2017-03-26 09:48 2M0TNM 10.140203 -18 2 IO67hc 0.5 DL8FCL JN49jx 1325 120
2017-03-26 09:48 2M0TNM 10.140219 -8 2 IO67hc 0.5 PI9ESA JO22fd 938 121
2017-03-26 09:48 2M0TNM 10.140204 -22 0 IO67hc 0.5 DK8FT JN58oe 1590 121
2017-03-26 09:48 2M0TNM 10.140205 -25 2 IO67hc 0.5 PA3CWQ JO21fm 985 124
2017-03-26 09:48 2M0TNM 10.140218 -12 2 IO67hc 0.5 DF2JP JO31hh 1112 119
2017-03-26 09:48 2M0TNM 10.140214 -20 1 IO67hc 0.5 DK3SML JN49sf 1421 121
2017-03-26 09:48 2M0TNM 10.140206 -20 1 IO67hc 0.5 DC5AL-R JO31lk 1120 118
2017-03-26 09:48 2M0TNM 10.140244 -13 1 IO67hc 0.5 DL1GCD JN48ar 1386 126
2017-03-26 09:48 2M0TNM 10.140200 -18 2 IO67hc 0.5 F/PE3ES JN28uw 1257 131
2017-03-26 09:48 2M0TNM 10.140203 -13 1 IO67hc 0.5 DJ0ABR JN68nt 1644 115
2017-03-26 09:48 2M0TNM 10.140203 -7 2 IO67hc 0.5 DK6UG JN49cm 1330 123
2017-03-26 09:48 2M0TNM 10.140207 -28 1 IO67hc 0.5 DL4EAI JO31je 1130 120
2017-03-26 09:48 2M0TNM 10.140210 -13 2 IO67hc 0.5 F1EHM JN17ki 1286 143
2017-03-26 09:48 2M0TNM 10.140196 0 2 IO67hc 0.5 ON7KO JO21ce 999 126
2017-03-26 09:48 2M0TNM 10.140210 -15 2 IO67hc 0.5 DL1KAI JO42vj 1215 108
2017-03-26 09:38 2M0TNM 10.140196 +1 2 IO67hc 0.5 ON7KO JO21ce 999 126
2017-03-26 09:38 2M0TNM 10.140211 -16 2 IO67hc 0.5 DL0HT JO43jb 1119 107
2017-03-26 09:38 2M0TNM 10.140196 -23 1 IO67hc 0.5 F/PE3ES JN28ux 1253 131
2017-03-26 09:38 2M0TNM 10.140198 -10 2 IO67hc 0.5 PI4THT JO32kf 1062 115
2017-03-26 09:38 2M0TNM 10.140213 -16 2 IO67hc 0.5 DG0OPK JO50gq 1368 114
2017-03-26 09:38 2M0TNM 10.140213 -13 2 IO67hc 0.5 DL2ZZ JO31lo 1109 117
2017-03-26 09:38 2M0TNM 10.140214 -16 2 IO67hc 0.5 DK3SML JN49sf 1421 121
2017-03-26 09:38 2M0TNM 10.140229 -25 2 IO67hc 0.5 DK7IO JN39nm 1276 125
2017-03-26 09:38 2M0TNM 10.140218 -10 2 IO67hc 0.5 PI9ESA JO22fd 938 121
2017-03-26 09:38 2M0TNM 10.140196 -8 0 IO67hc 0.5 F5OIH JN06ci 1303 153
2017-03-26 09:38 2M0TNM 10.140206 -21 2 IO67hc 0.5 DC5AL-R JO31lk 1120 118
2017-03-26 09:38 2M0TNM 10.140204 -21 2 IO67hc 0.5 DK8FT JN58oe 1590 121
2017-03-26 09:38 2M0TNM 10.140189 -25 2 IO67hc 0.5 LA3JJ/RX2 JO59bh 1051 69
2017-03-26 09:38 2M0TNM 10.140226 -26 1 IO67hc 0.5 DC9PI JO31 1118 118
2017-03-26 09:38 2M0TNM 10.140218 -17 2 IO67hc 0.5 DF2JP JO31hh 1112 119
2017-03-26 09:38 2M0TNM 10.140205 -25 2 IO67hc 0.5 PA3CWQ JO21fm 985 124
2017-03-26 09:38 2M0TNM 10.140207 -26 2 IO67hc 0.5 DK8FTB JN58oe 1590 121
2017-03-26 09:38 2M0TNM 10.140204 -4 2 IO67hc 0.5 DK6UG JN49cm 1330 123
2017-03-26 09:38 2M0TNM 10.140249 -24 2 IO67hc 0.5 LA9ZMA JO49 988 68
2017-03-26 09:38 2M0TNM 10.140210 -12 2 IO67hc 0.5 DL1KAI JO42vj 1215 108
2017-03-26 09:38 2M0TNM 10.140207 -27 2 IO67hc 0.5 DL4EAI JO31je 1130 120
2017-03-26 09:38 2M0TNM 10.140244 -14 1 IO67hc 0.5 DL1GCD JN48ar 1386 126
2017-03-26 09:38 2M0TNM 10.140203 -20 1 IO67hc 0.5 DL8FCL JN49jx 1325 120
2017-03-26 09:26 2M0TNM 7.040107 -11 2 IO67hc 0.5 M0XDK IO92ne 688 140
2017-03-26 09:26 2M0TNM 7.040101 -17 1 IO67hc 0.5 G4IKZ JO02af 721 136
2017-03-26 09:26 2M0TNM 7.040112 -15 1 IO67hc 0.5 LA9JO JP99gb 1836 33
2017-03-26 09:26 2M0TNM 7.040101 -1 1 IO67hc 0.5 G4DJB IO91ph 776 143
2017-03-26 09:26 2M0TNM 7.040128 -21 1 IO67hc 0.5 G1RRR IO90cu 784 150
2017-03-26 09:26 2M0TNM 7.040125 -9 1 IO67hc 0.5 F5OIH JN06ci 1303 153
2017-03-26 09:26 2M0TNM 7.040112 -12 1 IO67hc 0.5 ON5KQ JO10os 986 131
2017-03-26 09:26 2M0TNM 7.040102 -7 1 IO67hc 0.5 G3ZIL IO90hw 789 148
2017-03-26 09:26 2M0TNM 7.040079 -23 1 IO67hc 0.5 M1GEO JO02ok 756 130
2017-03-26 09:26 2M0TNM 7.040112 -18 1 IO67hc 0.5 G4DCP IO90lv 804 146
2017-03-26 09:26 2M0TNM 7.040109 -11 1 IO67hc 0.5 2E0FSI IO90tu 831 144
2017-03-26 09:26 2M0TNM 7.040103 -19 1 IO67hc 0.5 GW4HZA IO91jk 746 145
2017-03-26 09:26 2M0TNM 7.040108 -10 0 IO67hc 0.5 G4HZX IO91 748 144
2017-03-26 09:26 2M0TNM 7.040101 -18 1 IO67hc 0.5 2E0JFY IO83oo 485 141
2017-03-26 09:26 2M0TNM 7.040101 -9 1 IO67hc 0.5 G3OVH IO92jp 633 139
2017-03-26 09:26 2M0TNM 7.040128 -29 1 IO67hc 0.5 G4XCS IO80lr 763 156
2017-03-26 09:18 2M0TNM 14.097117 -17 0 IO67hc 0.5 IZ6BYY JN62wv 2174 127
2017-03-26 09:18 2M0TNM 14.097105 -9 2 IO67hc 0.5 DK8FT JN58oe 1590 121
2017-03-26 09:18 2M0TNM 14.097100 -16 2 IO67hc 0.5 UX0DL KN18 2229 102
2017-03-26 09:18 2M0TNM 14.097104 -15 3 IO67hc 0.5 IU1DZZ JN45hk 1701 133
2017-03-26 09:18 2M0TNM 14.097106 -17 2 IO67hc 0.5 F5LHF JN25em 1520 143
2017-03-26 09:18 2M0TNM 14.097105 -22 3 IO67hc 0.5 IZ5HML JN53ha 2013 133
2017-03-26 09:18 2M0TNM 14.097111 -20 3 IO67hc 0.5 OE1RPW JN88eg 1864 112
2017-03-26 09:18 2M0TNM 14.097110 -11 2 IO67hc 0.5 DK8FTB JN58oe 1590 121
2017-03-26 09:18 2M0TNM 14.097104 -25 1 IO67hc 0.5 DG7RJ JN58th 1602 119
2017-03-26 09:10 2M0TNM 14.097117 -16 0 IO67hc 0.5 IZ6BYY JN62wv 2174 127
2017-03-26 09:10 2M0TNM 14.097110 -24 3 IO67hc 0.5 OE1RPW JN88eg 1864 112
2017-03-26 09:10 2M0TNM 14.097105 -8 3 IO67hc 0.5 IK1NET JN34su 1709 136
2017-03-26 09:10 2M0TNM 14.097105 -19 3 IO67hc 0.5 DK8FT JN58oe 1590 121
2017-03-26 09:10 2M0TNM 14.097105 -12 3 IO67hc 0.5 F5LHF JN25em 1520 143
2017-03-26 09:10 2M0TNM 14.097121 -19 3 IO67hc 0.5 EA1FAQ IN71pn 1739 173
2017-03-26 09:10 2M0TNM 14.097109 -21 3 IO67hc 0.5 DK8FTB JN58oe 1590 121
2017-03-26 09:10 2M0TNM 14.097104 -26 3 IO67hc 0.5 IU1DZZ JN45hk 1701 133
2017-03-26 09:10 2M0TNM 14.097105 -20 3 IO67hc 0.5 IZ5HML JN53ha 2013 133
2017-03-26 09:10 2M0TNM 14.097103 -24 2 IO67hc 0.5 F5VBD JN25xo 1573 139
2017-03-26 09:10 2M0TNM 14.097107 -19 3 IO67hc 0.5 EA4GPZ IN80do 1854 170
2017-03-26 08:58 2M0TNM 10.140210 -24 2 IO67hc 0.5 DL0HT JO43jb 1119 107
2017-03-26 08:58 2M0TNM 10.140206 -14 1 IO67hc 0.5 F1VMV JN24kh 1658 144
2017-03-26 08:58 2M0TNM 10.140198 -11 2 IO67hc 0.5 PI4THT JO32kf 1062 115
2017-03-26 08:58 2M0TNM 10.140214 -20 1 IO67hc 0.5 DK2AMS JO61pd 1493 108
2017-03-26 08:58 2M0TNM 10.140211 -15 2 IO67hc 0.5 DL2ZZ JO31lo 1109 117
2017-03-26 08:58 2M0TNM 10.140193 -24 1 IO67hc 0.5 F4GFZ JN25 1546 141
2017-03-26 08:58 2M0TNM 10.140214 -21 1 IO67hc 0.5 DK3SML JN49sf 1421 121
2017-03-26 08:58 2M0TNM 10.140197 -8 1 IO67hc 0.5 SM0EPX/RX2 JO89si 1471 70
2017-03-26 08:58 2M0TNM 10.140203 -3 2 IO67hc 0.5 DK6UG JN49cm 1330 123
2017-03-26 08:58 2M0TNM 10.140203 -20 2 IO67hc 0.5 SM0EPX/RX2 JO89si 1471 70
2017-03-26 08:58 2M0TNM 10.140227 -19 2 IO67hc 0.5 DK7IO JN39nm 1276 125
2017-03-26 08:58 2M0TNM 10.140244 -9 1 IO67hc 0.5 DL1GCD JN48ar 1386 126
2017-03-26 08:58 2M0TNM 10.140214 -28 2 IO67hc 0.5 PI9ESA JO22fd 938 121
2017-03-26 08:58 2M0TNM 10.140203 -15 2 IO67hc 0.5 DL8FCL JN49jx 1325 120
2017-03-26 08:58 2M0TNM 10.140207 -29 2 IO67hc 0.5 DL4EAI JO31je 1130 120
2017-03-26 08:58 2M0TNM 10.140203 -25 2 IO67hc 0.5 F1JSC JN03ro 1624 154
2017-03-26 08:58 2M0TNM 10.140215 -22 1 IO67hc 0.5 DK8JP/1 JO31gk 1098 119
2017-03-26 08:58 2M0TNM 10.140218 -20 1 IO67hc 0.5 DF2JP JO31hh 1112 119
2017-03-26 08:58 2M0TNM 10.140226 -21 1 IO67hc 0.5 DC9PI JO31 1118 118
2017-03-26 08:58 2M0TNM 10.140209 -18 0 IO67hc 0.5 DL1KAI JO42vj 1215 108
2017-03-26 08:58 2M0TNM 10.140251 -12 2 IO67hc 0.5 DL/PA0EHG JO32sq 1070 111
2017-03-26 08:58 2M0TNM 10.140203 -14 1 IO67hc 0.5 DJ0ABR JN68nt 1644 115
2017-03-26 08:58 2M0TNM 10.140208 -18 2 IO67hc 0.5 DK8JP JO31gk 1098 119
2017-03-26 08:58 2M0TNM 10.140196 -7 1 IO67hc 0.5 ON7KO JO21ce 999 126
2017-03-26 08:50 2M0TNM 14.097106 -19 3 IO67hc 0.5 IZ5HML JN53ha 2013 133
2017-03-26 08:50 2M0TNM 14.097107 -25 3 IO67hc 0.5 EA4GPZ IN80do 1854 170
2017-03-26 08:38 2M0TNM 10.140210 -15 2 IO67hc 0.5 DL0HT JO43jb 1119 107
2017-03-26 08:38 2M0TNM 10.140198 -15 1 IO67hc 0.5 PI4THT JO32kf 1062 115
2017-03-26 08:38 2M0TNM 10.140211 -11 2 IO67hc 0.5 DL2ZZ JO31lo 1109 117
2017-03-26 08:38 2M0TNM 10.140204 -9 0 IO67hc 0.5 F5OIH JN06ci 1303 153
2017-03-26 08:38 2M0TNM 10.140215 -22 2 IO67hc 0.5 DK8JP/1 JO31gk 1098 119
2017-03-26 08:38 2M0TNM 10.140192 -10 2 IO67hc 0.5 F4GFZ JN25 1546 141
2017-03-26 08:38 2M0TNM 10.140201 -24 2 IO67hc 0.5 OZ1PIF JO65an 1205 90
2017-03-26 08:38 2M0TNM 10.140209 -20 1 IO67hc 0.5 DL1KAI JO42vj 1215 108
2017-03-26 08:38 2M0TNM 10.140203 -18 2 IO67hc 0.5 DL8FCL JN49jx 1325 120
2017-03-26 08:38 2M0TNM 10.140244 -4 1 IO67hc 0.5 DL1GCD JN48ar 1386 126
2017-03-26 08:38 2M0TNM 10.140218 -9 2 IO67hc 0.5 DF2JP JO31hh 1112 119
2017-03-26 08:38 2M0TNM 10.140215 -9 2 IO67hc 0.5 DG0OPK JO50gq 1368 114
2017-03-26 08:38 2M0TNM 10.140208 -17 1 IO67hc 0.5 DL3NGN JN59mk 1485 117
2017-03-26 08:38 2M0TNM 10.140226 -24 2 IO67hc 0.5 DC9PI JO31 1118 118
2017-03-26 08:38 2M0TNM 10.140205 -15 2 IO67hc 0.5 DC5AL-R JO31lk 1120 118
2017-03-26 08:38 2M0TNM 10.140250 -17 2 IO67hc 0.5 DL/PA0EHG JO32sq 1070 111
2017-03-26 08:38 2M0TNM 10.140206 -27 2 IO67hc 0.5 DK8FTB JN58oe 1590 121
2017-03-26 08:38 2M0TNM 10.140161 -27 2 IO67hc 0.5 DF5MV JN58th 1602 119
2017-03-26 08:38 2M0TNM 10.140208 -19 3 IO67hc 0.5 DK8JP JO31gk 1098 119
2017-03-26 08:38 2M0TNM 10.140203 0 2 IO67hc 0.5 DK6UG JN49cm 1330 123
2017-03-26 08:38 2M0TNM 10.140214 -15 2 IO67hc 0.5 DK3SML JN49sf 1421 121
2017-03-26 08:38 2M0TNM 10.140203 -3 1 IO67hc 0.5 DJ0ABR JN68nt 1644 115
2017-03-26 08:28 2M0TNM 10.140210 -17 2 IO67hc 0.5 DL0HT JO43jb 1119 107
2017-03-26 08:28 2M0TNM 10.140199 -19 1 IO67hc 0.5 PI4THT JO32kf 1062 115
2017-03-26 08:28 2M0TNM 10.140221 -12 1 IO67hc 0.5 OZ7IT JO65df 1231 91
2017-03-26 08:28 2M0TNM 10.140210 -27 2 IO67hc 0.5 DL2ZZ JO31lo 1109 117
2017-03-26 08:28 2M0TNM 10.140205 -21 1 IO67hc 0.5 DC5AL-R JO31lk 1120 118
2017-03-26 08:28 2M0TNM 10.140217 -14 1 IO67hc 0.5 DG0OPK JO50gq 1368 114
2017-03-26 08:28 2M0TNM 10.140202 -14 1 IO67hc 0.5 HB9ADJ JN36li 1544 135
2017-03-26 08:28 2M0TNM 10.140208 -17 2 IO67hc 0.5 DC7JZB JO62qj 1424 103
2017-03-26 08:28 2M0TNM 10.140211 -27 3 IO67hc 0.5 HB9FZG JN37tm 1469 130
2017-03-26 08:28 2M0TNM 10.140204 -17 0 IO67hc 0.5 DK8FT JN58oe 1590 121
2017-03-26 08:28 2M0TNM 10.140209 -15 2 IO67hc 0.5 DL1KAI JO42vj 1215 108
2017-03-26 08:28 2M0TNM 10.140203 -6 2 IO67hc 0.5 DK6UG JN49cm 1330 123
2017-03-26 08:28 2M0TNM 10.140244 -3 1 IO67hc 0.5 DL1GCD JN48ar 1386 126
2017-03-26 08:28 2M0TNM 10.140192 -19 2 IO67hc 0.5 F4GFZ JN25 1546 141
2017-03-26 08:28 2M0TNM 10.140225 -22 2 IO67hc 0.5 DC9PI JO31 1118 118
2017-03-26 08:28 2M0TNM 10.140225 -18 2 IO67hc 0.5 OZ2JBR JO65di 1227 91
2017-03-26 08:28 2M0TNM 10.140214 -18 2 IO67hc 0.5 DK3SML JN49sf 1421 121
2017-03-26 08:28 2M0TNM 10.140202 -9 1 IO67hc 0.5 DJ0ABR JN68nt 1644 115
2017-03-26 08:28 2M0TNM 10.140206 -22 2 IO67hc 0.5 DK8FTB JN58oe 1590 121
2017-03-26 08:28 2M0TNM 10.140202 -17 2 IO67hc 0.5 DL8FCL JN49jx 1325 120
2017-03-26 08:28 2M0TNM 10.140197 -9 2 IO67hc 0.5 SM0EPX/RX2 JO89si 1471 70
2017-03-26 08:18 2M0TNM 7.040099 -14 1 IO67hc 0.5 PI4THT JO32kf 1062 115
2017-03-26 08:18 2M0TNM 7.040108 -18 1 IO67hc 0.5 PI9ESA JO22fd 938 121
2017-03-26 08:18 2M0TNM 7.040109 -16 1 IO67hc 0.5 PH2M JO22hc 950 121
2017-03-26 08:18 2M0TNM 7.040100 -5 1 IO67hc 0.5 G4DJB IO91ph 776 143
2017-03-26 08:18 2M0TNM 7.040105 -1 1 IO67hc 0.5 G4HZX IO91 748 144
2017-03-26 08:18 2M0TNM 7.040072 -24 1 IO67hc 0.5 M1GEO JO02ok 756 130
2017-03-26 08:18 2M0TNM 7.040123 -5 1 IO67hc 0.5 F5OIH JN06ci 1303 153
2017-03-26 08:18 2M0TNM 7.040101 -4 1 IO67hc 0.5 G3ZIL IO90hw 789 148
2017-03-26 08:18 2M0TNM 7.040111 -9 1 IO67hc 0.5 G4DCP IO90lv 804 146
2017-03-26 08:18 2M0TNM 7.040122 -14 2 IO67hc 0.5 G1RRR IO90cu 784 150
2017-03-26 08:18 2M0TNM 7.040114 -5 1 IO67hc 0.5 ON5KQ JO10os 986 131
2017-03-26 08:18 2M0TNM 7.040111 -9 1 IO67hc 0.5 LA9JO JP99gb 1836 33
2017-03-26 08:08 2M0TNM 10.140209 -16 2 IO67hc 0.5 DL1KAI JO42vj 1215 108
2017-03-26 08:08 2M0TNM 10.140176 -23 1 IO67hc 0.5 LX1DQ JN39cq 1217 127
2017-03-26 08:08 2M0TNM 10.140213 -21 1 IO67hc 0.5 DK2AMS JO61pd 1493 108
2017-03-26 08:08 2M0TNM 10.140220 -21 1 IO67hc 0.5 OZ7IT JO65df 1231 91
2017-03-26 08:08 2M0TNM 10.140191 -13 2 IO67hc 0.5 F4GFZ JN25 1546 141
2017-03-26 08:08 2M0TNM 10.140244 -5 2 IO67hc 0.5 DL1GCD JN48ar 1386 126
2017-03-26 08:08 2M0TNM 10.140214 -13 3 IO67hc 0.5 EA1FAQ IN71pn 1739 173
2017-03-26 08:08 2M0TNM 10.140226 -14 1 IO67hc 0.5 DG0OPK JO50gq 1368 114
2017-03-26 08:08 2M0TNM 10.140225 -25 2 IO67hc 0.5 DC9PI JO31 1118 118
2017-03-26 08:08 2M0TNM 10.140202 -9 2 IO67hc 0.5 DK6UG JN49cm 1330 123
2017-03-26 08:08 2M0TNM 10.140202 -16 2 IO67hc 0.5 DL8FCL JN49jx 1325 120
2017-03-26 08:08 2M0TNM 10.140202 +3 1 IO67hc 0.5 DJ0ABR JN68nt 1644 115
2017-03-26 08:08 2M0TNM 10.140161 -21 2 IO67hc 0.5 DF5MV JN58th 1602 119
2017-03-26 08:08 2M0TNM 10.140226 -22 2 IO67hc 0.5 OZ2JBR JO65di 1227 91
2017-03-26 08:08 2M0TNM 10.140202 -13 1 IO67hc 0.5 HB9ADJ JN36li 1544 135
2017-03-26 08:08 2M0TNM 10.140213 -16 2 IO67hc 0.5 DK3SML JN49sf 1421 121
2017-03-26 08:08 2M0TNM 10.140234 -28 2 IO67hc 0.5 DF5FH JO42um 1203 108
2017-03-26 08:08 2M0TNM 10.140211 -27 3 IO67hc 0.5 HB9FZG JN37tm 1469 130
2017-03-26 08:08 2M0TNM 10.140202 -20 2 IO67hc 0.5 F5VBD JN25xo 1573 139
2017-03-26 07:54 2M0TNM 7.040109 -16 1 IO67hc 0.5 PH2M JO22hc 950 121
2017-03-26 07:54 2M0TNM 7.040099 -14 1 IO67hc 0.5 PI4THT JO32kf 1062 115
2017-03-26 07:54 2M0TNM 7.040111 -3 1 IO67hc 0.5 LA9JO JP99gb 1836 33
2017-03-26 07:54 2M0TNM 7.040127 -26 1 IO67hc 0.5 G4XCS IO80lr 763 156
2017-03-26 07:54 2M0TNM 7.040098 -14 1 IO67hc 0.5 F4HJH JN09gi 1009 145
2017-03-26 07:54 2M0TNM 7.040104 -4 1 IO67hc 0.5 G0HAE IO90hv 793 148
2017-03-26 07:54 2M0TNM 7.040105 -25 1 IO67hc 0.5 F8AOF JN03ov 1586 154
2017-03-26 07:54 2M0TNM 7.040108 -16 1 IO67hc 0.5 PI9ESA JO22fd 938 121
2017-03-26 07:54 2M0TNM 7.040100 +3 1 IO67hc 0.5 G4DJB IO91ph 776 143
2017-03-26 07:54 2M0TNM 7.040090 -23 1 IO67hc 0.5 LA3JJ/RX2 JO59bh 1051 69
2017-03-26 07:54 2M0TNM 7.040110 -23 1 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 07:54 2M0TNM 7.040102 -3 1 IO67hc 0.5 G3ZIL IO90hw 789 148
2017-03-26 07:54 2M0TNM 7.040071 -28 0 IO67hc 0.5 M1GEO JO02ok 756 130
2017-03-26 07:54 2M0TNM 7.040111 -8 1 IO67hc 0.5 G4DCP IO90lv 804 146
2017-03-26 07:54 2M0TNM 7.040108 -15 1 IO67hc 0.5 ON7KO JO21ce 999 126
2017-03-26 07:54 2M0TNM 7.040116 -8 1 IO67hc 0.5 ON5KQ JO10os 986 131
2017-03-26 07:44 2M0TNM 7.040107 -15 2 IO67hc 0.5 DL0HT JO43jb 1119 107
2017-03-26 07:44 2M0TNM 7.040111 -3 1 IO67hc 0.5 LA9JO JP99gb 1836 33
2017-03-26 07:44 2M0TNM 7.040109 -13 1 IO67hc 0.5 PH2M JO22hc 950 121
2017-03-26 07:44 2M0TNM 7.040099 -11 2 IO67hc 0.5 PI4THT JO32kf 1062 115
2017-03-26 07:44 2M0TNM 7.040106 -24 1 IO67hc 0.5 DL2ZZ JO31lo 1109 117
2017-03-26 07:44 2M0TNM 7.040117 -5 1 IO67hc 0.5 ON5KQ JO10os 986 131
2017-03-26 07:44 2M0TNM 7.040098 -16 1 IO67hc 0.5 F4HJH JN09gi 1009 145
2017-03-26 07:44 2M0TNM 7.040127 -22 1 IO67hc 0.5 G4XCS IO80lr 763 156
2017-03-26 07:44 2M0TNM 7.040108 -12 2 IO67hc 0.5 PI9ESA JO22fd 938 121
2017-03-26 07:44 2M0TNM 7.040112 -15 1 IO67hc 0.5 DF2JP JO31hh 1112 119
2017-03-26 07:44 2M0TNM 7.040135 -13 1 IO67hc 0.5 DL/PA0EHG JO32sq 1070 111
2017-03-26 07:44 2M0TNM 7.040105 -14 1 IO67hc 0.5 G4HZX IO91 748 144
2017-03-26 07:44 2M0TNM 7.040102 -15 1 IO67hc 0.5 DC5AL-R JO31lk 1120 118
2017-03-26 07:44 2M0TNM 7.040100 -12 1 IO67hc 0.5 G4DJB IO91ph 776 143
2017-03-26 07:44 2M0TNM 7.040090 -20 1 IO67hc 0.5 LA3JJ/RX2 JO59bh 1051 69
2017-03-26 07:44 2M0TNM 7.040104 -7 1 IO67hc 0.5 G0HAE IO90hv 793 148
2017-03-26 07:44 2M0TNM 7.040111 -9 1 IO67hc 0.5 G4DCP IO90lv 804 146
2017-03-26 07:44 2M0TNM 7.040108 -18 1 IO67hc 0.5 ON7KO JO21ce 999 126
2017-03-26 07:44 2M0TNM 7.040110 -13 1 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 07:44 2M0TNM 7.040101 -8 1 IO67hc 0.5 G3ZIL IO90hw 789 148
2017-03-26 07:22 2M0TNM 14.097117 -14 2 IO67hc 0.5 IZ5HML JN53ha 2013 133
2017-03-26 07:22 2M0TNM 14.097146 -14 3 IO67hc 0.5 IZ5MMH JN53ha 2013 133
2017-03-26 07:14 2M0TNM 7.040102 -6 1 IO67hc 0.5 G3ZIL IO90hw 789 148
2017-03-26 07:14 2M0TNM 7.040121 -3 1 IO67hc 0.5 ON5KQ JO10os 986 131
2017-03-26 07:14 2M0TNM 7.040113 -13 1 IO67hc 0.5 DF2JP JO31hh 1112 119
2017-03-26 07:14 2M0TNM 7.040109 -13 1 IO67hc 0.5 PI9ESA JO22fd 938 121
2017-03-26 07:14 2M0TNM 7.040106 -6 1 IO67hc 0.5 G4HZX IO91 748 144
2017-03-26 07:14 2M0TNM 7.040109 -20 1 IO67hc 0.5 DK8JP/1 JO31gk 1098 119
2017-03-26 07:14 2M0TNM 7.040112 -14 1 IO67hc 0.5 G4DCP IO90lv 804 146
2017-03-26 07:14 2M0TNM 7.040101 -20 1 IO67hc 0.5 DK8JP JO31gk 1098 119
2017-03-26 07:14 2M0TNM 7.040110 -13 1 IO67hc 0.5 PH2M JO22hc 950 121
2017-03-26 07:14 2M0TNM 7.040099 -9 1 IO67hc 0.5 PI4THT JO32kf 1062 115
2017-03-26 07:02 2M0TNM 7.040110 -12 1 IO67hc 0.5 PH2M JO22hc 950 121
2017-03-26 07:02 2M0TNM 7.040111 -17 1 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 07:02 2M0TNM 7.040109 -9 1 IO67hc 0.5 PI9ESA JO22fd 938 121
2017-03-26 07:02 2M0TNM 7.040104 -12 1 IO67hc 0.5 DC5AL-R JO31lk 1120 118
2017-03-26 07:02 2M0TNM 7.040101 -18 1 IO67hc 0.5 DK8JP JO31gk 1098 119
2017-03-26 07:02 2M0TNM 7.040121 -2 1 IO67hc 0.5 ON5KQ JO10os 986 131
2017-03-26 07:02 2M0TNM 7.040113 -9 1 IO67hc 0.5 DF2JP JO31hh 1112 119
2017-03-26 07:02 2M0TNM 7.040136 -11 1 IO67hc 0.5 DL/PA0EHG JO32sq 1070 111
2017-03-26 07:02 2M0TNM 7.040078 -25 1 IO67hc 0.5 DL6OW-R JO31kk 1116 118
2017-03-26 07:02 2M0TNM 7.040109 -17 1 IO67hc 0.5 DK8JP/1 JO31gk 1098 119
2017-03-26 07:02 2M0TNM 7.040071 -16 1 IO67hc 0.5 NL8992 JO32fl 1022 114
2017-03-26 06:44 2M0TNM 7.040108 -2 1 IO67hc 0.5 DL0HT JO43jb 1119 107
2017-03-26 06:44 2M0TNM 7.040076 -12 1 IO67hc 0.5 LX1DQ JN39cq 1217 127
2017-03-26 06:44 2M0TNM 7.040100 -13 1 IO67hc 0.5 PI4THT JO32kf 1062 115
2017-03-26 06:44 2M0TNM 7.040110 -12 1 IO67hc 0.5 PH2M JO22hc 950 121
2017-03-26 06:44 2M0TNM 7.040099 -6 1 IO67hc 0.5 DK6UG JN49cm 1330 123
2017-03-26 06:44 2M0TNM 7.040100 -15 1 IO67hc 0.5 F4HJH JN09gi 1009 145
2017-03-26 06:44 2M0TNM 7.040124 -16 1 IO67hc 0.5 DK3SML/RX2 JN49sf 1421 121
2017-03-26 06:44 2M0TNM 7.040114 -14 1 IO67hc 0.5 DF2JP JO31hh 1112 119
2017-03-26 06:44 2M0TNM 7.040114 -15 0 IO67hc 0.5 OZ7IT JO65df 1231 91
2017-03-26 06:44 2M0TNM 7.040113 -23 1 IO67hc 0.5 ON7KB JO21ei 994 125
2017-03-26 06:44 2M0TNM 7.040102 -1 1 IO67hc 0.5 5P1B JO45rt 1041 91
2017-03-26 06:44 2M0TNM 7.040109 -11 1 IO67hc 0.5 PI9ESA JO22fd 938 121
2017-03-26 06:44 2M0TNM 7.040103 -13 1 IO67hc 0.5 DC5AL-R JO31lk 1120 118
2017-03-26 06:44 2M0TNM 7.040143 -14 1 IO67hc 0.5 DL1HI JO52ho 1251 106
2017-03-26 06:44 2M0TNM 7.040107 -20 1 IO67hc 0.5 DL1KAI JO42vj 1215 108
2017-03-26 06:44 2M0TNM 7.040111 -13 1 IO67hc 0.5 DF8OE JO42jr 1138 108
2017-03-26 06:44 2M0TNM 7.040103 -14 1 IO67hc 0.5 HB9ADJ JN36li 1544 135
2017-03-26 06:44 2M0TNM 7.040111 -9 1 IO67hc 0.5 EA1FAQ IN71pn 1739 173
2017-03-26 06:44 2M0TNM 7.040109 -17 1 IO67hc 0.5 ON7KO JO21ce 999 126
2017-03-26 06:44 2M0TNM 7.040102 -20 1 IO67hc 0.5 DK8JP JO31gk 1098 119
2017-03-26 06:44 2M0TNM 7.040109 -27 1 IO67hc 0.5 DK8JP/1 JO31gk 1098 119
2017-03-26 06:44 2M0TNM 7.040136 -19 1 IO67hc 0.5 DL/PA0EHG JO32sq 1070 111
2017-03-26 06:44 2M0TNM 7.040132 -19 1 IO67hc 0.5 DL1GCD JN48ar 1386 126
2017-03-26 06:44 2M0TNM 7.040089 -11 1 IO67hc 0.5 LA3JJ/RX2 JO59bh 1051 69
2017-03-26 06:44 2M0TNM 7.040133 -19 1 IO67hc 0.5 DF5FH JO42um 1203 108
2017-03-26 06:44 2M0TNM 7.040073 -25 1 IO67hc 0.5 DF5MV JN58th 1602 119
2017-03-26 06:44 2M0TNM 7.040121 +3 0 IO67hc 0.5 ON5KQ JO10os 986 131
2017-03-26 06:44 2M0TNM 7.040111 -11 1 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 06:44 2M0TNM 7.040105 -18 1 IO67hc 0.5 DK5SDJ JN57wv 1647 120
2017-03-26 06:44 2M0TNM 7.040116 -11 0 IO67hc 0.5 PA2W JO22lf 958 119
2017-03-26 06:44 2M0TNM 7.040125 -27 1 IO67hc 0.5 DF5FH JO42um 1203 108
2017-03-26 06:44 2M0TNM 7.040071 -12 0 IO67hc 0.5 NL8992 JO32fl 1022 114
2017-03-26 06:36 2M0TNM 7.040100 -8 1 IO67hc 0.5 PI4THT JO32kf 1062 115
2017-03-26 06:36 2M0TNM 7.040110 -11 1 IO67hc 0.5 PH2M JO22hc 950 121
2017-03-26 06:36 2M0TNM 7.040156 -11 1 IO67hc 0.5 EA2RKO IN92tc 1740 160
2017-03-26 06:36 2M0TNM 7.040107 -15 0 IO67hc 0.5 F1ING IN97nc 1196 156
2017-03-26 06:36 2M0TNM 7.040099 -7 1 IO67hc 0.5 DK6UG JN49cm 1330 123
2017-03-26 06:36 2M0TNM 7.040107 -22 1 IO67hc 0.5 DL2ZZ JO31lo 1109 117
2017-03-26 06:36 2M0TNM 7.040102 -15 1 IO67hc 0.5 DC5AL-R JO31lk 1120 118
2017-03-26 06:36 2M0TNM 7.040109 -9 1 IO67hc 0.5 PI9ESA JO22fd 938 121
2017-03-26 06:36 2M0TNM 7.040116 -1 1 IO67hc 0.5 PA2W JO22lf 958 119
2017-03-26 06:36 2M0TNM 7.040113 -7 1 IO67hc 0.5 DF2JP JO31hh 1112 119
2017-03-26 06:36 2M0TNM 7.040136 -15 1 IO67hc 0.5 DL/PA0EHG JO32sq 1070 111
2017-03-26 06:36 2M0TNM 7.040111 -10 1 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 06:36 2M0TNM 7.040102 -5 1 IO67hc 0.5 5P1B JO45rt 1041 91
2017-03-26 06:36 2M0TNM 7.040109 -17 1 IO67hc 0.5 DK8JP/1 JO31gk 1098 119
2017-03-26 06:36 2M0TNM 7.040089 -9 1 IO67hc 0.5 LA3JJ/RX2 JO59bh 1051 69
2017-03-26 06:36 2M0TNM 7.040112 -5 1 IO67hc 0.5 EA1FAQ IN71pn 1739 173
2017-03-26 06:36 2M0TNM 7.040110 -9 -1 IO67hc 0.5 SM3UQS JP82ok 1487 56
2017-03-26 06:36 2M0TNM 7.040070 -15 0 IO67hc 0.5 NL8992 JO32fl 1022 114
2017-03-26 06:36 2M0TNM 7.040102 -16 2 IO67hc 0.5 DK8JP JO31gk 1098 119
2017-03-26 06:36 2M0TNM 7.040077 -26 0 IO67hc 0.5 DL6OW-R JO31kk 1116 118
2017-03-26 06:28 2M0TNM 10.140206 -8 1 IO67hc 0.5 F1VMV JN24kh 1658 144
2017-03-26 06:28 2M0TNM 10.140204 -29 2 IO67hc 0.5 F1JSC JN03ro 1624 154
2017-03-26 06:28 2M0TNM 10.140217 -22 1 IO67hc 0.5 IZ4LXP JN54lg 1912 130
2017-03-26 06:28 2M0TNM 10.140204 -19 2 IO67hc 0.5 DK8FT JN58oe 1590 121
2017-03-26 06:28 2M0TNM 10.140192 -7 1 IO67hc 0.5 F4GFZ JN25 1546 141
2017-03-26 06:28 2M0TNM 10.140161 -17 2 IO67hc 0.5 DF5MV JN58th 1602 119
2017-03-26 06:28 2M0TNM 10.140208 -17 2 IO67hc 0.5 DK8FTB JN58oe 1590 121
2017-03-26 06:28 2M0TNM 10.140204 -1 1 IO67hc 0.5 DJ0ABR JN68nt 1644 115
2017-03-26 06:28 2M0TNM 10.140216 -9 1 IO67hc 0.5 EA1FAQ IN71pn 1739 173
2017-03-26 06:08 2M0TNM 10.140203 -6 2 IO67hc 0.5 F5VBD JN25xo 1573 139
2017-03-26 06:08 2M0TNM 10.140193 -4 2 IO67hc 0.5 F4GFZ JN25 1546 141
2017-03-26 06:08 2M0TNM 10.140197 -7 2 IO67hc 0.5 IW0RQJ JN63ha 2103 130
2017-03-26 06:08 2M0TNM 10.140216 -10 3 IO67hc 0.5 EA1FAQ IN71pn 1739 173
2017-03-26 06:08 2M0TNM 10.140161 -27 1 IO67hc 0.5 DF5MV JN58th 1602 119
2017-03-26 06:08 2M0TNM 10.140204 +2 1 IO67hc 0.5 DJ0ABR JN68nt 1644 115
2017-03-26 06:08 2M0TNM 10.140218 -10 2 IO67hc 0.5 DL2JA JN58vk 1601 119
2017-03-26 06:08 2M0TNM 10.140206 -20 2 IO67hc 0.5 EA4GPZ IN80do 1854 170
2017-03-26 05:36 2M0TNM 7.040124 -5 1 IO67hc 0.5 DK3SML/RX2 JN49sf 1421 121
2017-03-26 04:56 2M0TNM 7.040107 -25 1 IO67hc 0.5 OE1RPW JN88eg 1864 112
2017-03-26 04:56 2M0TNM 7.040112 -14 1 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 04:56 2M0TNM 7.040156 -5 1 IO67hc 0.5 EA2RKO IN92tc 1740 160
2017-03-26 04:44 2M0TNM 7.040112 -11 1 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 04:44 2M0TNM 7.040106 -24 2 IO67hc 0.5 F8AOF JN03ov 1586 154
2017-03-26 04:20 2M0TNM 7.040112 -12 2 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 03:54 2M0TNM 7.040156 -11 1 IO67hc 0.5 EA2RKO IN92tc 1740 160
2017-03-26 03:54 2M0TNM 7.040112 -7 1 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 03:54 2M0TNM 7.040106 -24 2 IO67hc 0.5 F8AOF JN03ov 1586 154
2017-03-26 03:54 2M0TNM 7.040099 -23 2 IO67hc 0.5 IW0RQJ JN63ha 2103 130
2017-03-26 03:18 2M0TNM 7.040099 -14 1 IO67hc 0.5 IW0RQJ JN63ha 2103 130
2017-03-26 03:18 2M0TNM 7.040112 -2 2 IO67hc 0.5 EA1FAQ IN71pn 1739 173
2017-03-26 02:58 2M0TNM 7.040112 -11 2 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 02:58 2M0TNM 7.040099 -11 2 IO67hc 0.5 IW0RQJ JN63ha 2103 130
2017-03-26 02:58 2M0TNM 7.040107 -22 1 IO67hc 0.5 OE1RPW JN88eg 1864 112
2017-03-26 02:58 2M0TNM 7.040112 -8 2 IO67hc 0.5 EA1FAQ IN71pn 1739 173
2017-03-26 02:58 2M0TNM 7.040109 -29 2 IO67hc 0.5 OE6PWD JN77rb 1904 116
2017-03-26 01:52 2M0TNM 7.040107 -22 1 IO67hc 0.5 OE1RPW JN88eg 1864 112
2017-03-26 01:52 2M0TNM 7.040099 -18 1 IO67hc 0.5 IW0RQJ JN63ha 2103 130
2017-03-26 01:52 2M0TNM 7.040112 -9 2 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 01:32 2M0TNM 7.040156 -5 1 IO67hc 0.5 EA2RKO IN92tc 1740 160
2017-03-26 01:32 2M0TNM 7.040099 -15 1 IO67hc 0.5 IW0RQJ JN63ha 2103 130
2017-03-26 01:32 2M0TNM 7.040107 -22 1 IO67hc 0.5 OE1RPW JN88eg 1864 112
2017-03-26 01:32 2M0TNM 7.040112 -12 1 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 00:42 2M0TNM 7.040106 -24 1 IO67hc 0.5 F8AOF JN03ov 1586 154
2017-03-26 00:42 2M0TNM 7.040098 -16 1 IO67hc 0.5 IW0RQJ JN63ha 2103 130
2017-03-26 00:42 2M0TNM 7.040155 -5 1 IO67hc 0.5 EA2RKO IN92tc 1740 160
2017-03-26 00:42 2M0TNM 7.040112 -12 1 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 00:42 2M0TNM 7.040108 -23 1 IO67hc 0.5 OE6PWD JN77rb 1904 116
2017-03-26 00:42 2M0TNM 7.040107 -18 1 IO67hc 0.5 OE1RPW JN88eg 1864 112
2017-03-26 00:20 2M0TNM 7.040155 -6 0 IO67hc 0.5 EA2RKO IN92tc 1740 160
2017-03-26 00:20 2M0TNM 7.040107 -24 1 IO67hc 0.5 OE1RPW JN88eg 1864 112
2017-03-26 00:20 2M0TNM 7.040105 -23 1 IO67hc 0.5 F8AOF JN03ov 1586 154
2017-03-26 00:20 2M0TNM 7.040111 -18 0 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-26 00:20 2M0TNM 7.040108 -26 1 IO67hc 0.5 OE6PWD JN77rb 1904 116
2017-03-26 00:08 2M0TNM 10.140203 -24 2 IO67hc 0.5 WA9WTK FN42fk 4688 278
2017-03-25 23:52 2M0TNM 10.140204 -29 2 IO67hc 0.5 KK1D FN31vi 4811 278
2017-03-25 23:42 2M0TNM 7.040111 -14 1 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-25 23:42 2M0TNM 7.040108 -24 2 IO67hc 0.5 OE6PWD JN77rb 1904 116
2017-03-25 23:42 2M0TNM 7.040107 -27 1 IO67hc 0.5 OE1RPW JN88eg 1864 112
2017-03-25 23:42 2M0TNM 7.040106 -25 1 IO67hc 0.5 F8AOF JN03ov 1586 154
2017-03-25 23:42 2M0TNM 7.040155 -8 1 IO67hc 0.5 EA2RKO IN92tc 1740 160
2017-03-25 23:34 2M0TNM 10.140203 -25 2 IO67hc 0.5 KK1D FN31vi 4811 278
2017-03-25 23:34 2M0TNM 10.140195 -17 2 IO67hc 0.5 VE3NFK FN14tk 4823 284
2017-03-25 23:00 2M0TNM 10.140206 -23 2 IO67hc 0.5 KJ4RV FM05mb 5724 277
2017-03-25 23:00 2M0TNM 10.140212 -17 1 IO67hc 0.5 K3RWR FM18qi 5313 278
2017-03-25 23:00 2M0TNM 10.140232 -25 1 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 22:38 2M0TNM 14.097106 -25 3 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 22:30 2M0TNM 14.097113 -25 2 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 22:30 2M0TNM 14.097113 -26 3 IO67hc 0.5 WX4D FM19jk 5261 280
2017-03-25 22:30 2M0TNM 14.097106 -16 3 IO67hc 0.5 W4MO EL86 6710 274
2017-03-25 22:30 2M0TNM 14.097106 -24 3 IO67hc 0.5 K9AN EN50wc 5847 288
2017-03-25 22:30 2M0TNM 14.097129 -18 3 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 22:30 2M0TNM 14.097118 -14 2 IO67hc 0.5 K3RWR FM18qi 5313 278
2017-03-25 22:30 2M0TNM 14.097108 -20 3 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 22:30 2M0TNM 14.097106 -28 3 IO67hc 0.5 W1GJM FN42di 4705 278
2017-03-25 22:30 2M0TNM 14.097105 -19 3 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 22:30 2M0TNM 14.097110 -27 3 IO67hc 0.5 W4MO EL87 6622 274
2017-03-25 22:30 2M0TNM 14.097106 -19 3 IO67hc 0.5 K4COD EM73sc 6218 280
2017-03-25 22:30 2M0TNM 14.097118 -13 3 IO67hc 0.5 K3RWR FM18qi 5313 278
2017-03-25 22:18 2M0TNM 7.040094 -10 1 IO67hc 0.5 DF6SM JN58ct 1488 121
2017-03-25 22:18 2M0TNM 7.040107 -24 1 IO67hc 0.5 OE1RPW JN88eg 1864 112
2017-03-25 22:18 2M0TNM 7.040103 -17 0 IO67hc 0.5 DK8FTA JN58oe 1590 121
2017-03-25 22:18 2M0TNM 7.040112 -17 1 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-25 22:18 2M0TNM 7.040117 -10 2 IO67hc 0.5 DL2JA JN58vk 1601 119
2017-03-25 22:18 2M0TNM 7.040106 -25 1 IO67hc 0.5 F8AOF JN03ov 1586 154
2017-03-25 22:18 2M0TNM 7.040073 -23 1 IO67hc 0.5 DF5MV JN58th 1602 119
2017-03-25 22:18 2M0TNM 7.040103 -20 1 IO67hc 0.5 F5VBD JN25xo 1573 139
2017-03-25 22:18 2M0TNM 7.040108 -28 1 IO67hc 0.5 OE6PWD JN77rb 1904 116
2017-03-25 22:10 2M0TNM 14.097111 -25 2 IO67hc 0.5 KC4RSN EM72hp 6312 280
2017-03-25 22:10 2M0TNM 14.097112 -20 2 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 22:10 2M0TNM 14.097119 -24 1 IO67hc 0.5 W4EPM EM86ul 5805 281
2017-03-25 22:10 2M0TNM 14.097113 -20 2 IO67hc 0.5 WX4D FM19jk 5261 280
2017-03-25 22:10 2M0TNM 14.097109 -21 3 IO67hc 0.5 W4MO EL87 6622 274
2017-03-25 22:10 2M0TNM 14.097142 -27 2 IO67hc 0.5 KA3JIJ EM84cj 6069 280
2017-03-25 22:10 2M0TNM 14.097125 -14 3 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 22:10 2M0TNM 14.097117 -10 3 IO67hc 0.5 K3RWR FM18qi 5313 278
2017-03-25 22:10 2M0TNM 14.097116 -25 2 IO67hc 0.5 AI4RY EM72go 6321 280
2017-03-25 22:10 2M0TNM 14.097105 -14 2 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 22:10 2M0TNM 14.097111 -22 1 IO67hc 0.5 W3GXT FM19ol 5233 279
2017-03-25 22:10 2M0TNM 14.097107 -15 2 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 22:10 2M0TNM 14.097117 -12 2 IO67hc 0.5 K3RWR FM18qi 5313 278
2017-03-25 22:10 2M0TNM 14.097109 -16 3 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 22:10 2M0TNM 14.097104 -29 1 IO67hc 0.5 N4XWC EM63nu 6298 282
2017-03-25 22:10 2M0TNM 14.097105 -15 2 IO67hc 0.5 W4MO EL86 6710 274
2017-03-25 22:10 2M0TNM 14.097108 -23 3 IO67hc 0.5 W4HOD EM72eo 6331 280
2017-03-25 22:10 2M0TNM 14.097138 -24 2 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 21:54 2M0TNM 7.040126 -11 1 IO67hc 0.5 F5OIH JN06ci 1303 153
2017-03-25 21:54 2M0TNM 7.040130 -14 1 IO67hc 0.5 DK3SML/RX2 JN49sf 1421 121
2017-03-25 21:54 2M0TNM 7.040104 -12 1 IO67hc 0.5 F6EMC JN38og 1384 129
2017-03-25 21:54 2M0TNM 7.040116 -17 1 IO67hc 0.5 DL2JA JN58vk 1601 119
2017-03-25 21:54 2M0TNM 7.040107 -26 1 IO67hc 0.5 OE1RPW JN88eg 1864 112
2017-03-25 21:54 2M0TNM 7.040074 -26 1 IO67hc 0.5 DF5MV JN58th 1602 119
2017-03-25 21:54 2M0TNM 7.040106 -25 1 IO67hc 0.5 DK8FTB JN58oe 1590 121
2017-03-25 21:54 2M0TNM 7.040112 -13 0 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-25 21:54 2M0TNM 7.040155 -9 1 IO67hc 0.5 EA2RKO IN92tc 1740 160
2017-03-25 21:54 2M0TNM 7.040112 -9 1 IO67hc 0.5 LA9JO JP99gb 1836 33
2017-03-25 21:54 2M0TNM 7.040104 -15 0 IO67hc 0.5 IK1NET JN34su 1709 136
2017-03-25 21:54 2M0TNM 7.040104 -13 0 IO67hc 0.5 DK8FT JN58oe 1590 121
2017-03-25 21:54 2M0TNM 7.040094 -12 1 IO67hc 0.5 DF6SM JN58ct 1488 121
2017-03-25 21:54 2M0TNM 7.040103 -15 1 IO67hc 0.5 DK8FTA JN58oe 1590 121
2017-03-25 21:44 2M0TNM 14.097139 -14 3 IO67hc 0.5 W2CXM FN12sk 4980 282
2017-03-25 21:44 2M0TNM 14.097139 -26 3 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 21:44 2M0TNM 14.097108 -18 2 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 21:44 2M0TNM 14.097110 -20 2 IO67hc 0.5 W4MO EL87 6622 274
2017-03-25 21:44 2M0TNM 14.097114 -21 3 IO67hc 0.5 WX4D FM19jk 5261 280
2017-03-25 21:44 2M0TNM 14.097129 -11 1 IO67hc 0.5 K3EA FN20of 5054 278
2017-03-25 21:44 2M0TNM 14.097113 -25 2 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 21:44 2M0TNM 14.097129 -17 2 IO67hc 0.5 K4RCG FM08si 5423 279
2017-03-25 21:44 2M0TNM 14.097106 -12 3 IO67hc 0.5 W4MO EL86 6710 274
2017-03-25 21:44 2M0TNM 14.097118 -13 3 IO67hc 0.5 K3RWR FM18qi 5313 278
2017-03-25 21:44 2M0TNM 14.097116 -21 1 IO67hc 0.5 WA3DNM FM29 5128 278
2017-03-25 21:34 2M0TNM 10.140218 -29 2 IO67hc 0.5 WD4AHB EL89rt 6388 276
2017-03-25 21:34 2M0TNM 10.140212 -22 2 IO67hc 0.5 K3RWR FM18qi 5313 278
2017-03-25 21:34 2M0TNM 10.140207 -15 2 IO67hc 0.5 N2NOM FN22bg 4959 281
2017-03-25 21:34 2M0TNM 10.140212 -21 2 IO67hc 0.5 K3RWR FM18qi 5313 278
2017-03-25 21:34 2M0TNM 10.140205 -22 2 IO67hc 0.5 KJ4RV FM05mb 5724 277
2017-03-25 21:34 2M0TNM 10.140196 -16 1 IO67hc 0.5 VE3NFK FN14tk 4823 284
2017-03-25 21:34 2M0TNM 10.140223 -17 2 IO67hc 0.5 ZS6KN KG44bj 9779 148
2017-03-25 21:26 2M0TNM 7.040111 -12 0 IO67hc 0.5 EA4BPN/P IN80dk 1872 170
2017-03-25 21:26 2M0TNM 7.040102 -9 1 IO67hc 0.5 DK6UG JN49cm 1330 123
2017-03-25 21:26 2M0TNM 7.040104 -21 1 IO67hc 0.5 IK1NET JN34su 1709 136
2017-03-25 21:26 2M0TNM 7.040107 -8 1 IO67hc 0.5 F1ING IN97nc 1196 156
2017-03-25 21:26 2M0TNM 7.040129 -19 1 IO67hc 0.5 DK3SML/RX2 JN49sf 1421 121
2017-03-25 21:26 2M0TNM 7.040094 -18 1 IO67hc 0.5 DF6SM JN58ct 1488 121
2017-03-25 21:26 2M0TNM 7.040103 -12 1 IO67hc 0.5 DK8FT JN58oe 1590 121
2017-03-25 21:26 2M0TNM 7.040103 -19 1 IO67hc 0.5 F6EMC JN38og 1384 129
2017-03-25 21:26 2M0TNM 7.040102 -13 1 IO67hc 0.5 DK8FTA JN58oe 1590 121
2017-03-25 21:26 2M0TNM 7.040107 -24 1 IO67hc 0.5 OE1RPW JN88eg 1864 112
2017-03-25 21:26 2M0TNM 7.040073 -24 1 IO67hc 0.5 DF5MV JN58th 1602 119
2017-03-25 21:26 2M0TNM 7.040125 -11 1 IO67hc 0.5 F5OIH JN06ci 1303 153
2017-03-25 21:26 2M0TNM 7.040105 -26 1 IO67hc 0.5 DK8FTB JN58oe 1590 121
2017-03-25 21:08 2M0TNM 10.140200 -12 2 IO67hc 0.5 WA9WTK FN42fk 4688 278
2017-03-25 21:08 2M0TNM 10.140202 -9 2 IO67hc 0.5 KK1D FN31vi 4811 278
2017-03-25 21:08 2M0TNM 10.140222 -22 2 IO67hc 0.5 ZS6KN KG44bj 9779 148
2017-03-25 20:50 2M0TNM 10.140197 -25 1 IO67hc 0.5 SM0EPX/RX2 JO89si 1471 70
Hearing: 2E0DZC, 2E0FSI, 2M0DZX, 5B4PRC, 5P1B, 9A5PH, 9K2/VO1DZA, AA1UI, AA3GZ, AA7FV, AE2EA, AJ8S, CE3YP, CX8AT, DB1NN, DB2GM, DC7JZB, DC8SE, DF0OV, DF1QQ, DF6DOM, DG2HSI, DG4NOB, DG5NET, DG7JT, DG7RJ, DG8OAC, DJ0ABR, DJ6OL, DJ6TE, DJ7AO, DJ7KA, DJ8NO, DJ9PC, DK0EP, DK2AMS, DK3IT, DK4TJ, DK7FD, DK7IO, DK8JP, DK8KV, DK8UU, DK9MS, DL/G6GLG, DL1DUZ, DL1DWM, DL1FX, DL1GKK, DL1MF, DL2JA, DL2NEP, DL2SBA, DL2XL/P, DL3GAK, DL3GBE, DL3KBP, DL3NGN, DL4ABB, DL4KAG, DL4VM, DL4YCZ, DL5RBD, DL5UDO, DL6NL, DL8FCL, DL8MFH, DL8SEL, DL8YCA, DM1RG, EA1KV, EA3FLN, EA4DUT, EA4URA, EA5CHA, EA5CYA, EA5EJG, EA6ALL, EA6FG, EA6GK, EA7HPM, F1JSC, F1VMV, F4GMT, F4HJH, F4HKY, F4KIX, F5VBD, F5VNE, F6CCH, G0FCH, G0FTD, G0HAE, G0HYT, G0PKT, G1OKK, G1RRR, G3JKF, G3OVH, G3RMK, G3TBL, G3VFC, G3VXF, G3WDI, G3WKW, G3YHM, G3YSX, G4ALH, G4DJB, G4FBA, G4HSK, G4HSO/M, G4JVF, G4MKR, G4XCS, G5MW, G6CJB, G6JVT, G6NQO, G7GGK, G7PKG, G7VJR, G8AXA, G8LIK, HA5EAR, HB0QRP, HB9ADJ, HB9BAX, HB9CUZ, HB9DWR, HB9FKP, HB9LU, HB9PLH, HB9TJM, HB9VQQ, I0NAA, I2GPG, IK1NET, IQ5LU, IQ6KX, IU1DZZ, IU5HES, IU5HKU, IU5HQX, IW0RQJ, IW3SLQ, IZ4LXP, IZ5MMH, IZ6BYY, K0KQ, K1ADR, K1BZ, K1BZ/3, K2UA, K3EA, K3RWR, K3TEE, K4AA, K4BNT, K4COD, K4HAS, K4MEA, K5XL, K5ZRR, K7DR, K7ZT, KA3BWP, KA4M, KB2SVD, KC1BJT, KD6RF, KD8ZVI, KE5YKP, KG2IX, KI2L, KJ4RV, KK1D, KM4RKT, LA6LU, LA9DTA, LA9NKA, LU5ALE, LZ0DLS, M/VK5ZFJ, M0AZE, M0COM, M0IGK, M0KZX, M0MVA, M0XDC, MM0EFJ, MM0HVU, MM1BTJ, MM5AGM, N4NVG, N5GDM, N8FWG, N8NOE, NO8D, NV8B, OE1RMS, OE1RPW, OE3KFB, OE4DNS, OE5FXC, OE6PWD, OH5YR, OH6MQM, OK1FCX, OK1RPL, OK2SAM, OM1AI, ON0VA, ON2BV, ON4OV, ON7DS, ON7DY, ON7FLY, ON7KB, ON7SD, OZ1PIF, OZ2JBR, OZ7IT, OZ8PZ, PA0ANH, PA1EJO, PA1RC, PA2W, PA2WO, PA3CWQ, PA3DSC, PA3GUV, PA7AL, PA7SL, PD0AG, PD4JSE, PE1FRJ, PE1NWL, PE1RFF, PH3NK, PU3WSF, QA5IQA, QA5IQB, R2DEX/3, R7KAZ, RC2FB, RW3ADB, SA2KNG, SI9AM, SM3UQS, SM5DAJ, SM6KWJ, SM6STI, SP9UOB, SR5WAW, SV1DAR, TF3HZ, UA3DJR, UB3AIH, UR4LRH, UR5FFC, UX0DL, VA3UAL, VE1YY, VE2DPF, VE3GEN, VE3LC, VE3PLE, VE3ZLB, VE7PGB, VK1UN, VK6PG, W0BY, W1BUR, W2RCL, W3FJD, W3GXT, W3HH, W3PM, W4EPM, W4KZK, W4MO, W8LRA, W8MV, W9MCP, WA1DLZ, WA3DNM, WA4DT, WA8KNE, WA9WTK, WB3EGK, WB4CSD, WD4AHB, WG1V, WO3T, WV0Q, WW1I, WX4D, WY1R, YO5TP, ZJ4ERM
Stations hearing me
Heard by: 2E0DSD, 2E0FSI, 2E0JFY, 2W0DOE, 5P1B, AI4RY, DC5AL-R, DC7JZB, DC9PI, DD9FY, DF2JP, DF5FH, DF5MV, DF6SM, DF8OE, DG0OPK, DG2HSI, DG7RJ, DJ0ABR, DK2AMS, DK3SML, DK3SML/RX2, DK5SDJ, DK6UG, DK7FD, DK7IO, DK8FT, DK8FTA, DK8FTB, DK8JP, DK8JP/1, DL/PA0EHG, DL0HT, DL1GCD, DL1GKK, DL1HI, DL1KAI, DL2JA, DL2ZZ, DL3GAK, DL3NGN, DL4EAI, DL4MFC, DL6OW-R, DL8FCL, DL8YCA, EA1FAQ, EA2RKO, EA4BPN/P, EA4GPZ, F/PE3ES, F/PE3ES, F1EHM, F1ING, F1JSC, F1VMV, F4GFZ, F4HJH, F59706, F5LHF, F5OIH, F5VBD, F6EMC, F8AOF, G0HAE, G1RRR, G3JKF, G3OVH, G3ZIL, G4CPD, G4DCP, G4DJB, G4FBA, G4HZX, G4IKZ, G4XCS, G7PKG, G8AXA, G8EPA, GW4HZA, HB9ADJ, HB9FZG, IK1NET, IU1DZZ, IU5DAH, IW0RQJ, IZ4LXP, IZ5HML, IZ5MMH, IZ6BYY, K3EA, K3RWR, K4COD, K4RCG, K9AN, KA3JIJ, KC4RSN, KJ4RV, KK1D, KK1D, LA3JJ/RX2, LA9JO, LA9ZMA, LX1DQ, M0IGK, M0XDK, M1GEO, N2NOM, N4XWC, NL8992, OE1RPW, OE3KFB, OE6PWD, ON5KQ, ON7KB, ON7KO, OZ1PIF, OZ2JBR, OZ7IT, PA0MBO, PA2W, PA3CWQ, PD0PNQ, PH2M, PI4THT, PI9ESA, SM0EPX/RX2, SM3UQS, SM6WZI, TONDA, UX0DL, VE3NFK, W1BUR, W1GJM, W2CXM, W3GXT, W4EPM, W4HOD, W4MO, W4MO, WA3DNM, WA9WTK, WD4AHB, WX4D, ZS6KN
Understand FSQCALL
FSQCALL Frequencies
Region 1
80m 3588 kHz USB (sunset to sunrise)
40m 7044 kHz USB (sunrise to sunset)
30m 10144 kHz USB (local day, DX night)
Region 2
80m 3594 kHz USB (sunset to sunrise)
40m 7104 kHz USB (sunrise to sunset)
30m 10144 kHz USB (local day, DX night)
Region 3
80m 3580 kHz USB (sunset to sunrise)
40m 7105 kHz USB (sunrise to sunset)
30m 10149 kHz USB (local day, DX night)
FSQ is a Fast Simple QSO mode for MF/HF. It works well under NVIS and sunrise/sunset conditions on the lower bands, and also works well for short skip on higher bands. It can also be used on VHF FM, and clearly has a much wider useful range of operating conditions that other more conventional digital modes. Sending speed can be varied between 20 and 60 WPM.
FSQ is designed for simple but effective 'Chat' operation, rather like phone text messaging or Skype™ chat; fast and easy to use. You don't use 'overs' as you would with a conventional digital or voice mode. It is highly suited to net operation. You just type a sentence and press Enter.
An important factor in the design of FSQ is that no synchronising process is required to locate and decode the received characters. Lack of sync means that reception is much less influenced by propagation timing changes that affect almost all other modes, since timing is quite unimportant; it almost completely eliminates impulse noise disruption; and it also contributes to very fast acquisition of the signal (decoding reliably within one symbol of start of reception). Fast acquisition removes the need for addition of extra idle characters at the start of transmission, and this leads to a very slick system. Add high resistance to QRM and QRN, thanks to the low baud rate, and you have a system so robust that it does not need error correction.
Sensitivity is believed to be about -13 dB SNR at 6 baud, and -16 dB SNR at 3 baud. That's about 10dB better and several times faster than 12 WPM Morse.
Incremental Keying
FSQ uses Offset Incremental Frequency Keying (IFK+), a type of differential Multi-Frequency Shift Keying (MFSK) with properties which make it moderately drift-proof and easy to tune. IFK+ also has excellent tolerance of multi-path reception.
IFK was developed by Steve Olney VK2XV. IFK+ (with code rotation) was proposed by Murray Greenman ZL1BPU and first used in DominoEX. IFK+ prevents repeated same tones without complex coding, and provides improved rejection of propagation-related inter-symbol interference. In the context of sync-less decoding, the IFK+ code rotation also prevents repeated identical tones, which could not have been detected by this method.
Efficient Alphabet
In FSQ, a relatively high typing speed at modest baud rate comes about because the alphabet coding is very efficient. All lower case letters and the most common punctuation can be sent in just one symbol, and all other characters (the total alphabet contains 104 characters) in just two symbols. (The alphabet is listed below). This is a simple example of a Varicode, where it takes less time to send the more common characters. The character rate is close to six per second (60 WPM), the same as RTTY, but at only 1/8th of the baud rate. (RTTY has only one bit of information per symbol, 7.5 symbols per character, and wastes a third of it's information on synchronization, and despite this, works poorly on HF).
No Sync
Another important factor in the design of FSQ is that no synchronising process is required to locate and decode the received characters. Lack of sync means that reception is much less influenced by propagation timing changes that affect almost all other modes, since timing is quite unimportant to FSQ; it almost completely eliminates impulse noise disruption; and it also contributes to very fast acquisition of the signal (decoding reliably within one symbol of start of reception). Fast acquisition removes the need for addition of extra idle characters at the start of transmission, and this leads to a very slick system. Add high resistance to QRM and QRN, thanks to the low baud rate, and you have a system so robust that it does not need error correction.
Arbitrary Sending Speed
Unlike most other modes (the exceptions are LF modes JASON and WSQ2), the FSQ receiver operates without needing any information about the sending speed. It will operate from 2 baud to 6 baud, and anywhere in-between, with no changes to settings. The speed tolerance of FSQ is very wide, in excess of 3:1. This is completely unique to FSQ, and gives operators great flexibility. The slower speeds are more robust and slightly more sensitive.
Four sending speeds are provided, 2, 3, 4.5 and 6 baud (approximately 20 to 60 WPM), which the receiver will decode with no change of settings. While the default speed is 6 baud, 4.5 baud is generally more reliable unless conditions are excellent.
Chat Operation
FSQ is designed for simple but effective 'Chat' operation, rather like phone text messaging or Skype™ chat; fast and easy to use. You don't use 'overs' as you would with a conventional digital or voice mode. It is highly suited to net operation. You just type a sentence and press Enter.
Directed Messaging Option
In addition, the FSQCall program, which operates FSQ, operates by default in an Active (Selective Calling) mode, which provides automated functions, and is also useful for net and emergency operation; as it provides network management, link establishment and order and reporting features. FSQCall is based on the FSQ digital modem, but adds numerous Selective Calling functions. It is now also widely used for chat QSOs because the protocol is easy to learn and it offers junk-free reception. Directed Messaging (Selective Calling) is described briefly below.
Directed Telemetry
Telemetry can also be directed to specific stations, or to all stations, and also to specific files at each station. Repeated telemetry frames sent to the same address and file places the data in the same file in sequential order. Telemetry can also of course be relayed, or sent from a third-party program via FSQCall.
Directed Image Transfer
FSQ can also be used to transmit and receive good quality pictures using special formats that have also been designed for NVIS propagation. The signals are analogue, of similar bandwidth to the FSQ digital transmissions. The transmissions can be used in Chat mode, and in Directed mode can be directed to specific (or all) stations for automatic reception. There are three modes: LO-RES COLOUR, HIGH-RES COLOUR and FSQ-FAX (B&W). Pictures can be transmitted from file photos, scanned documents, drawings and live shots from a web-cam!
http://www.qsl.net/zl1bpu/MFSK/Rules.pdf
Direct download link
http://www.qsl.net/zl1bpu/SOFT/FSQCALL.zip
Understand PSK31
PSK31 Frequencies
PSK31 activity tends to congregate around certain frequencies on the bands which makes finding your next QSO quite straight forward.
Here are the PSK31 meeting spots on HF:
160 meters – 1.838.150 MHz
80 meters – 3.580.150 MHz
40 meters – 7.040.150 MHz
30 meters – 10.142.150 MHz
20 meters – 14.070.150 MHz
17 meters – 18.100.150 MHz
15 meters – 21.070.150 MHz
12 meters – 24.920.150 MHz
10 meters – 28.120.150 MHz
Everyday you can tune into 14.070 MHz and hear the warbling of PSK31, i find this a good place to start for Europe wide contacts.
Macros, Macros, Macros!
There’s a certain amount of repetition that occurs during PSK31 QSO’s, so for this reason all PSK31 software comes with macro functionality. Macros are a great way of reducing the amount of typing you have to do and make for faster more accurate QSOs.
But what the heck do macros do? They’re pre-written responses which you can send at the press of a button. So for example a CQ call macro would look like this:
CQ CQ CQ <your-callsign> <your-callsign> <your-callsign> k
As the program already knows your call sign it will automatically insert it. Pressing the CQ macro button would result in me sending the following PSK31 transmission:
CQ CQ CQ 2E0JCQ 2E0JCQ 2E0JCQ k
This is a simple example, but you can have macros setup that cover almost every eventuality, the most common include the following:
Sending a CQ call
Answering a CQ call
Starting a QSO (<their-call> de <your-call>)
Your station details (Name/Location/Grid Reference/Radio/Antenna etc…)
Ending a QSO (SK)
A number of abbreviations are used during an average PSK31 QSO, these are all borrowed from Morse code abbreviations, which may be familiar to you if you’ve had any CW experience, but for me this was all new so i had to learn it from scratch. Here are the abbreviations i’ve encountered the most during average QSOs…
K = Over
KN = Over (and only the station addressed should respond)
SK = Silent Key (used at the end of a QSO – means you’ve finished transmitting to the other station)
BTU = Back to You
PSKReporter.info
This Reverse Beacon Network website shows you who has heard you on the bands. A number of hams have their PSK31 software setup to automatically report the call signs they have decoded or indeed had a QSO with.
Why is this useful? Well it lets you rest assured that your PSK31 signal is getting out. This was invaluable when i was setting up my new station and software, tweaking the settings until i was in business. This will be of great use if you are setting up and adjusting a new aerial.
Additionally and maybe more importantly to some, it will also allow you to see how far away your PSK31 signal is being heard (or not as the case may be!). Want to see how much difference an extra couple of watts makes? Up the output and send a few CQ calls and within a couple of minutes you will see the results on a nice map:
Use upper side band below 10MHz
Most amateurs will use Upper Side Band (USB) for PSK31 QSOs even when they are on lower frequencies (below 10MHz) which usually require the use of Lower Side Band (LSB).
USB is used so that the frequencies spread upwards from the base digi mode frequency and also because both stations must be using the same side band in order to make contact with each other.
TNX = Thanks
PSE = Please
OM = Old Man (used to refer to any male operator)
FB = Fine Business (good)
GM = Good Morning
GD = Good Day
GE = Good Evening
