Tower 1
Yes, This is a busy tower with 5 HF beams. It is the main tower for
20 Meters housing the 5 over 5 stack at 132' and 65' and a 3 element 20
fixed on South America at 37'. Below the top 20 is the 440 backbone
antenna, a 9 element Yagi at 128' pointed North to AA1K. Then comes
the 2 Meter user node antenna, a Ringo Ranger side mounted at 115'. A
4 element 15, fixed on Asia at 112' and the 2 element 40
meter beam shown at 95' have been removed. Below the low 5 element 20 are the three fixed
beams for South America, a 3 element 15 at 47', the 3 elementt 20 at 37' and
a 4 element 10 at 27'.

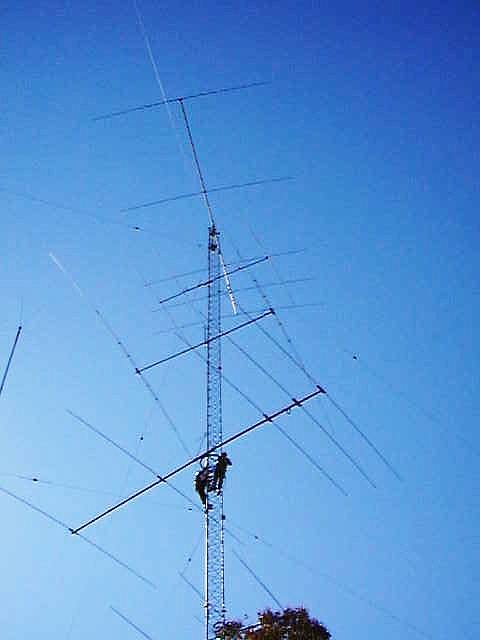

N3HUV and AA1K are shown above working on the TIC rotor for the low 5

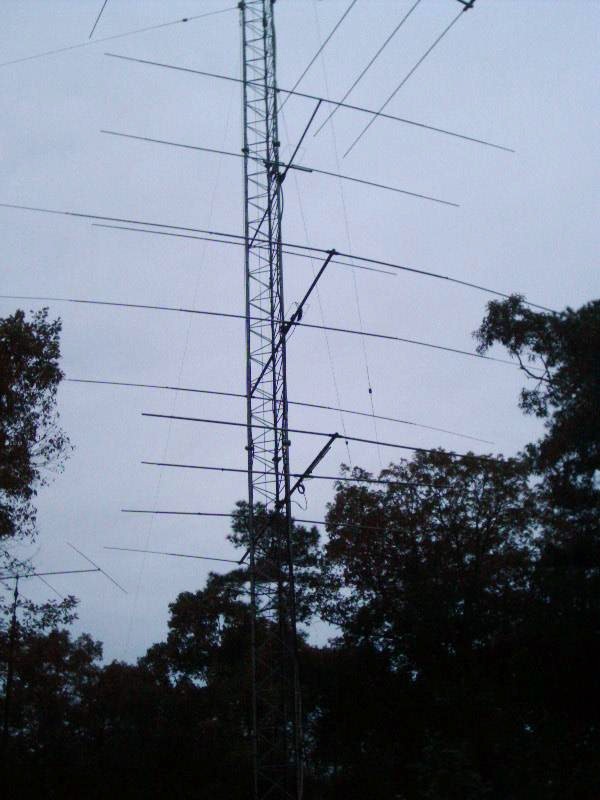

element 20 meter beam. To the right is a photo showing the three low
fixed beams pointed to South America.
|
