KACHINA

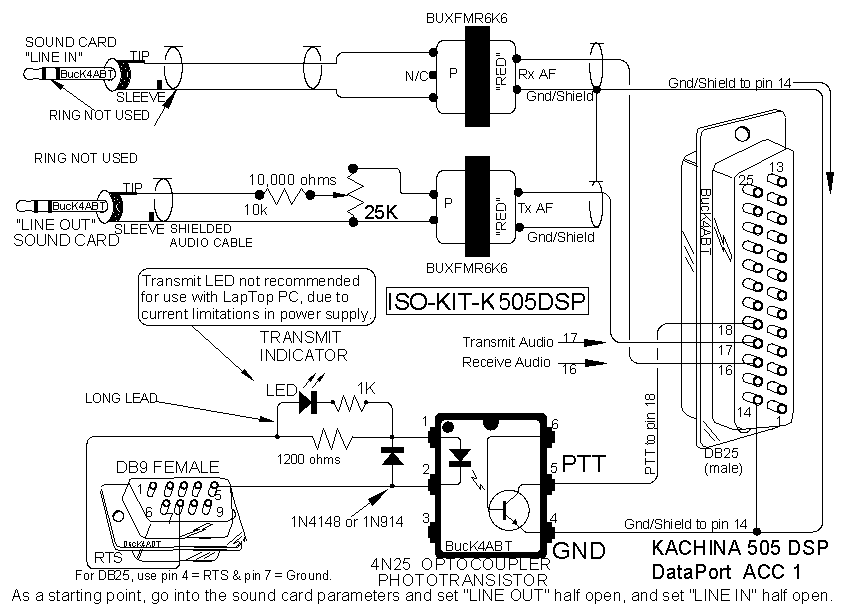

1- KACHINA 505 DSP, HF Transceiver with DB25, 25 pin (female) connector (ACC1) DataPort to PC Sound Card configured for PSK31, and other digital modes. NOTE that this interface utilizes transformer coupling and enables software calls to the PC serial comport RTS signal to execute PTT. Wire interface cable (transceiver end) using a DB25 'male' connector.

2- For the operator who operates the KACHINA 505 DSP at a remote location. This is the alternative that allows the use of the Kachina 8 pin Microphone port for PSK31 input/output. NOTE that "receive" audio is extracted from pin 4 of the MIC jack. This is speaker level audio and is volume controlled.
