ALINCO

1- This is a NEW PSK31 interface release for the ALINCO DX-70.
This interface does not use the 3.5mm external speaker jack. Instead, receive audio is extracted from the ''fixed'' level AF that is available from pin six of the ALINCO DX-70 8 pin (screw-on) MIC port.

2- ALINCO DX-70T HF Transceiver 8 pin (screw-on) mic to PC Sound Card configured for PSK31 BPSK, and QPSK modes.CLICK HERE to view diagram

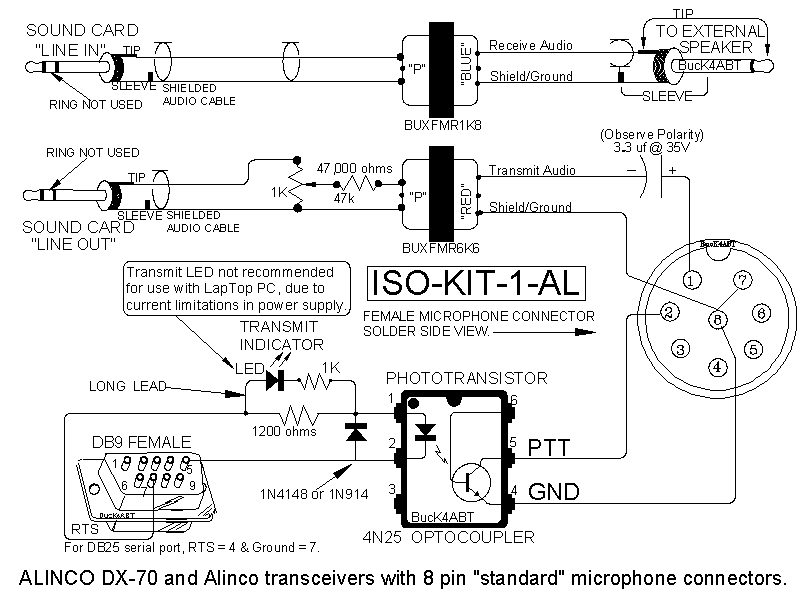

3- ALINCO VHF and UHF transceivers with standard 8 pin microphone jacks interfaced to the PC sound card for FM PSK31, Packet, and SSTV modes.
