 Once AGWPE has been installed and activated, register UI-View 32 and complete the configuration.  **WARNING** DO NOT install PMAP Server until you have installed and registered PMAP 5.0 or 6.0 software

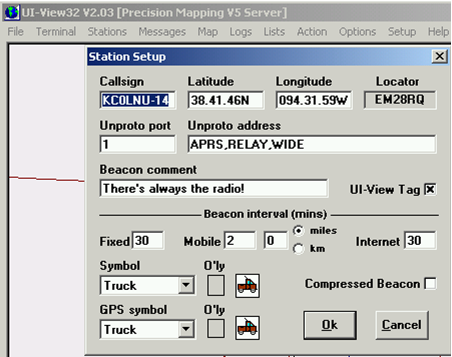

bulletComplete "Station Set-up"
bulletIf mobile, set Unproto Address to APRS, Relay, Wide
bulletIf stationary, set Unproto Address to APRS, the closest Digipeter, and wide
bulletExample:  APRS, W0APR-3, Wide
bulletFixed station beacon should not be less than 30 minutes
bulletAdd your latitude and longitude and you're set.

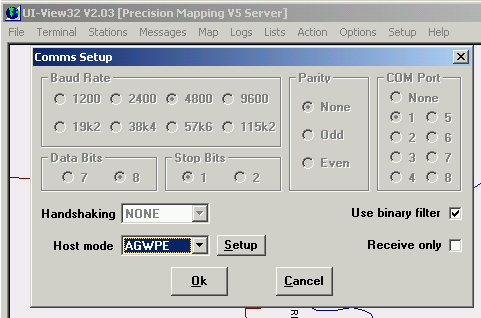

bulletComplete "Comm Setup"
bulletChange host mode to AGWPE
bulletIf AGWPE is activated and your sound card interface is correctly connected to your sound card you should see APRS stations begin to appear.
