Common configuration questions can best be answered by checking out the help files with the software you decide to install.  Here's a few screen shots that may be helpful when trying to configure AGWPE software for the first time.

bulletAGWPE Instructions
bulletDownload the software, save the master zip file in a separate location, and install the content of the zip file in C:/AGWPE.
bulletActivate AGWPE and configure it for use.
bulletSet Serial to Com 1
bulletSet Baud to 1200
bulletChange Port1 to read 144.390, 1200 baud

bulletSet TNC Type to SoundCard to configure your soundcard TNC
bulletSet the baud rates to 1200
bulletSet the clock value to 4
bulletSelect the sound card your interface will be connected to.  In this example, we're using the USB Audio Device
bulletIf multiple sound cards are installed, make sure you select the correct sound card.

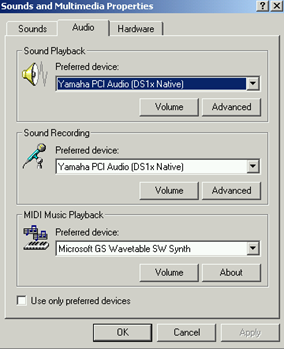

bulletGo to control panel, sounds & multimedia, and the audio tab to ensure the card being used as the TNC is not set as the primary.
