75 meter AM Transceiver

The 'Wheat Box'

  Inside View

 Warning!!!   The linked page displays naked components! Viewer discretion is advised.

  General Highlights
  • Frequency coverage: 3.75 MHz to 4.00 MHz, with about 20 KHz of 'overcoverage' at band ends.
  • Front panel layout:
    • Backlit S/RF meter
    • Backlit Frequency Readout
    • Controls (L-R):
      • IF Bandwith Selector
      • RIT Selector
      • RIT Tune
      • PWR/AF Gain
      • Main Tuning
    • LED Lamps above Main Tuning (L-R):
      • Transmit indicator
      • RIT enabled indicator
      • 4 KHZ filter selection
      • 8 KHz filter selection
  • Rear panel connections
  • Case interior is fan cooled
  Receiver
  • Basic scheme: single conversion to the 455KHz IF frequency with high side injection.
  • Selectivity:  provided by either a 4KHz or 8KHz Collins mechanical filter, front panel selectable.  (These are the same devices used in the high performance R390A receiver.)
  • S-meter response from an unmodulated carrier input:
    • S0 - No input signal
    • S¼ - 0.3µV (just above AGC threshold)
    • S1 - 1µV
    • Mid-scale - 30µV
    • S9 - 100µV
    • Full scale - 30mV
    • Off scale, almost pegged - 100mV
  • Image rejection:  >75db from two fixed tuned bandpass filters.
  • Digital frequency display resolution: 100 Hz
  • RIT tuning range:  ±4 KHz
  • Tuning rate:  approximately 30 KHz per turn
  • AF output:  3.5 watts RMS into 8 ohms.
  Transmitter
  • Basic scheme - Heterodyne transmitter.
  • The output amplifier stage uses a Motorola MRF148 power FET biased for class AB linear operation.
  • Method of modulation: Linear Series Modulation applied to the driver stage.
  • Power output: 1 watt carrier (4W PEP @100% modulation)
  • Spectral purity: Mixed products and harmonic energy output less than -50dbc, except second harmonic which is less than -45dbc.

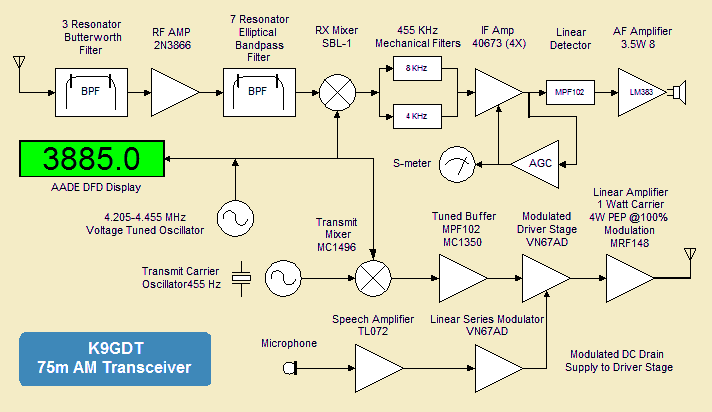

Simplified Block diagram - K9GDT 75m AM Transceiver

  Data Sheets

ThIs document is viewable with Acrobat Reader.

  Why AM?

Why not?  It's no secret that SSB and CW are more effective when the going gets tough.  I operate those modes, too.  I enjoy AM operation because it sounds so good! Also, the folks who operate AM are typically a friendly and courteous bunch, willing to share their considerable technical expertise with fellow hams.
