Gain 10,5dBd, F/B 30dB 3dB-angles: 40,2° hor, 45,6° ver For vertical stacking distance 3,00m |
| Details | 2-El.-2m | 3-El.-2m | 4-El.-2m | 5-El.-2m | 6-El.-2m |
| 7-El.-2m | 7-El.-70cm | 9-El.-70cm | 10-El.-70cm | 12-El.-70cm | 14-El.-70cm |

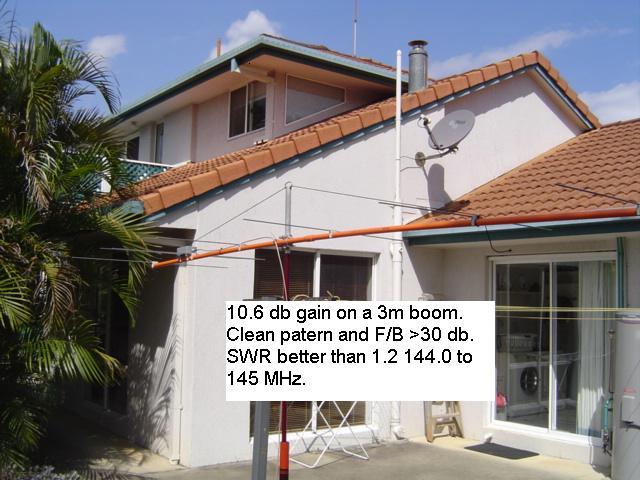

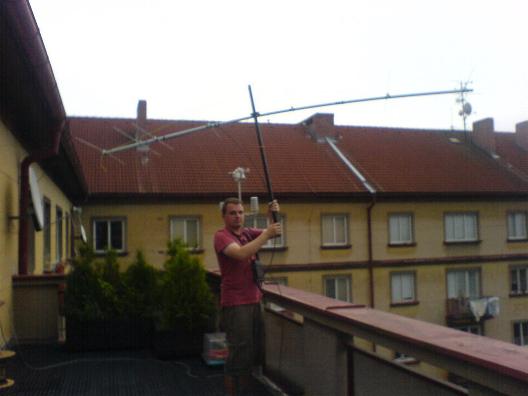

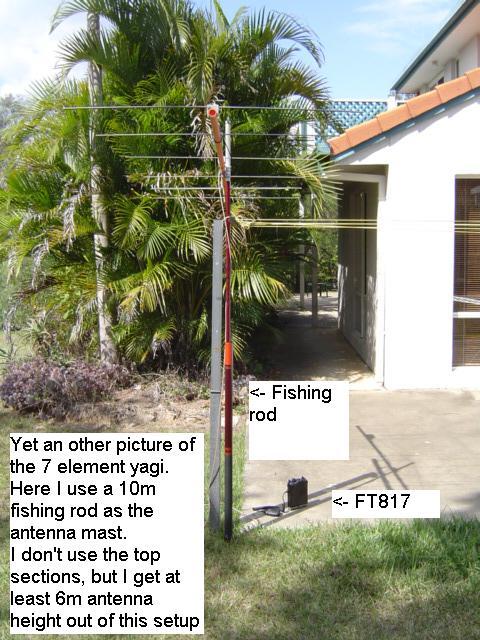

The 7-Element-50Ohm-2m-Yagi, Boom 300cm
|
|

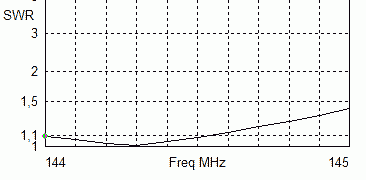

Gain 10,5dBd, F/B 30dB 3dB-angles: 40,2° hor, 45,6° ver For vertical stacking distance 3,00m |
| Position | Lengths 6mm | Lengths 4mm | Lengths 3/4mm | |
| Reflector | 0mm | 1024mm | 1027mm | 1027mm (4mm) |
| Radiator | 320mm | 982mm | 994mm | 996mm (4mm) |
| Director 1 | 460mm | 952mm | 960mm | 967mm (3mm) |
| Director 2 | 935mm | 932mm | 941mm | 947mm (3mm) |
| Director 3 | 1630mm | 918mm | 926mm | 933mm (3mm) |
| Director 4 | 2385mm | 923mm | 931mm | 938mm (3mm) |
| Director 5 | 2985mm | 894mm | 904mm | 912mm (3mm) |
