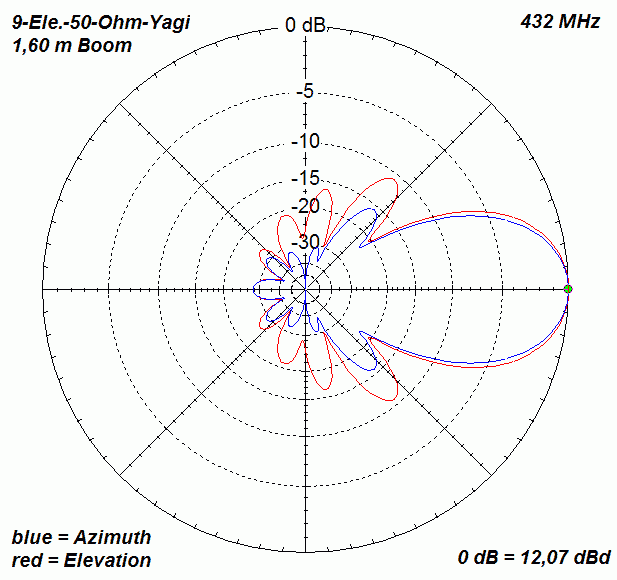

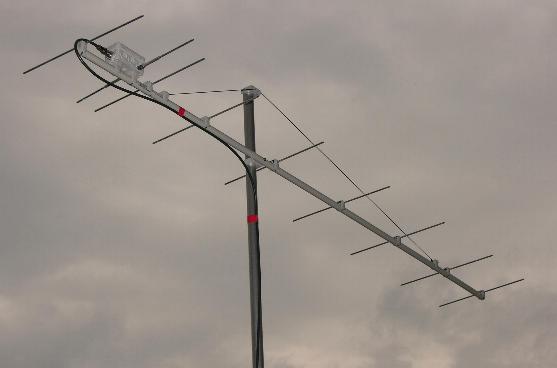

Gain 12,07 dBd, F/B > 25dB Vertical stacking distance 1,15 m 3dB-angles: ver 34,8°, hor 37,8°
|
| Details | 2-El.-2m | 3-El.-2m | 4-El.-2m | 5-El.-2m | 6-El.-2m |
| 7-El.-2m | 7-El.-70cm | 9-El.-70cm | 10-El.-70cm | 12-El.-70cm | 14-El.-70cm |
| Stacked 5-El-2m 25-Ohm new | 7-El.-2m 25+ 28-Ohm new | 8-El.-2m 28-Ohm | 10-El.-70cm 28-Ohm |
|
|

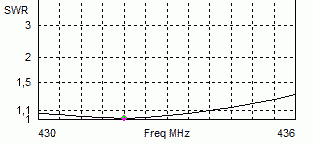

Gain 12,07 dBd, F/B > 25dB Vertical stacking distance 1,15 m 3dB-angles: ver 34,8°, hor 37,8°
|
| Position | Length (4 mm) | Length (6 mm) | |
| Ref | 0 mm | 337 mm | 334 mm |
| Rad | 140 mm | 336 mm | 332 mm |
| D 1 | 195 mm | 313 mm | 308 mm |
| D 2 | 365 mm | 300 mm | 294 mm |
| D 3 | 610 mm | 294 mm | 288 mm |
| D 4 | 875 mm | 291 mm | 286 mm |
| D5 | 1130 mm | 291 mm | 285 mm |
| D 6 | 1385 mm | 293 mm | 288 mm |
| D 7 | 1580 mm | 280 mm | 273 mm |
