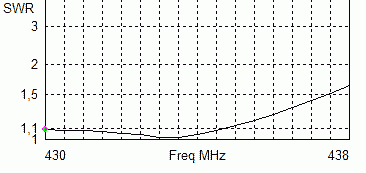

The 14-Element-70cm-Yagi, 50 Ohm, Boom 300cm

Gain 14,2dBd, F/B >20dB

Angles for 3dB:

hor = 27,0     ver = 28,2

Vertical stacking distance 1,70m

  Position Length (3mm) Length (4mm)
Reflector 0mm 338mm 336mm
Radiator 140mm 327mm (4mm) 324mm
Director 1 198mm 308mm 306mm
Director 2 355mm 304mm 301mm
Director 3 585mm 298mm 295mm
Director 4 840mm 296mm 292mm
Director 5 1105mm 292mm 288mm
Director 6 1380mm 290mm 286mm
Director 7 1655mm 288mm 284mm
Director 8 1935mm 287mm 283mm
Director 9 2215mm 287mm 283mm
Director 10 2490mm 288mm 284mm
Director 11 2760mm 290mm 286mm
Director 12 2980mm 287mm 283mm
