19-Ele.-28-Ohm-DK7ZB-Yagi (13,70m Boom)
|
|

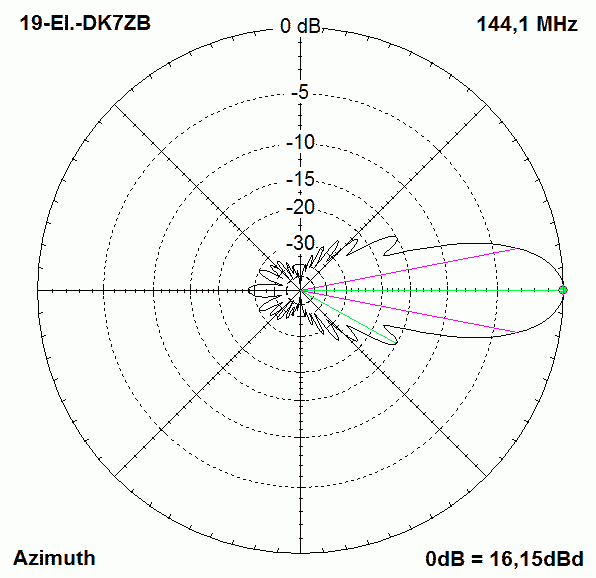

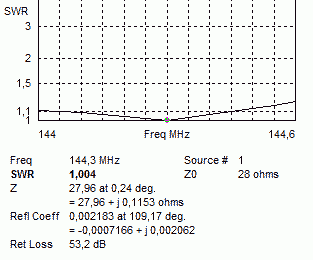

Longest version in the series Gain 16,15dBd F/R >30dB High gain and medium bandwidth, 2MHz for SWR <1,5 good pattern Stacking horizontal 5,39m, vertical 5,22m |

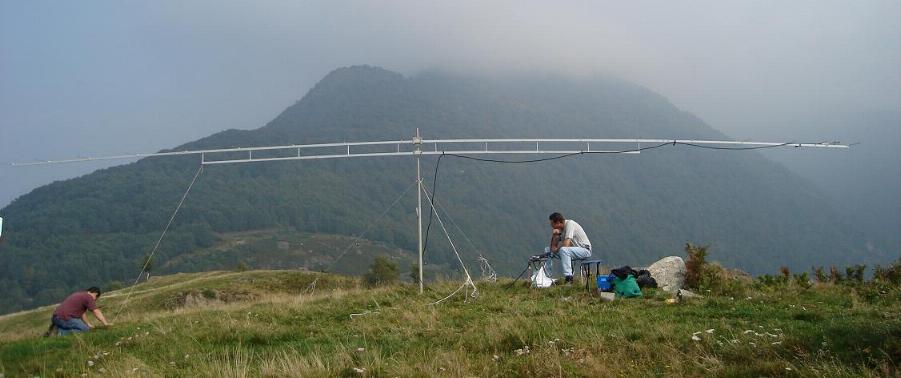

The 19-Ele-Yagi built by Nick, HB9EFK, Alpe del Tiglio, JN46NI

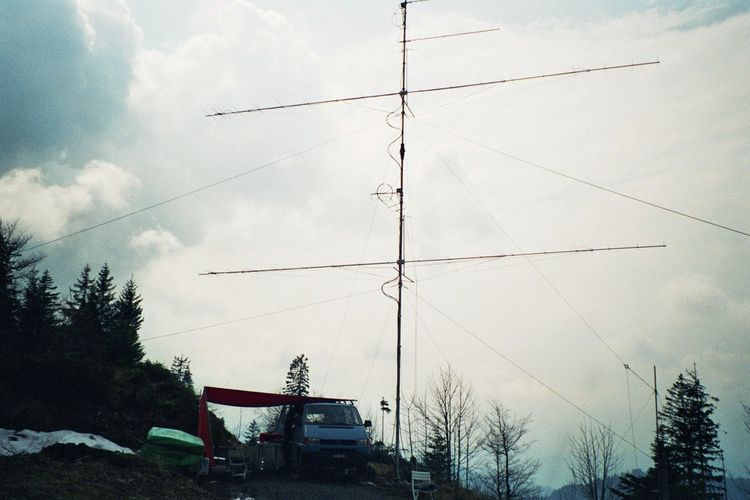

Pictures above and below: The Yagis by Frederic, HB9TTY
 |

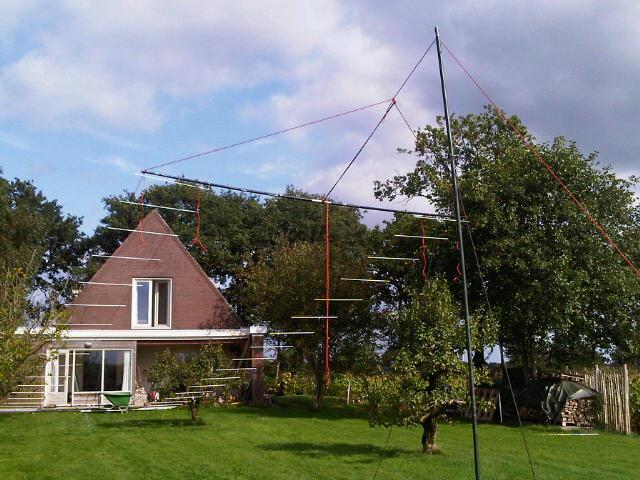

2x19-El.-Rope-Yagi built by Henk, PA0EME |
|

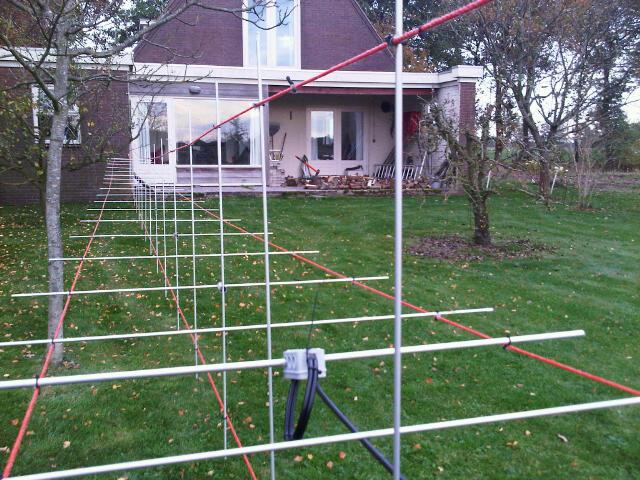

2x19-El.-X-Rope-Yagi built by Henk, PA0EME
|
 |
Lengths and positions of the Elements
The given length of the radiator element is from
tip to tip, including 10mm spacing for the insulated part.
| Element | Position | Length (6mm) |
| Ref | 0mm | 1026mm |
| Rad | 335mm | 986mm (12mm) |
| D 1 | 595mm | 955mm |
| D 2 | 1115mm | 933mm |
| D 3 | 1800mm | 918mm |
| D 4 | 2590mm | 906mm |
| D 5 | 3435mm | 896mm |
| D 6 | 4325mm | 887mm |
| D 7 | 5230mm | 879mm |
| D 8 | 6150mm | 875mm |
| D 9 | 7080mm | 871mm |
| D 10 | 8010mm | 869mm |
| D11 | 8935mm | 868mm |
| D 12 | 9850mm | 866mm |
| D 13 | 10745mm | 866mm |
| D 14 | 11615mm | 862mm |
| D 15 | 12445mm | 859mm |
| D 16 | 13160mm | 877mm |
| D 17 | 13700mm | 858mm |
