Here is a video about building the antenna by Andreas, SV2JAO Link |
||||||||||||
|
2-El.-15m-28Ohm |
2-Element-15m-Yagi with 28Ohm (Ref-Rad)
|
Here is a video about building the antenna by Andreas, SV2JAO Link |
||||||||||||
|
|

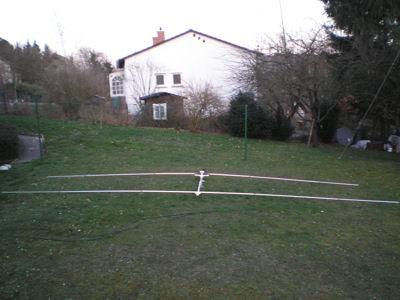

The 2-El.-15m-Yagi built by Attila, DL1NUX |
Dimensions of the 15m-Yagi, 28Ohm, Radiator-Reflector
|
Elements
( 1 half) |
25x2mm |
20x2mm |
16x1,5mm |
Position |
Reflector |
1,00m |
1,50m |
1,11m |
0m |
Radiator |
1,00m |
1,50m |
0,845m |
1,61m |
Free space patterns:
 |
 |
| Azimuth 21,2MHz | Elevation 21,2MHz |
