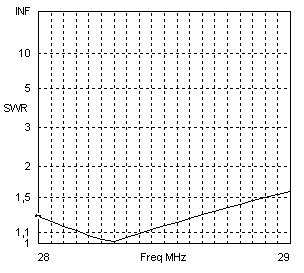

2-Element-10m-Yagi with 50Ohm

MHz 28,0 28,5 29
Gain 4,1dBd 3,7dBd 3,4dBd
F/B 10dB 10dB 10dB

Dimensions of the 10m-Yagi

Elements ( 1 half)

20x2mm

16x1,5mm

Position

Reflector

1,00m

1,68m

0m

Radiator

1,00m

1,465m

1,76m

Free space patterns:

Azimuth 28,5MHz Elevation 28,5MHz
