DK7ZB-Dualband-Beam 12/17 m

The beam has only one feedpoint with 50 Ohm and has an open-sleeve element for 12 m

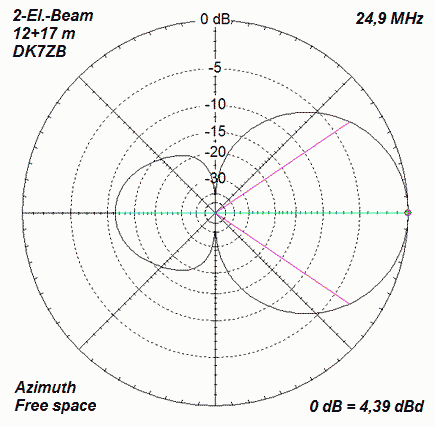

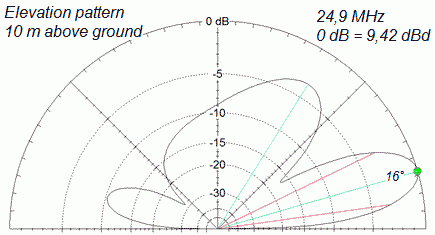

12 m: 4,39 dBd     11,5 dB F/B

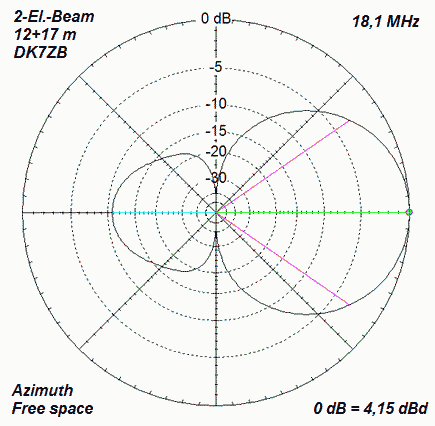

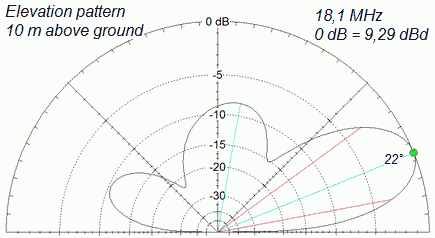

17 m: 4,15 dBd   11 dB F/B

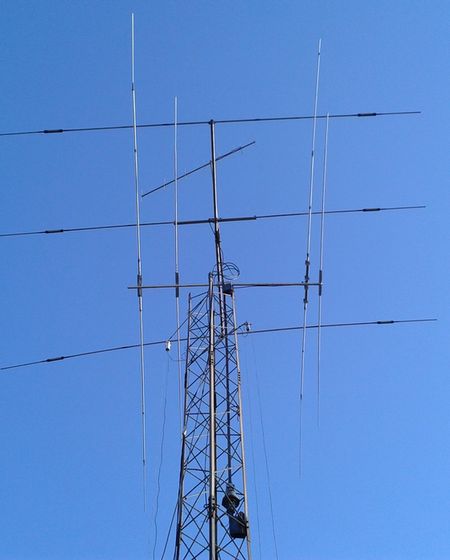

The Yagi built by

Marcos, PY2MR

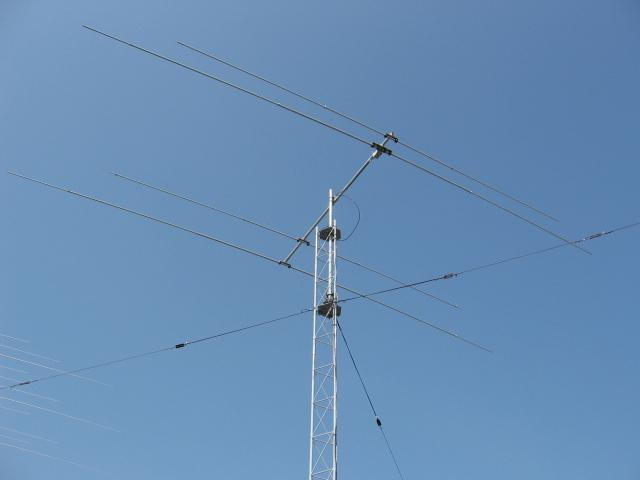

The Yagi built by

Nelu, YO9DL

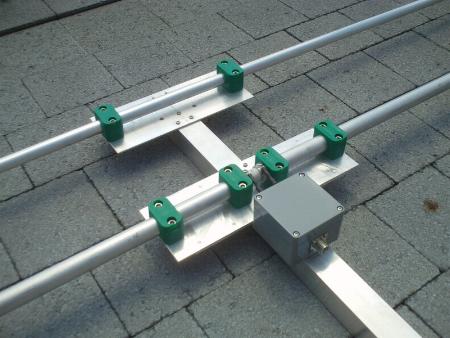

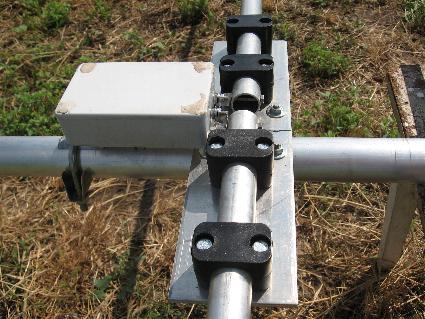

The 2-El.-Open-Sleeve-Yagi built by

Phil, ON4TA

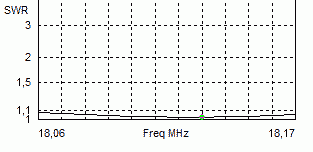

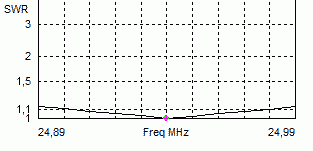

The measurement of the SWR by Phil, ON4TA.

He reports no tuning on 17 m, resonance as expected. The dip on 12 m was a little bit to high and can be shifted with the 12-m-open-sleeve-radiator.

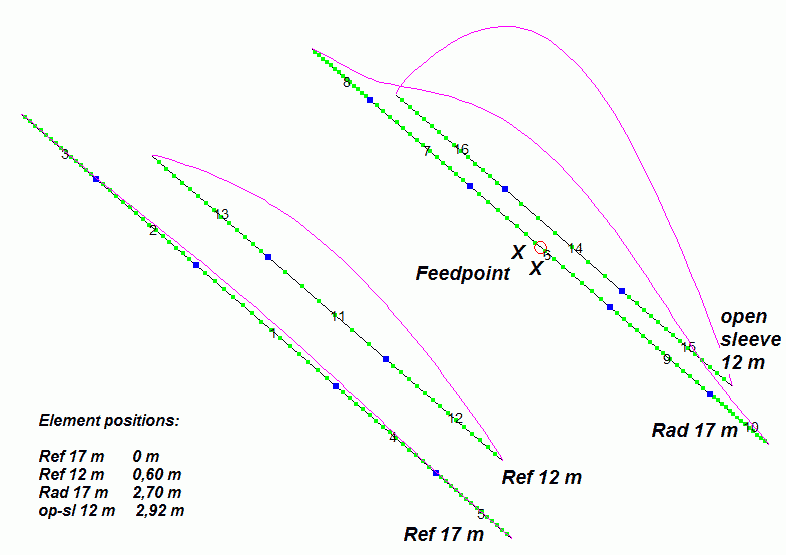

The scheme of the beam with the currents for 24,9 MHz

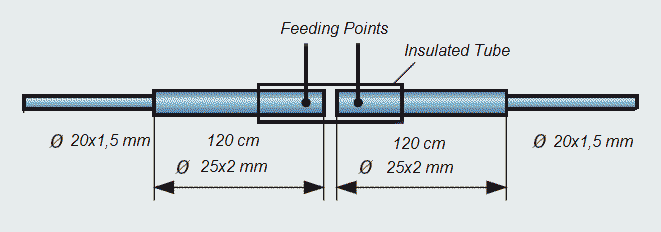

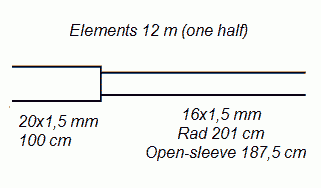

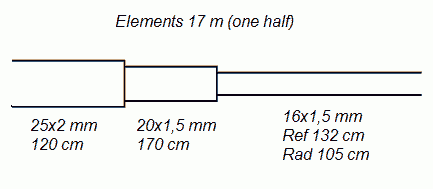

Element lengths for the two bands, keep the outer tubes 15 cm longer for the overlap. The open-sleeve-element for 12 m and the reflectors can be mounted direct above the boom (metallic connection), but do not use big metallic brackets. This can detune the beam!

Feeding with a current balun

The mechanical soultions for the element holding from Nelu, YO9DL

The element construction of Marcos, PY2MR
