The story began when I finished fabricating the azimuth mechanism :

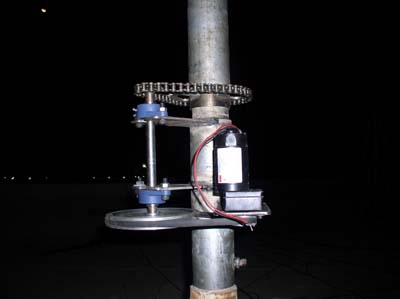

It was midnight, and I couldnt resist installing and testing it on the pole up on the roof! :

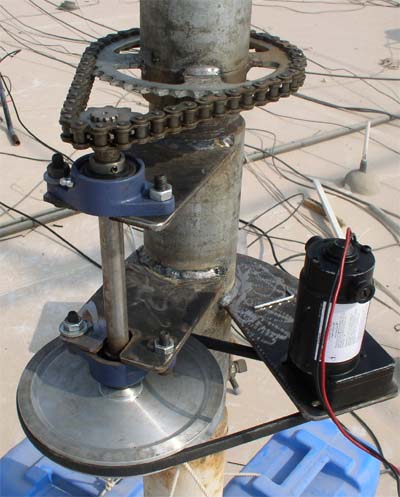

Here was the final job, a 9 RPM gearmotor to a 16:1 over-all reduction ratio. The final RPM was 0.5 :
After installing the dish ring :
and the dish (again, it was dark already, and I insist I should install the 3 meters diameter dish ribs myself alone!, dont try this at home!):
Testing and putting together the position reading circuit.
After finishing the Dish Control Box :
Installing the Azimuth and Elevation Potentiometers :

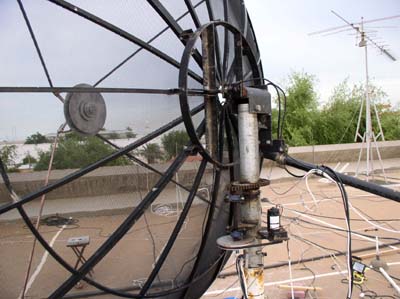

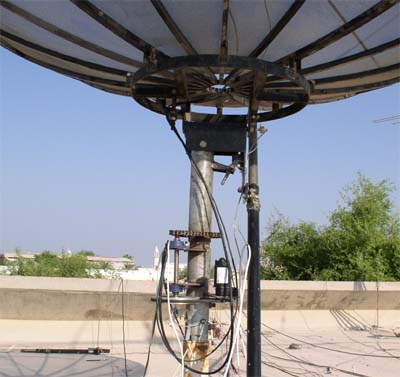

The complete setup after installing the linear arm and power/control cables :
The Patch Feed Assembly, took me a while to fabricate a good and solid bracket out of an old TV antenna!
