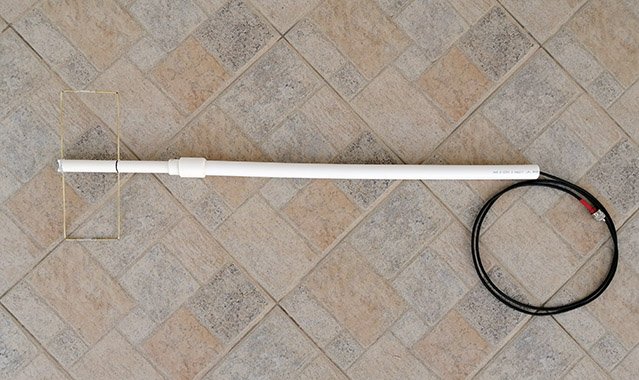

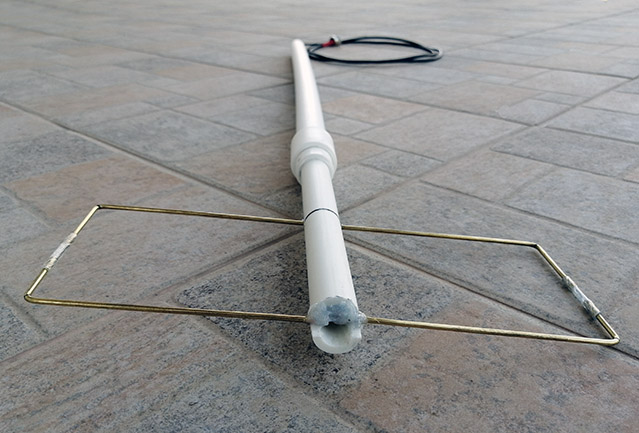

EXCELLENT HOMEMADE MOXON ANTENNA FOR UHF (430 - 440 MHz)

- Cheap, lightweight compact antenna which is easy to made.

- Excellent performance, clean main diagram and amazing Front/Back ratio.

- Moxon antenna has deep and sharp back null in the radiation patern, which sometimes can be very usefull to reject the unwanted interfering signal.

- Gain = 6.15 dBi (4 dBd compared to dipole).

- Antenna has very low SWR across wide frequency range (covers entire UHF band 430-440 MHz).

- Coaxial cable (50 ohm) is connected directly to the driven element.

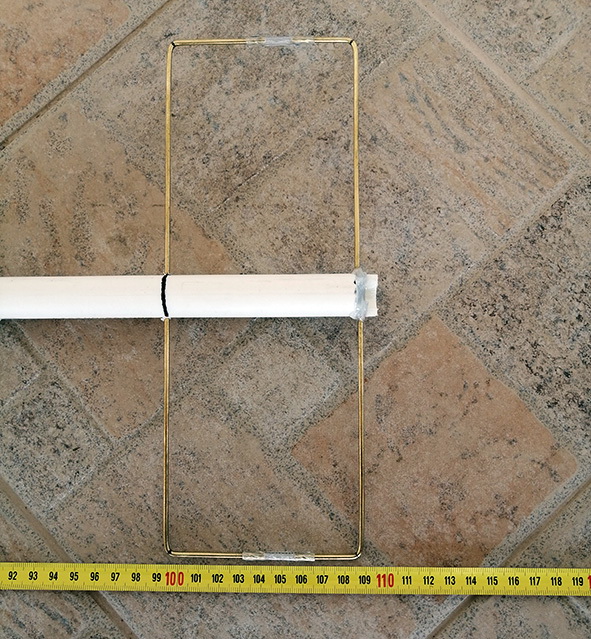

Antenna length is only 247 mm

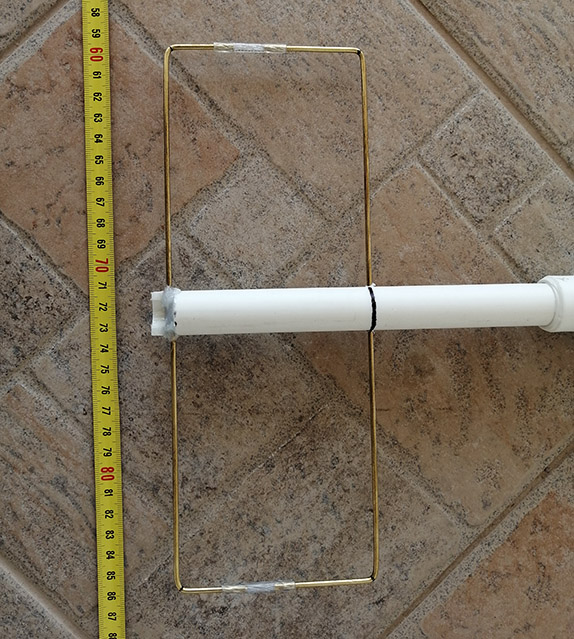

Antenna width is only 92 mm

All elements are made from brass electrode for electric welding 2.5 mm diameter (can be also made of copper wire 6mm2 which is 2.6mm in diameter). Material can bi find in every hardware store

The boom is plastic pvc pipe for plumbing installations.

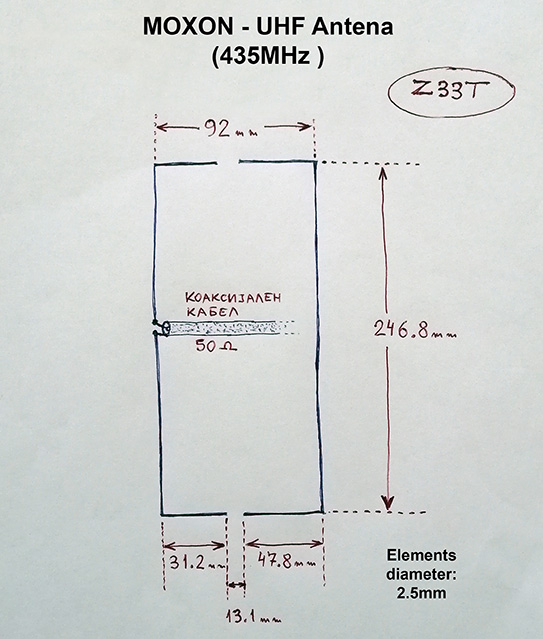

Antenna dimensions according to Moxon Calculator:

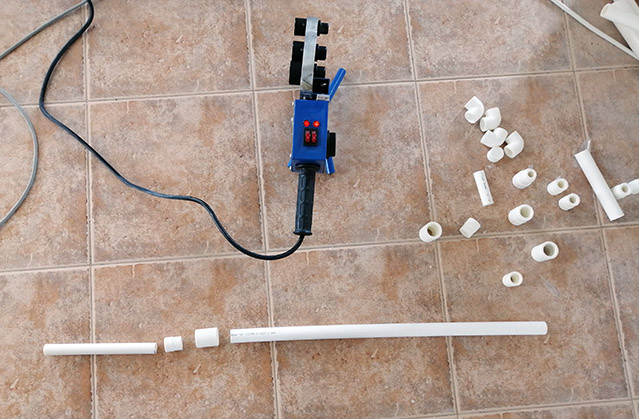

Antenna boom is made from plastic pvc pipes for plumbing installations:

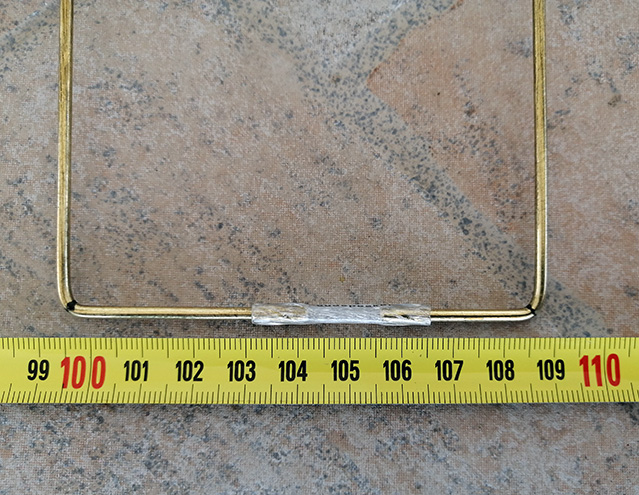

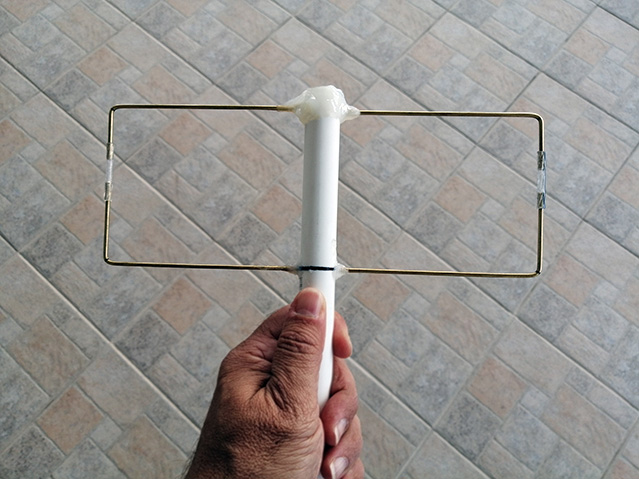

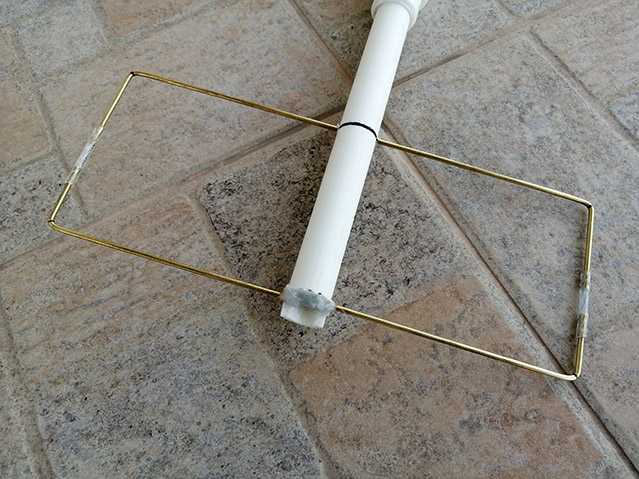

Two tiny plastic tubes ensures constant distance between Driven element and Reflector on both sides:

Antenna elements definition in the antenna modeling software:

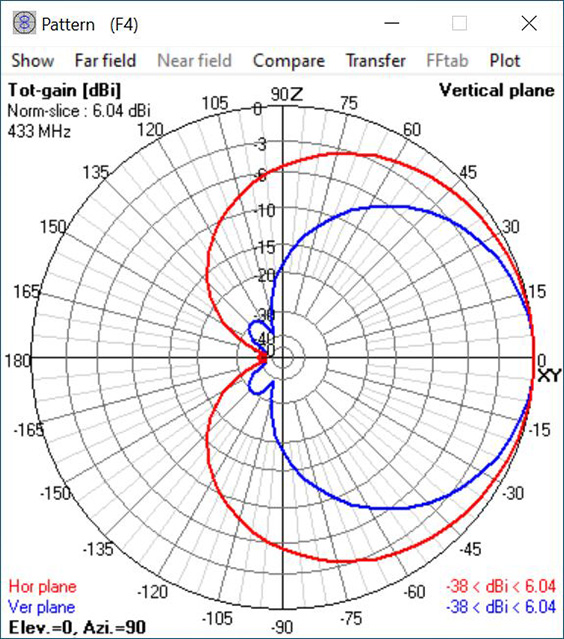

Antenna radiation diagram in Horizontal and Vertical plane:

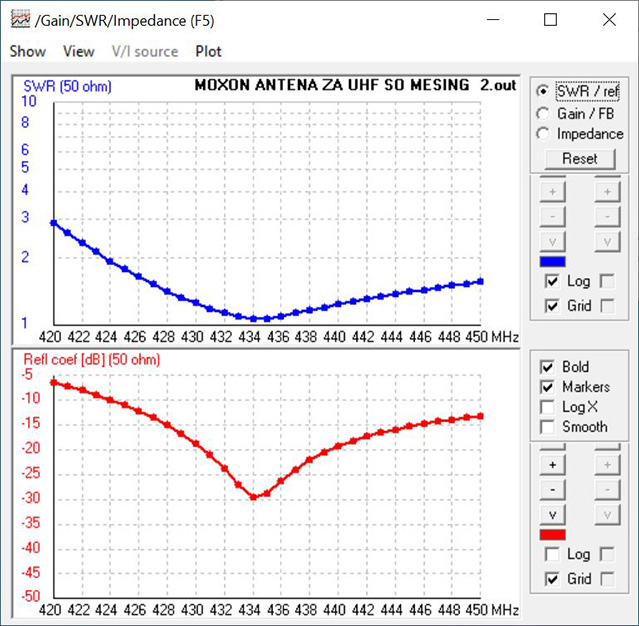

SWR and frequency bandwidth of the antenna:

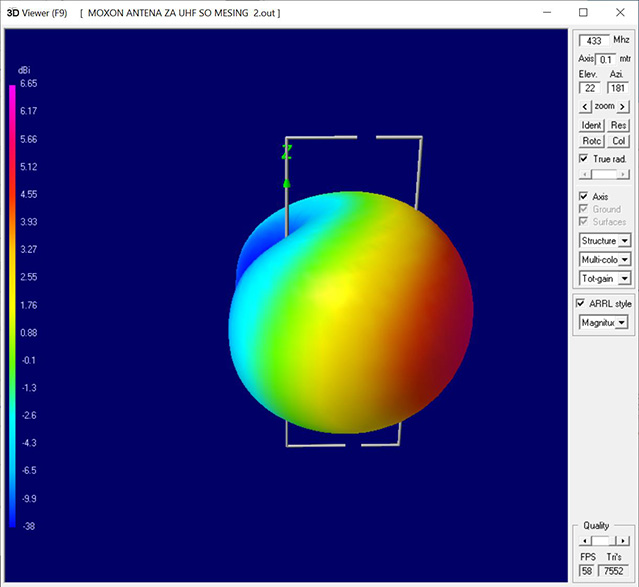

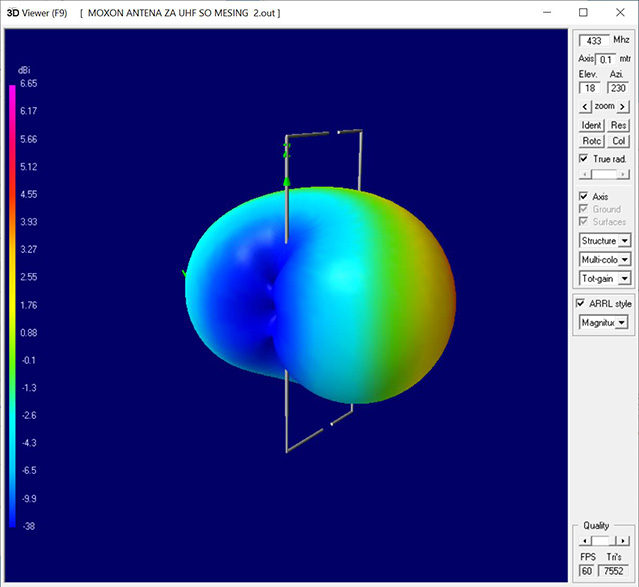

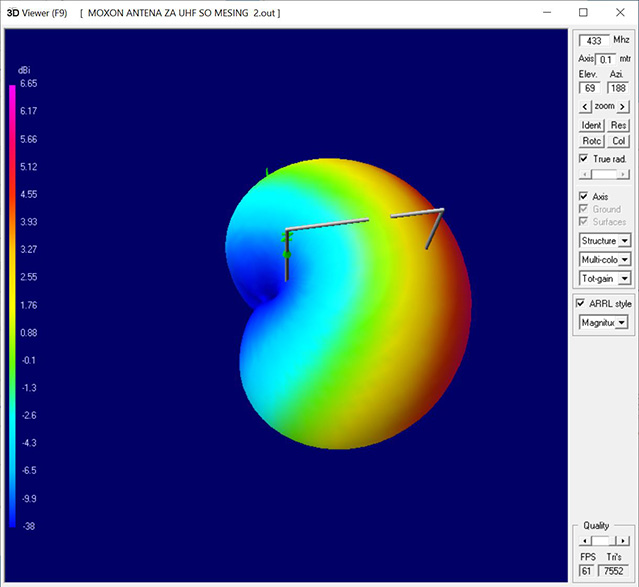

3D Radiation Pattern:

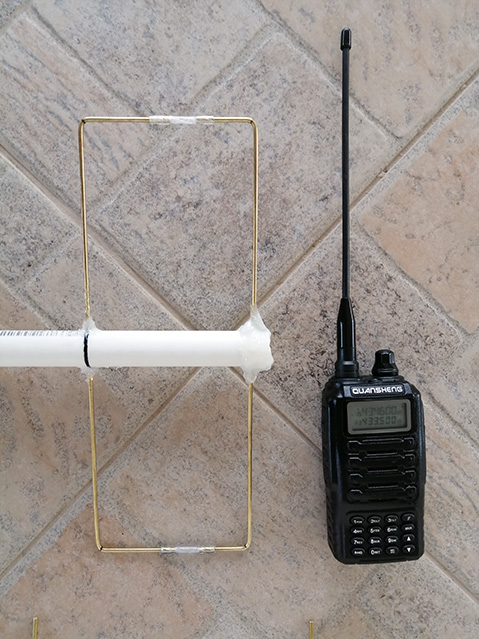

Moxon antenna and 5 element UHF Yagi next to the little handheld transceiver:

- - - - - - - - - - - - - - - - - - - - - -

Mile Kokotov (2020)

Mile Kokotov, M.Sc. is industrial engineer manager and has a master`s degree in technical science with almost 40 years expirience in RF-technology.
