ADF5000/HMC438 microwave prescaler by 10









Microwave prescaler by 10 up to 18GHz (4...18GHz according datasheet).
Maximum input level: +10dBm, output level: aprox. 0dBm.

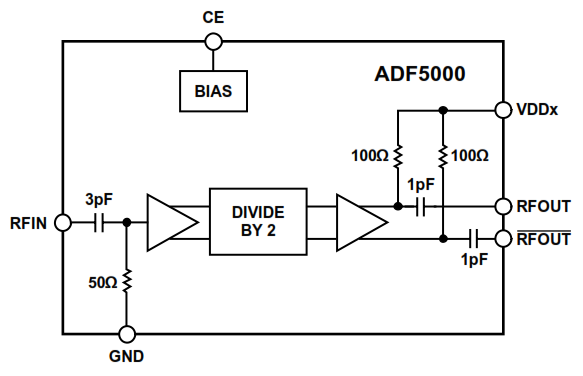

Built by cascade ADF5000 and HMC438. Easy and not very expensive solution to upgrade the frequency counter.










Schematic ADF5000 prescaler
Sprint Layout ADF5000 PCB (FR4, 0.6mm)
