100W guitar valve power amplifier
I started to build a clone Hiwatt Amplifier - DR103 CUSTOM HEAD 100
output power : 100 W from 4 x EL 34 ; Output transformer Dynacord DCN 307 ;
preamplifier : 3 x ECC 83 and 1 x ECC 81 (all NOS tubes);
details, schematics and layouts can be found Mhuss webpage :

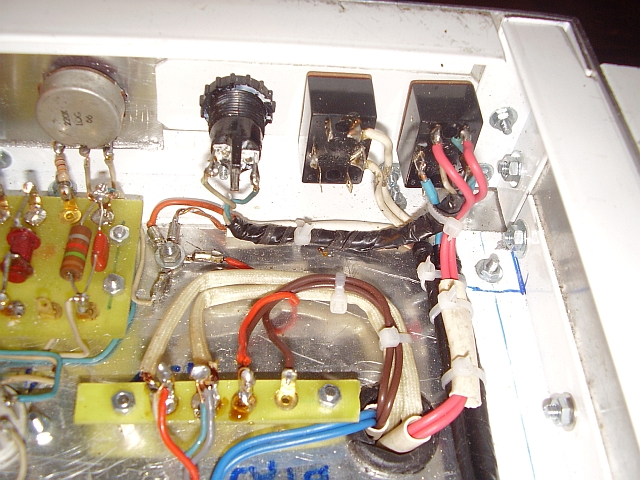

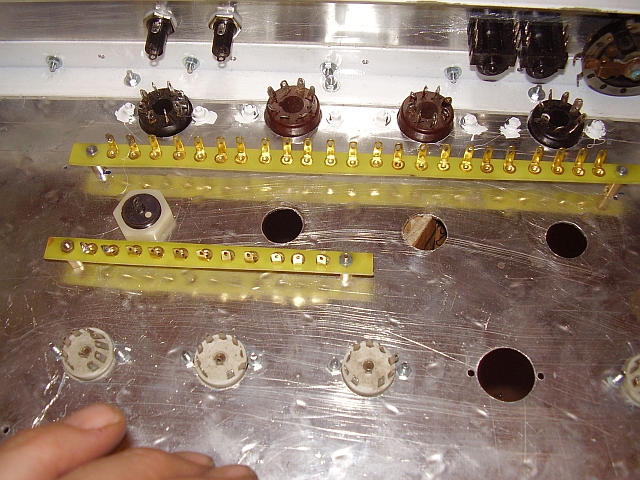

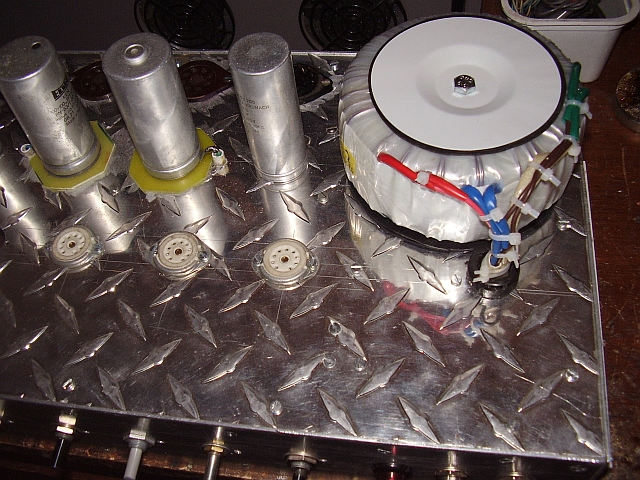

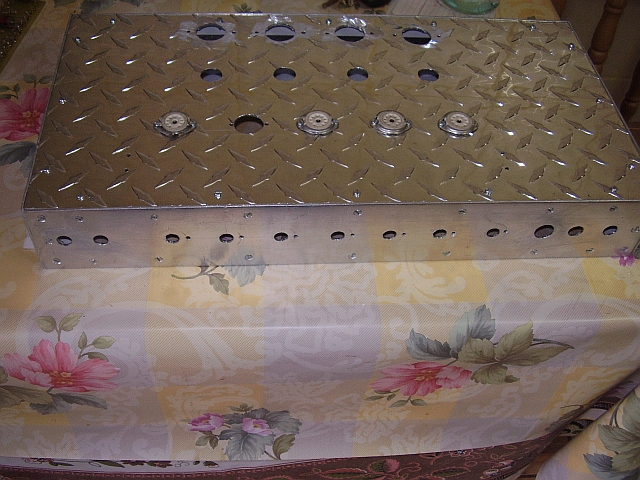

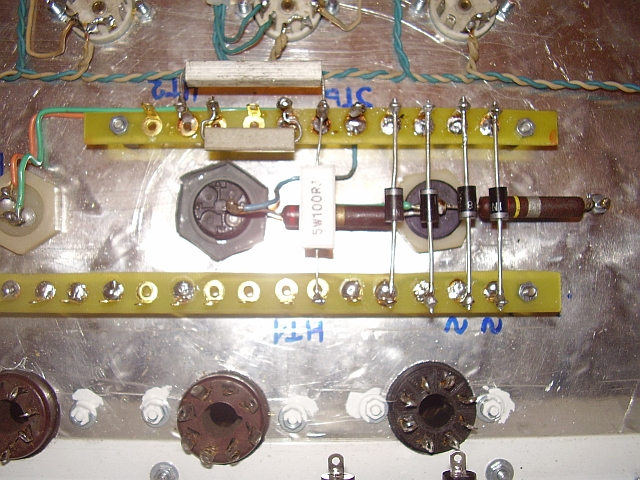

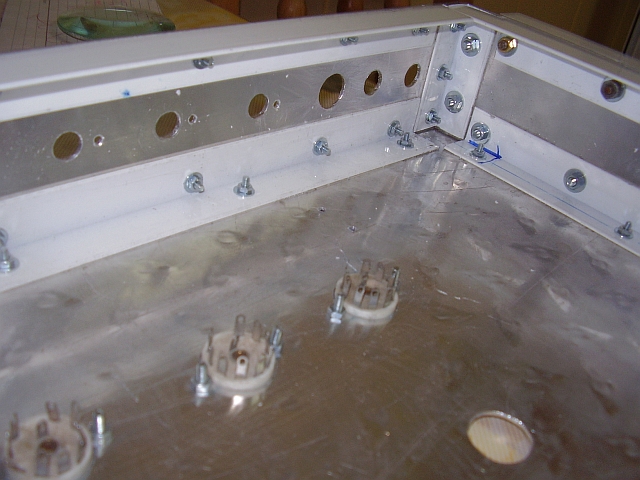

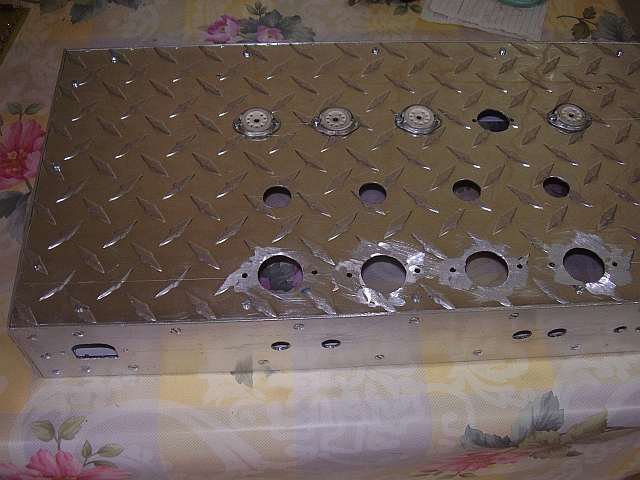

The chassis (made from aluminum)

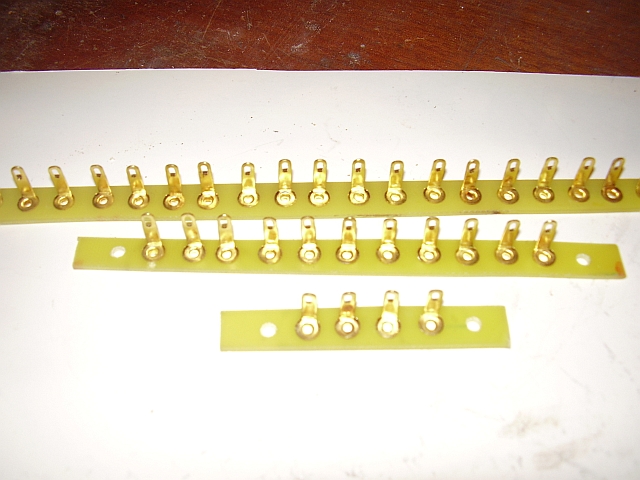

the 3 turrets

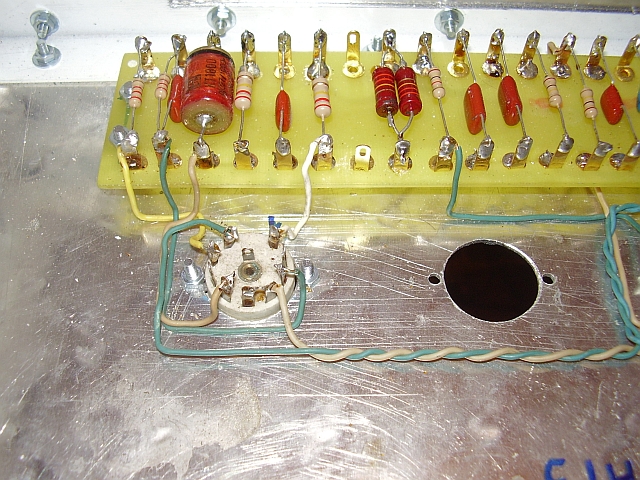

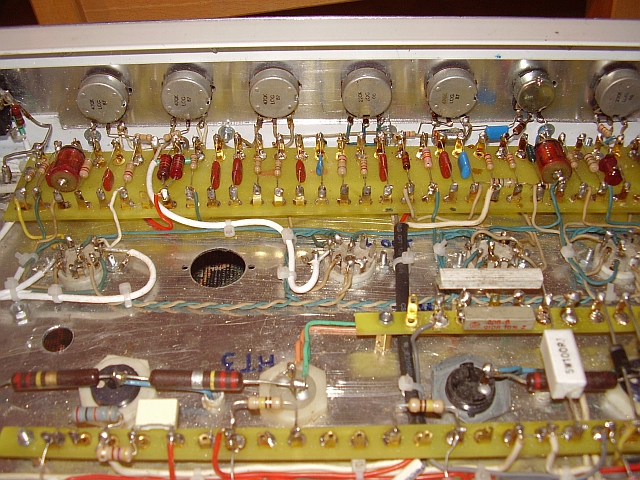

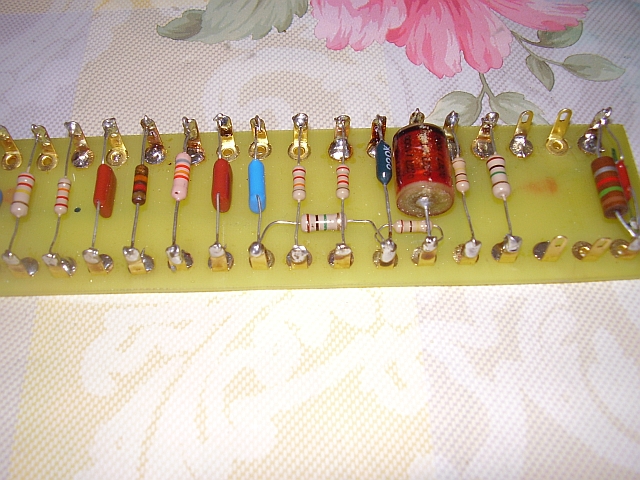

Populated turret board

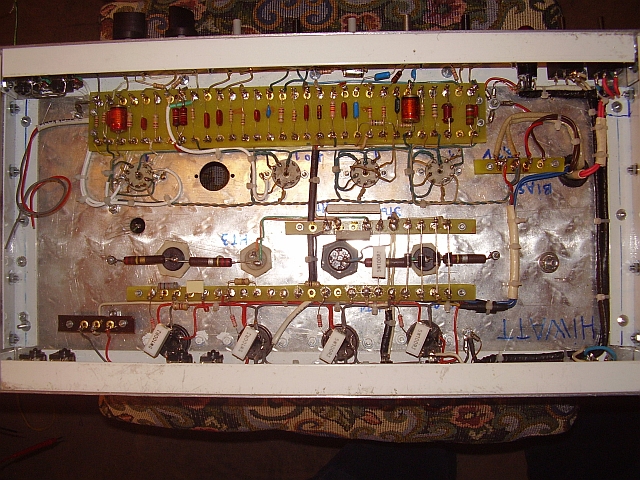

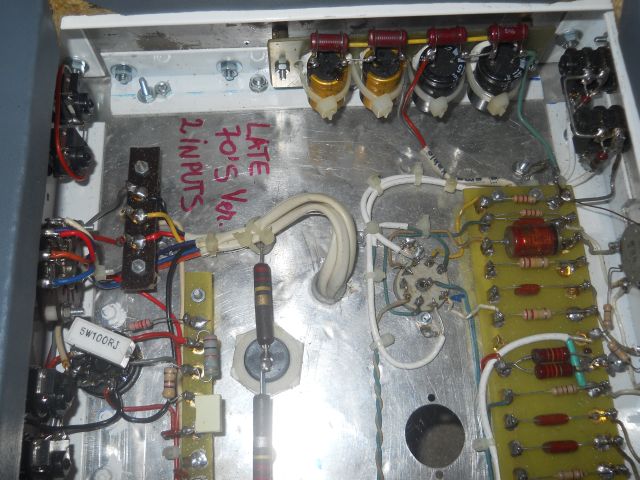

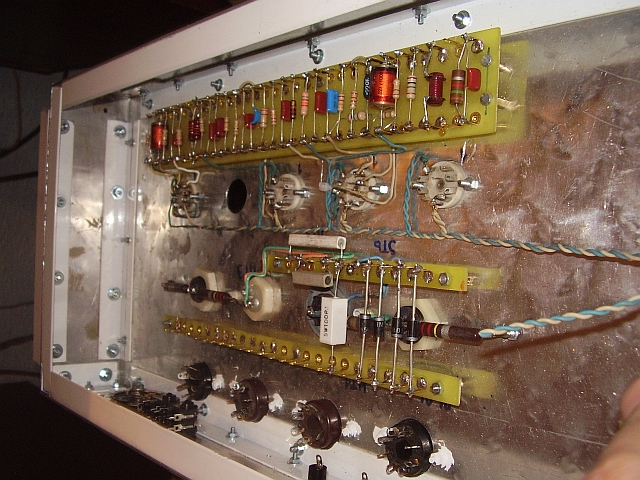

Amplifier in progress
Filaments test

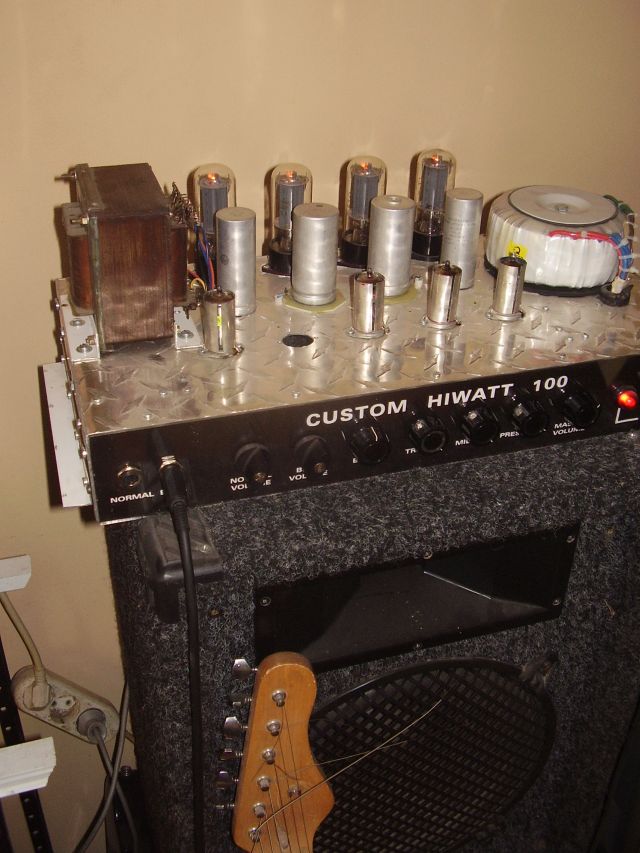

And first sound test

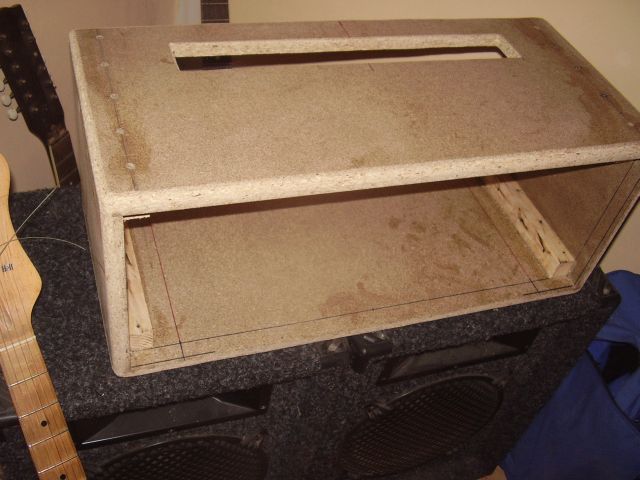

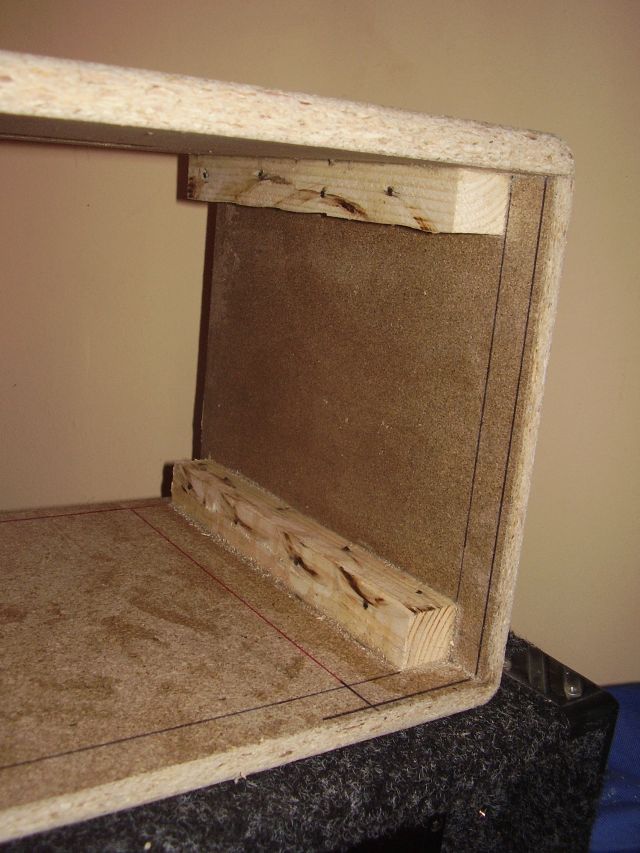

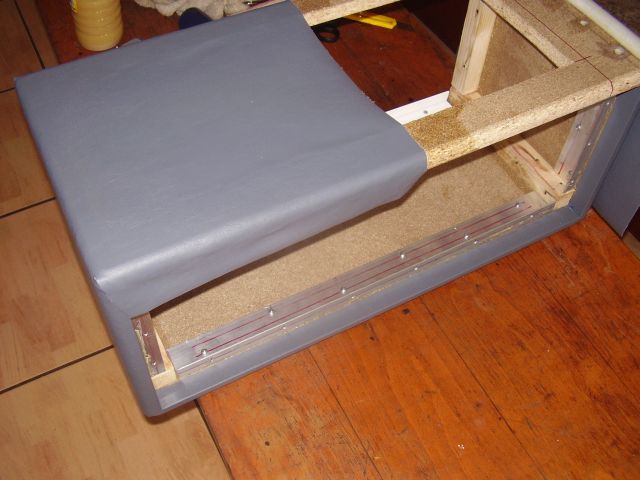

Head building

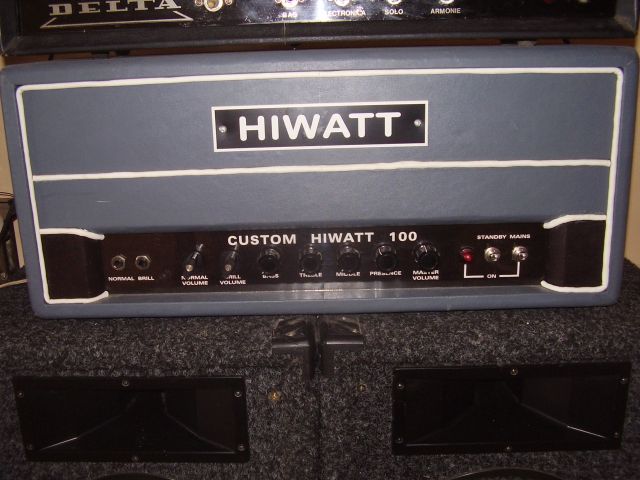

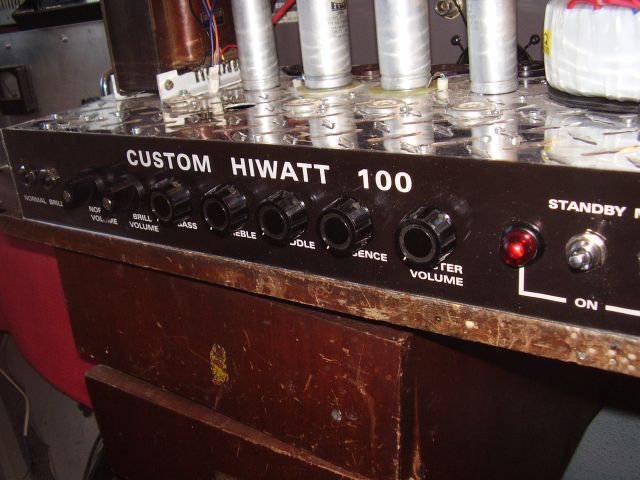

Head cosmetics
Final sound test Final Project
