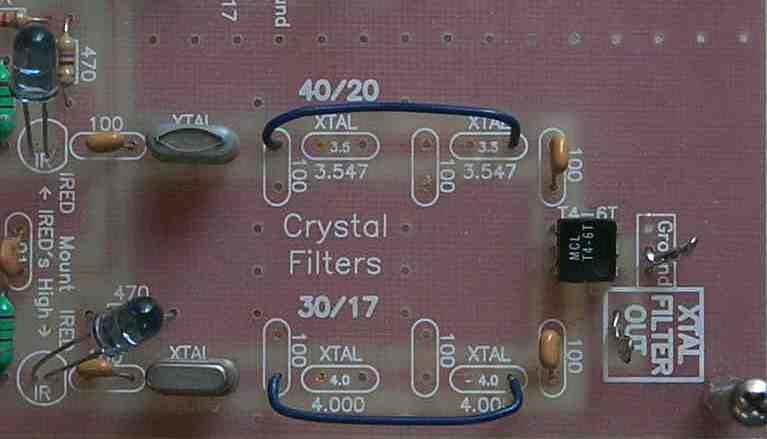

Crystal Filter Picture



Eliminating two of the crystals in each filter widens the bandwidth of the filters enough to receive AM. Then wire jumpers are installed to bypass the other two crystals. Only the input and output capacitors of the filter are used.
