Testing Board 1 - 20 Meters

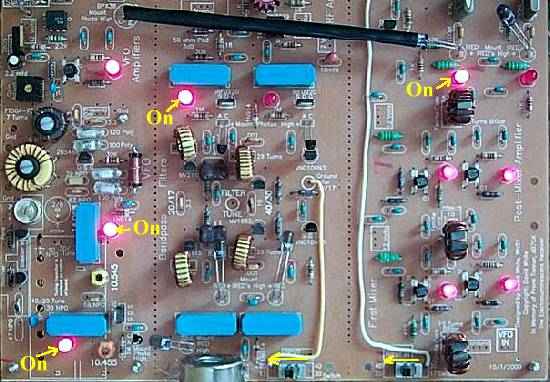

Four LEDs should be on, located at the arrows in the image above.

Note the direction of the arrows at the switches. Both should be at the left side. This is the position for 20 Meters.
