Testing Board 1 - 17 Meters

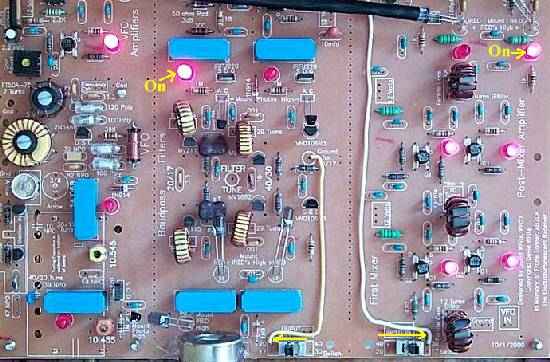

Two LEDs should be on when 17 Meters has been chosen. The outside LED at the Crystal Filter, and the left LED at the Bandpass Filter.

Notice the arrows indicating which way the switches should be moved for 17 Meters.
