Product Detector Picture

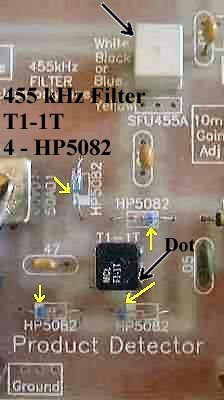

Arrows show the locations of the bands on the diodes. Be sure to install the diodes correctly.

The diodes are on a small tape strip with clear bodies and a blue band.

Bend the leads about 1/8" away from the body of the diode for easy insertion into the PCB.

Back to BFO and Amplifier, Product Detector and Audio Amplifiers - Installing the Product Detector Diodes
