Amateur Radio Receivers

"The Electroluminescent Receiver Kit"

Electroluminescent Diode: a p-n junction device which takes electrical current
and voltage and changes it directly to light. (QST, July 1974, page 62.)

Electroluminescence: the means by which LED's create light.

The Electroluminescent Receiver

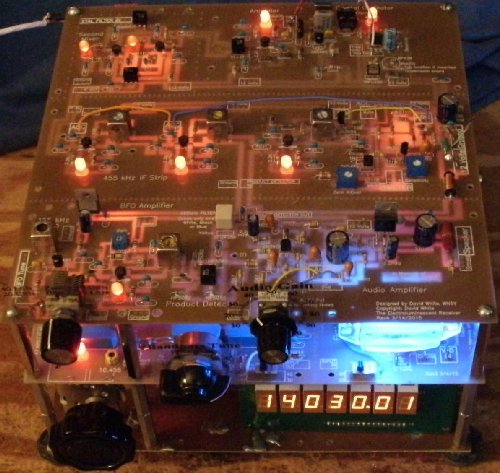

Shown with the parts included in the kit with the optional LED Frequency Counter, Frequency Stabilizer (mounted in the bottom back) and S-Meter. Covers the CW portion of 40, 30, 20 and 17 Meters. Can be easily modified to cover the SSB section of 40, 20 and 17 Meters. Easy to follow pictorial instructions makes it a fun build.

Designed as a blood thirsty DX machine, it appeals to the young and the young at heart. With large boards and plenty of room, it is easy to insert parts, diagnosis, and make modifications.

The LEDs show circuit function - MOSFET (13 used) circuit health, gain of the amplifiers, oscillator drive, mixer gain, switching functons, and 12V power - it is the easiest superhet receiver to diagnosis and repair ever!

The ELR, which runs with the big boys, is finding a nitch with the little ones...and the YL's, too!

Please note this reference, "Rediscovering the Band-Imaging Receiver", by David Newkirk, W9BRD that talks all about band imaging receivers and list all that have been published.

For details click Elk City Hamfest, OK 2011 .

To see past front cover pictures, go to "Front Cover Pictures".

LED diagnosis, large circuit boards, wide traces/pads, and step-by-step pictures make this the easiest double conversion receiver you will ever put together. For more information read

.

Amateur Radio Receiver

An CW/SSB receiver that covers the first 100-150 kHz of the 40 and 20 meter bands and all of the 30 and 17 meter bands. Bandwidths can be modified.

SWL Listeners

The tuning range of the VFO is expanded to 500kHz to cover most of the 41/31/19/16 Meter SWL bands. Duncan Watson and Gary Rondeau have sent in modifications they made for improved performance of their receivers. They include VFO, crystal filter, AM Detection, and AGC modifications and improvements - check them out.

LED Frequency Counter!

VFO Frequency Stabilizer!

For Beginners and 50/60's Heathkit builders who want to build the Electroluminescent Kit

A QRP Transmitter Design for transceive operation using Superhet Receiver VFOs.

Incorporating this design with the Electroluminescent Receiver Kit.
This is for dead-bug or perforated board
builders only. A PCB kit will eventually be
available after more testing has been done.

Transceiver Operation with the ELR

An updated version of the article "The Best QRP Amp in the World - The DL-QRP-PA" recently published in the Flying Pigs BBQ Newsletter, January 2010

Beginner and Experimenter's
Receiver Kit

Eight Easy Steps!

Broadband receiver design!
Can be built for any one HF Band
80,40,30,20,17,15,12,10

Has been used for college and university
term papers and projects in England and the US.

Easy for the beginner to build and modify.

Thirty-two Pages of Documentation!

Two NE602's
One High Tech MMIC
TDA 2002 Loudspeaker Output

Super Receiver

Based on circuits using the 2N5109 transistor.
I have been careful to propose a receiver that
is "buildable" by anyone with moderate
experience in homebrewing. Done all "dead bug" style.

LED Mosfet Receiver

Home page has several great links to LED sites.
These pages contain the history of the MOSFET
receiver, going back into the 70's.

Links to Other Sites

Includes:
Learn how to solder from the "How to" sites listed.
Ugly construction/Manhattan construction sites.
Toroid information.
The best QRP sites.
Receiver Projects and Receiver Information.


Mirror Sites

If you are caught in a frame or on the
CD-ROM and want to check on updates,
click on one of the following sites:

http://www.amateurradioreceivers.net
http://www.qsl.net/wn5y
