This was the Original Version. Look here for what I did to it. It is very different now.

144 mhz 1.5kw W6PO 8877 amp

2M_AMP1.JPG - 34004 Bytes

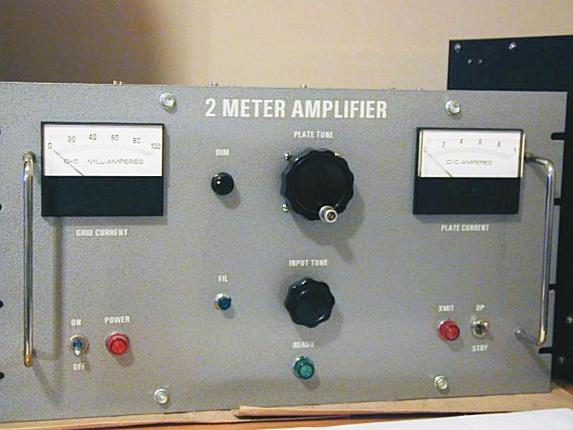

All Homebrew. Amp tested to 2.4kw out

AMP_PS1.JPG - 37207 Bytes

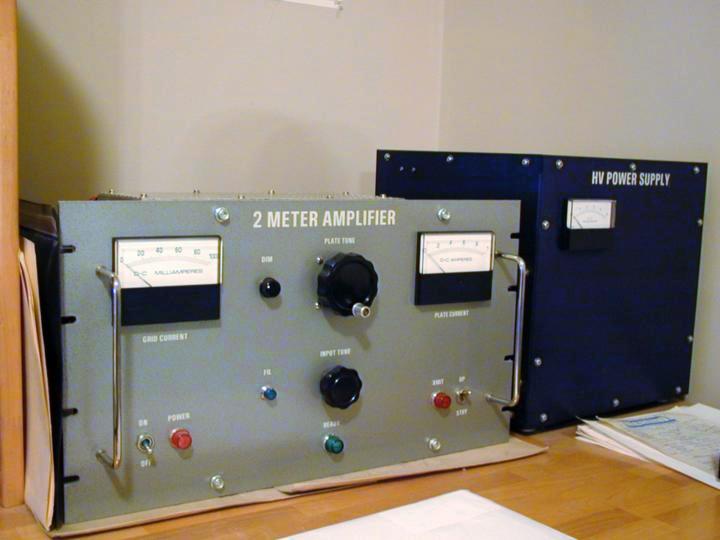

Amp with 4kv 1.5 amp HV Supply to the right of it

2mampinside.jpg - 60686 Bytes

Behind the front panel. RF Deck/Sequencer/+24vdc supply for T/R
  relays/Blower/pair of Tranco Y-Relays
