Using various GPSDO boards with 1PPS signal for locking 10 MHz reference sources,
or other  RF reference signals, such as ProgRock from QRP Labs,
for use with weak signal digital modes such as WSJT/WSPR, where
there is requirement for high stability and frequency accurate radios.

If you looking for 1PPS output, you need to look for boards that have
the Ublox NEO-6T or NEO-8T chip, or have the Telit JF2,
or a Trimble 36576 (as used on the SRM9000 Dispatcher board).

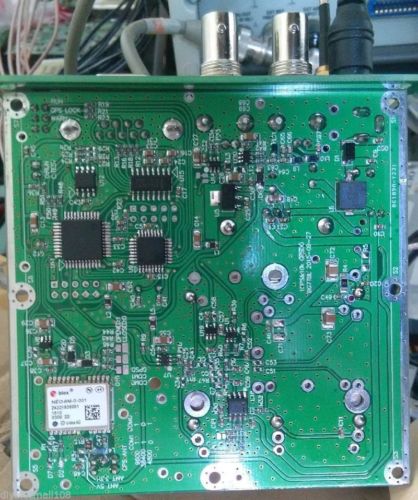

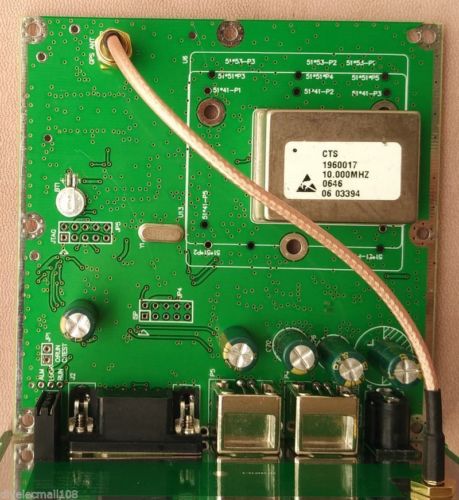

BG7TBL 10MHz Output Sine Wave GPS Displined Clock GPSDO











BG7TBL 10MHz Output Sine Wave GPS Displined Clock GPSDO + GPS Antenna + Power Supply

Specification:
- Name: GPS Displined clock
- Power: DC11.7 to 12.9V  �<=15W
- Active GPS antenna power:DC3.3V
- 1PPS output: Square wave, 3.3Vpp
- 10MHz output: Sine wave, 1Vrms (13dBm+-2dB)
- RS232 Output:GPS NMEA SIGNAL
- Accuracy: above than OCXO 2 order of magnitude
- Size: W*H*D=107*55*122mm
- Connectors:
DC plug for 12v supply, BNC for 10 MHz output, BNC for 1PPS
SMA for Active GPS antenna, DB9 for NMEA serial data
- Accessories: AC plugpack for DC12V, Active GPS ANT.
- LED indicators : Alarm, GPS Lock, Run
