How do you want to try it?
Products designed in our lab

Products are proudly designed to last longer.
"You can see it, you can touch it, and you can ask about it".
We make custom modifications.

The services are design, consulting, verification, certification, and troubleshooting.

YOUR MONEY ON CLIMATE CHANGE? NO.
[Back] to main


Q: What is RoHS lead free?
A: The manufacturers spent big bucks to shorten product life, to become the eco-party members. That's the propaganda and ideology started by EU liberal-communists.

The lead-free solder becomes brittle in harsh environment. Few degrees under freezing point it grows tin whiskers. Causing shorts, fire, and system failures. Lead-free solder recrystallizes at about -6°C and the solder joint decomposes. It is a matter of time. The car doesn't start. Aerospace products and satellites have failures. The nuclear safety system failed.

We design for 35,000 feet altitude, Alaska winter, and Mojave California high desert weather conditions. Our products are with the genuine leaded SnPb solder, or RoHs.

Q: Is there any global warming?
A: The were always periods of ice age and warmer weather. Present ignorants miss the ice age. There are two ways of motivation. The eco-person is tottaly stupid, shouting to get tax-payer's money grant. The second way: the person is paid by the enemy, to destroy local industries.

RoHS Lead-Free Industrial Experience: °
(from NASA Goddard Center) Re-crystalization of lead-free solder starts 6 hours after soldering. Exposure to temperatures under 55°F (13.2°C) will speed up the solder joint destruction and decomposition. The tin solder turns into a dust. The tin dust particles move freely on the PCB board. Life expectancy of RoHS boards is about 8 years.

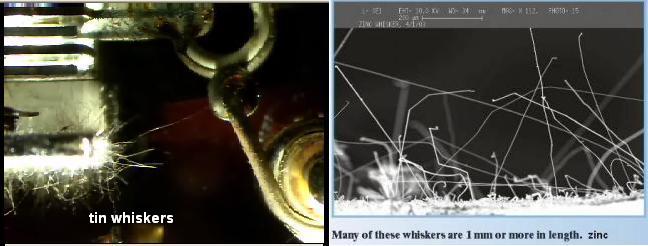

Growth of tin whiskers, tin re-crystallization cause shorts and unexpected failures. Tin plating cause disasters as well. Aerospace, marine, military, nuclear, medical, and industrial products must have exceptions and use solder with lead content.



Dealing with these RoHS ideology of Euro-Idiots caused already enough disasters. Real solution is waste management and proper recycling.

Same applies to Data Retention
What the security system is good for, when the system doesn't boot after 10 to 20 years?
When the internal Flash memory keeps system configuration, it is a potential disaster. (FPGA). The train won't start or function, as expected.

A word from practice:
After years, the nuclear power plant security system had unexplained board failures. Programmed data in memory vaporized. Some boards failed. Memory chips were run at high temperature with surface temp. 70°C. Heat, not evenly distributed ventilation, chip overheating, sudden current run-out, and tin whiskers on connectors. Somebody asked for a big trouble. The boards were designed by Intel.





Thermal shutdown system
- Thermal shutdown for RF Power Systems
- Thermal window decision for cooling
- Overcurrent shutdown (optional)
- Fast Error reporting
- SWR shutdown
- Persistant ERROR indicator
- Central RESET for invisible glitches
  (Very valuable for connectors and intermittent problem search)
- Delivers improved reliability and longevity
  MADE by DAT Consulting Cons.


DSP based Waveform Signal Source
- Sine, Triangle, and custom programmable sequence
- CMOS compatible
- PWM output
- Flexible variable bitrate
- ROM, RAM, custom FLASH, 50MHz clocked DCO
- Palmtop size
- Great for linearity check, ultrasound, and for RRIO OPAmps test
- few spared boards are available
  MADE by DAT Consulting Cons.


Industrial Power dimmer for LED lighting
- 277V/60Hz 8A+ power dimmer
- For remote occupancy lighting sensors
- For remote ventilator
- For remote circuit breaker
- UL compliance, FCC, EMI
- Works on wired or wireless network
- Bluetooth NRG low power compatible (bands classified)
  DESIGNED AND MADE IN USA


ZigBee Wireless modules 2.4 GHz with OS

Small form factor

RX with sensitivity better than -105 dBm  (20 dB better than competition)

TX Power of 100 mW  (20 times better than competition)

Antenna Diversity   ( 4x better throughput than competition)

Range more than 1 mile. Weak signal range > 4 miles.   (Competitive range is 0.25 mile)

Optional antenna connector  (*Range extender 3x)

Mesh networks   (street lights, network with self reconfiguration)

Dynamic system configuration on demand  (Adaptive bitrate)

Battery works for years  (Micro-power consumption)

Battery operation or external power supply

Cuts it's way through concrete building by design

Remote software upgrade  (No manual upgrades of 50,000 units monthly)

Internet based network management  (command from the Captain's bridge)

Data safety, proprietary data encryption, DSP

  DESIGNED AND MADE IN USA




Smart Grid & Smart Power Systems

Instant power bill

Thermostat applications

Lighting and Parking entry applications

Integrated security services, remote sensing

ZigBee or WiFi communication protocol

for Industrial, Medical, Aerospace, and residential environment

Fast data stream

OS, Mesh Networks

Long battery life

Download PDF article:
Smart Grid article in RFTI magazine (Gary Breed's RFTI magazine)
  DESIGNED AND MADE IN USA


Warm color LED kitchen light with dimming
- Fast dimming.
- Warm LED color.
- Nice design by architect, people like it.
- Easy mechanical mount.
- Easy insertion of additional external light modules.
- Power efficient; Lowers power bill.
- No failure within 15+ years of operation.
- Longer lifetime. Till today 3x better than CFL light.
- Survives lightning storms and transients by design, ESD.
- "Verified and Certified by the Kitchen Boss". Yes.
  MADE by DAT Consulting Cons.


Frequency Synthesizer, Signal Generator

Fine frequency step

Power step in 1dB increments

Programmable features

Programmable frequency sweep (for filters)

Low phase noise

  MADE by DAT Consulting Cons.




Frequency counter, Sierra FC2
single chip solution

Max frequency up to 95MHz with 0.1Hz resolution

custom max frequency 150MHz

Sampling rate and resolution on demand

DC power 5V to 20V

Input with overload protection

Temperature compensated crystal reference TCXO

Light green or white LCD backlight

Fits into your wrist

  MADE by DAT Consulting Cons.

The Sierra CF2 counter is available as a kit. OEM

We do "custom IF frequency" for radio frequency readout

All devices are calibrated to 0.2ppm uncertainty with 0.01 ppm ovenized crystal frequency standard



Microwave Frequency counter, Sierra FC3

The FC3 is a device with frequency range up to 2.5GHz

it has extended input range with external prescaler up to 10GHz

Runs from built-in precision frequency standard

Internal TCXO reference, or external clock

Spectrum Analyzer

High dynamic range

Intuitive user interface

Portable/mobile pocket size form factor

LCD graphical display

For Security Systems, Smart Energy, Smart Grid, and homebrew stuff

with Demodulator output

Markers, delta Marker

Ideal for installations & field measurement

For development, setup, troubleshooting, test, and verification

  MADE by DAT Consulting Cons.

  Gotham SA



DC Power Analyzer & DC Power Meter
- DC Power meters for photovoltaic panels
- Marine, sailing & yachting applications
- Fine resolution, easy to use
- Adjustable audio warnings
- Self-calibration mode
- Battery check on-deck
- Custom configuration
- for lab power supply bench
- for High efficiency power switchers
- Replaces low ADC resolution rice-toys





Battery Charger (Chinook)

Solar battery charger for camping, trekking, marine, park fire protection sensors

Mobile phone or camera battery charger

Efficiency above 92%

Lithium battery reconditioners

Automatic switch-off since the battery is full

Wide input power range, 2.7V to 24V

Handheld L-C meter
What instrument do you use daily?
This is a handheld device with 1 nH/ 0.05 pF resolution.

Uses 9V battery

Micro controller based

Without that, you can only guess

Microwave RF Power Meter (100kHz to 3.8GHz)

50dB dynamic range

Measures CW

Measures fast burst mode power

Small and compact form factor

Sigma delta ADC

Ideal for Bluetooth, ZigBee, GSM, CDMA, TDMA, FM, wireless networks, FCC certification, cable loss measurement.


Antennas, overview
The antenna team focuses on efficient gain antennas for licence-free ISM bands

Particulary antennas for 868M, 900MHz, 2.4GHz, and 5.8GHz bands

Patent pending

For OEMs, or minimum orders limit

Antennas for 5GHz bands. Cover all 5G sub-bands (US, Japan, Asia, Europe)

Custom design

Open for business




a) Omni-directional 5.8GHz antenna (Sonora A58p)
The A58p is a very low manufacturing cost antenna.
Only for OEMs. Under agreement you can manufacture.

Applications: Wi-Fi networks, industrial, broadband, aerospace, medical, geo mapping, military.

The antenna covers (US, European, Japanese) 5G sub-bands

Bandwidth is extremely wide

Covers (4.9 to 5.85) GHz ISM band

The reflection coefficient s11 is better than -21dB

Gain is above dipole

Linear polarization

Radiation pattern is X

Horizontal plane is omnidirectional

IP protected patented design

References:   Texas Instruments, DAT Consulting Cons.



b) Omni-directional 2.4GHz high gain antenna (Lighthouse A24V)
Omni-directional 900MHz high gain antenna (Point Lobos A925V)



The antennas are for 2.4GHz WiFi, Bluetooth, ZigBee, Internet access point, cameras, security, Internet of things, weather stations, and remote telemetry.
It is the "Antenna Ranger" supressing fading.
Only for OEMs, ready for manufacturing.
Under agreement you can manufacture and sell.

Band	Antenna	Notes
2.4 GHz ISM band	A24VS	High Gain
2.4 GHz ISM band	A24VL	High Gain, Long Range
902-925 MHz ISM	A925VS	High Gain
902-925 MHz ISM	A925VL	High Gain, Long Range
868 MHz, EU ISM band	A868VS	High Gain, for the narrow European band

High gain, omni-directional antenna

Improved impedance match, low SWR

The form factor helps to suppress natural signal fading

Proper mounting guarantees right performance. We provide installation advice.

The radiator is omnidirectional with linear polarization

The antenna gain is 4.7 dB (6.85 dBi) and 6.25dB (8.4 dBi) for the extended range type.

IP protected

Usually, initial help with manufacting is required

References:
[1] ewd™ Embedded Wireless Devices Inc. California
[2] URElectronics, California
[3] Texas Instruments Inc., California
[4] OEMs South Korea
[5] OEMs



Please visit our contact page.
