Section 3 SWR and BW

SWR was measured using an antenna analyser which outputs data to a computer. From there I used excel to graph the results as shown below.

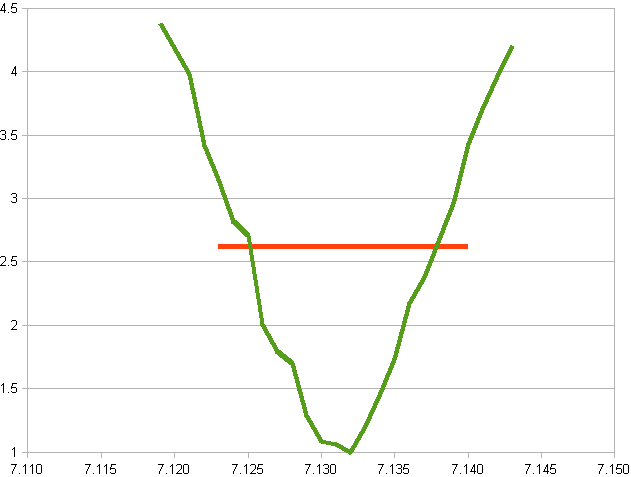

40m Band

SWR 1:1 at 7.132MHz with a -3dB bandwidth of 11kHz.

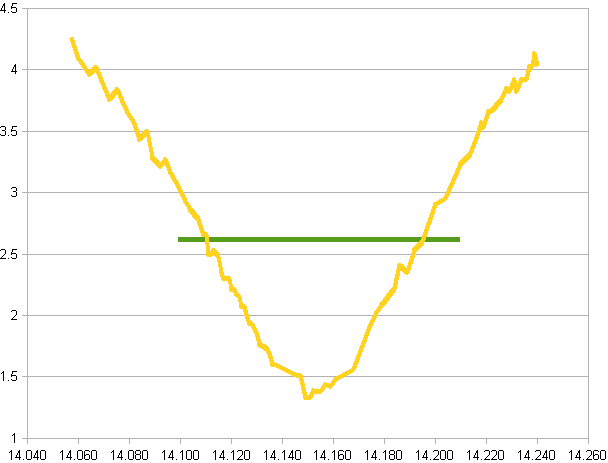

20m Band

SWR 1.33:1 at 14.15MHz with a -3dB bandwidth of 64kHz.
