KENWOOD Telsiz Cihazların Şemaları Modellerine Göre Aşağıda Listelenmiştir

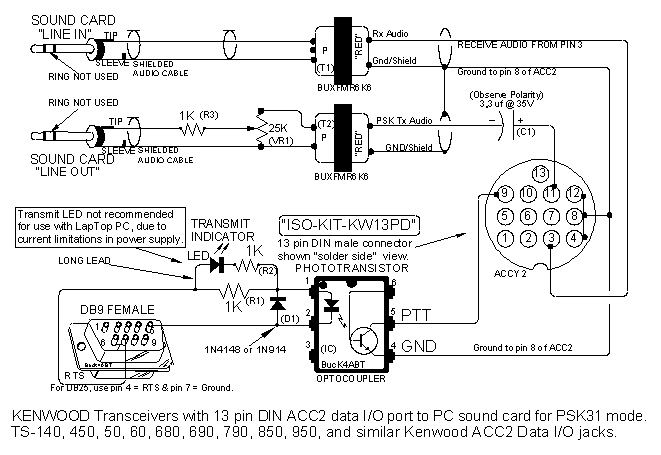

KENWOOD ISO-KIT-KW13PD

KENWOOD  HF Transceivers with 13 pin DIN data I/O port; (TS-140, TS-450, TS-570, TS-680, TS-690S, TS-790 TS-850, TS-  870, and TS-950..etc) with 13 pin DIN (ACC2) connector to PC Sound Card. This circuit is designed to prevent RF feedback  by using transformer and opto-coupler isolation. (* A few Kenwood transceivers may require pin 13 of ACC2 for PTT, instead  of pin 9, see next diagram

KENWOOD ISO-KIT-KW4PM

KENWOOD HF Transceivers (TS series = 120, 130, 180, 520, 530, 600, 700, 770, 820, 830, and others) with 4 pin  microphone connectors, to PC Sound Card. This circuit is designed to prevent RF feedback by using transformer and opto-  coupler isolation.kw4pm

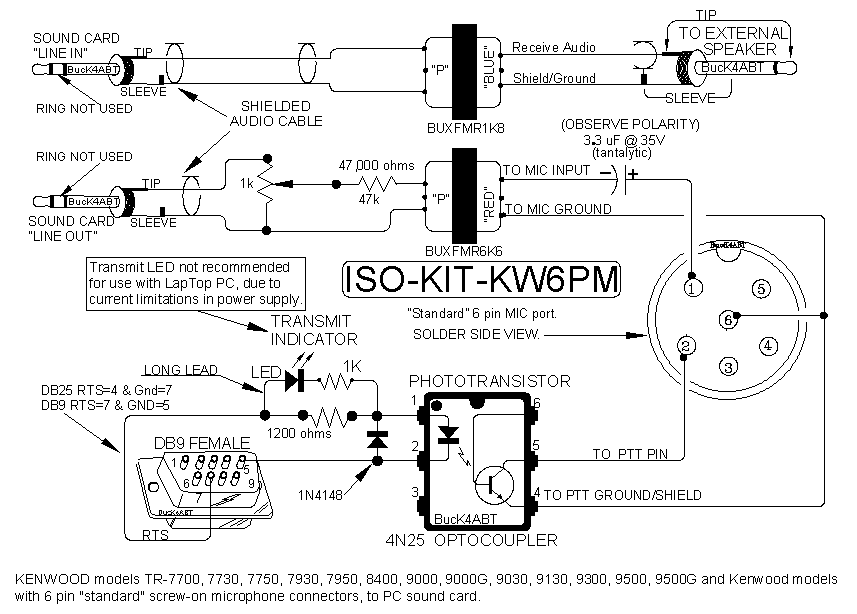

KENWOOD ISO-KIT-KW6PM

KENWOOD HF Transceivers (TR series = 7700, 7730, 7750, 8400, 7800, 7930, 7950, 9000, 9030, 9300, 9500 etc..., and  others) with 6 pin ''Standard'' microphone connector, to PC Sound Card. This circuit is designed to prevent RF feedback by  using transformer and opto-coupler isolation.

KENWOOD ISO-KIT - 1 / KW

KENWOOD HF Transceivers (TM-201, 221, 231, 241, 2530, 401, 421, 431, 441, 531, 541, 621, 631, 721, 731, TR-3200, 50,  751, 851, TS-140, 430, 440, 450, 670, 680, 690, 701, 711, 780, 790, 811, 850, 930, 940, 950, TW-4000, 4100, and others),  with 8 pin Screw-On type microphone port to SB16 Sound Card. This interface uses transformer audio coupling and  PhotoTransistor, Opto-Coupler (PTT) for RF isolation.

KENWOOD ISO-KW40-13

KENWOOD HF, VHF, and UHF Transceivers that use pin 13 for PTT execution; TS-440*, TS-711*, TS-811*, and TS-940*. This  is a 13 pin DIN female jack, labeled as ACCY2. This circuit diagram addresses only these specific Kenwood (vintage)  transceivers. The associated kit performs the function of interfacing PSK31 signals to/from the transceiver while ISOlating  the radio and PC sound card I/O. By using transformer and opto-coupler ISOlation, RF feedback and noise is reduced to a  minimum.

KENWOOD ISO-KIT - 1 / KW

This interface for the KENWOOD HF Transceivers with 8 pin MIC connector is designed to execute a PTT software call using  RTS. For ALINCO and KENWOOD 8 pin MIC to PC Sound Card for; PSK31, and other digital modes.

KENWOOD ISO-KIT - 1 / KW

Some KENWOOD TS-440 and similar Kenwood HF Transceivers with 8 pin screw-type MIC connector to PC Sound  Cardconfigured for PSK31; and other digital modes.
