4 Wavelengths optimized (14,22 db)
|
Element |
Position |
Half Length |
Boom Diam |
Boom Cor |
Final Length |
|
R |
0 |
513 |
30 |
4,7 |
1031 |
|
DE |
365 |
|
|
|
|
|
D1 |
550 |
477 |
30 |
4,7 |
959 |
|
D2 |
910 |
470 |
30 |
4,7 |
945 |
|
D3 |
1355 |
460 |
30 |
4,7 |
925 |
|
D4 |
1855 |
458 |
30 |
4,7 |
921 |
|
D5 |
2470 |
455 |
30 |
4,7 |
915 |
|
D6 |
3110 |
451 |
30 |
4,7 |
907 |
|
D7 |
3770 |
448 |
30 |
4,7 |
901 |
|
D8 |
4440 |
446 |
30 |
4,7 |
897 |
|
D9 |
5145 |
446 |
30 |
4,7 |
897 |
|
D10 |
5920 |
446 |
30 |
4,7 |
897 |
|
D11 |
6755 |
446 |
25 |
3,4 |
895 |
|
D12 |
7580 |
446 |
25 |
3,4 |
895 |
|
D13 |
8300 |
442 |
25 |
3,4 |
887 |
|
|
|
|
|
|
|
|
Element Diam: |
4mm, isolated mounted (see DUBUS 1/90) |
||||
|

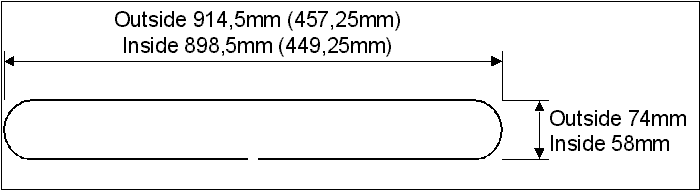

Driven Element: |
8mm diam. |
||||
|
Driven Element Linear Length: |
|
2004 |
mm |
||
|
|
Driven Element Centerline Spacing: |
66 |
mm |
||
|
Stacking: |
H-Plane: |
4,08m |
|
|
|
|
|
|
E-Plane |
4,29m |
|
|
Don't forget: BIG ANTENNAS = BIG SIGNALS ....so use any cm of free space on your roof !!!
