Homebrew 2m yagi, 9 elements. Design by DJ9BV

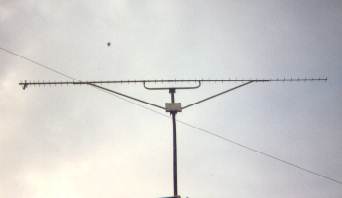

Homebrew 23cm yagi, 49 elements. Design by DJ9BV
Homebrew 13cm yagi, 60 elements. Design by DJ9BV

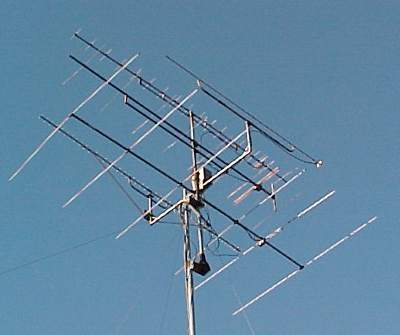

6M, 6 elements

2M, 9 elements, DJ9BV

70cm, 21 elements, DJ9BV

23cm, 49 elements, DJ9BV

13cm, 60 elements, DJ9BV

Preamp box for 23 & 13 cm, PA0WMX design

(one preamp for both bands)

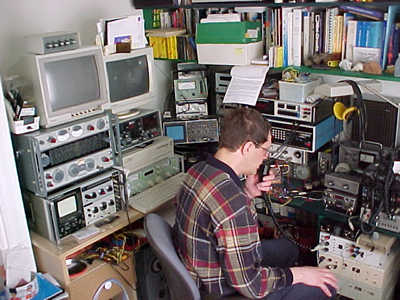

Sjaek, inne shack
Sjaek, inne shack
Test equipment corner including HP141 and several signal generators
Other test equipment corner, sweepers, signal generators, LCR meter and so on....

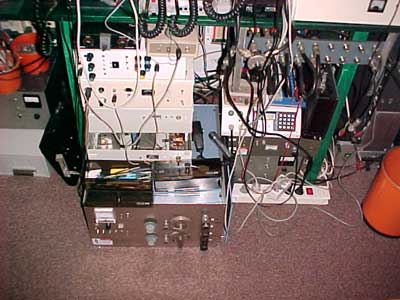

Several power amplifiers and 23 & 13 CM ATV equipment.

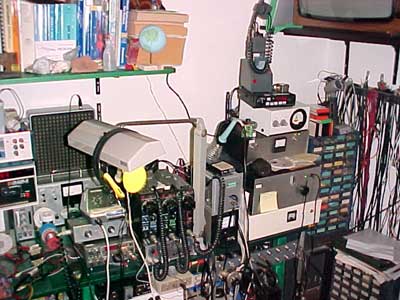

Tranceivers and transverters for 6M to 3CM

Preampbox for 144 MHz : DJ9BV - I5TDJ design with MGF1801, NF = 0.25 dB G t2M and 70cm masthead preamps

432 MHz : DJ9BV Design with MGF1302 NF = 0.5 dB G = 16 dB

Log periodic antenna, PA0HVA design PA0HVA 1-6 GHz log periodic antenna.

Description of my 3cm PA

Description of my 10GHz and 24 GHz Beacons
