This is Mainly a Radio amateur site.
APRSDanmark

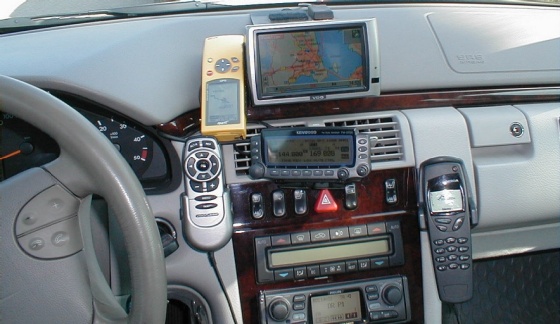

I'm QRV on APRS in my taxi with the call OZ0CAB
my equipment in the taxi is TM-D700E
You can see me here in my cab OZ0CAB-7 or in my car OZ1IEP-9 or the QTH of my digi OZ5DIB
Analysis of the APRS Network to determine what unproto paths stations are using in Denmark (OZ)
Analysis of the APRS Network to determine what unproto paths stations are using in Europe.
UI-Traffic Monitor Live from OZ5DIB-1
CU ON APRS
SSIDs of APRS stations
Koder
i Kaldesignal
Af hensyn til dem der er mobil, og ikke kan se ens ikon, kan det
være en fordel at indsætte et tal efter ens kaldesignal, så er det muligt når
man ser et beacon, at vide hvilken type APRS station man modtager.
På et international møde er man enes om denne her standart i EU.
F.k.s. Som mobil i bil. ( OZ0CAB-9 )Som meget andet er det en anbefaling :-)
It has been discussed, which SSID should be used
for which type of APRS
station and the following conclusion could be reached:
SSID -0 (no SSID) should be used for all fixed
stations (home-qth)
SSID -1 should be used for all sorts of gateways
(IGATE, Sat-Gate,
HF-Gate and so on)
SSID -2 should be used for APRS-WIDE-Digipeater
(which are
digipeaters with aliases of ( WIDEn-n)
SSID -3 should be used for APRS-FILL-IN-digipeaters
(aliases of WIDE1-1
only)
SSID -4 2nd fixed stations (2nd Home-qth)
SSID -5 should be used for WX stations
SSID -6 APRS via MOBILEPHONES,D-STAR
SSID -7 should be used for special mobile stations
(truck, bicycle,
motorbike, Jeep, bus, RCV ect., NOT for normal cars)
SSID -8 should be used for fixed, portable stations and Boats
SSID -9 should be used for normal cars
SSID -10 should be used for Sat-stations (using APRS via
satellite)
SSID -11 should be used for TCPIP stations
SSID -12 Balloon, Aircraft
SSID -13 unassigned
SSID -14 truck 18 Wheels
SSID -15 SW
This is only a proposal for all hams, which should help to clear
up APRS a
little bit. We request to use it, but it's not mandatory.

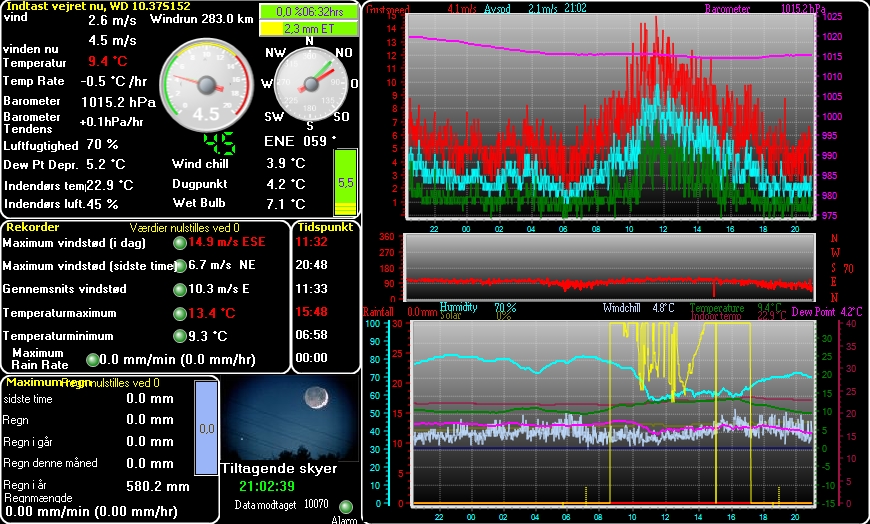

Live from WX-Station OZ1IEP-5
link til Opsætning af UI-View
Min Opsætning af TinyTrak3 Husk nu skal vi bruge "WIDE1-1,WIDE2-2" når du er mobil Mine kommentarer til opsætning af Mobil
udstyre Husk at sætte -9 efter dit call når du er mobil. Så kan man
se du er mobil når man "kun" har en KENWOOD at køre APRS på.
Opsætning af
UI-View32 V2.03 på hjemme QTHen
Opsætning af
APRS af OZ1HLP Benny
Er du mobil eller /p sæt din Unproto address til
"WIDE1-1,WIDE2-2" brug kun
WIDE1-1. Når du er mobil eller /p. HUSK din Beacon 1 gang per 2
minutter
På Kenwooden TM-D700E sæt "PACKET PATH (3-b) til
"WIDE1-1,WIDE2-2" eller
"W1,W2"
Det samme på TH7
men HUSK kun når du er mobil eller /p
