PLL oscilátor (Phase locked loop oscillator)

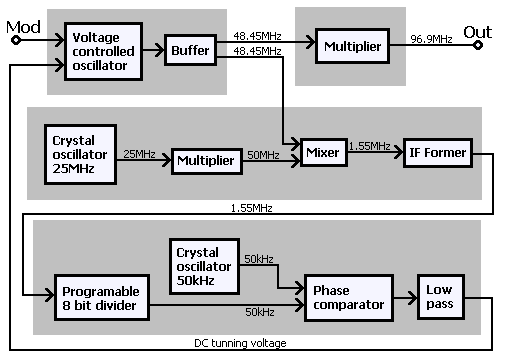

Blokové schéma PLL oscilátoru (Phase locked loop oscillator block diagram)

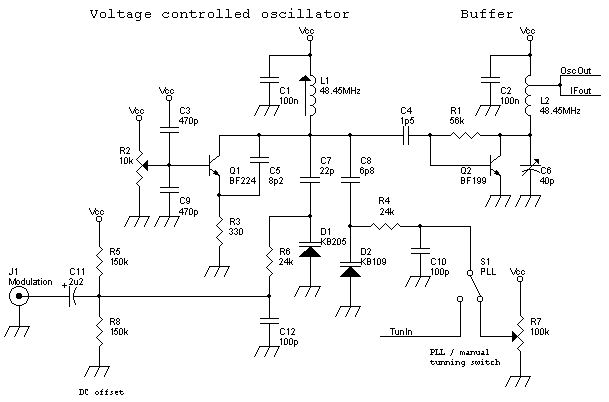

Voltage controlled oscillator, buffer

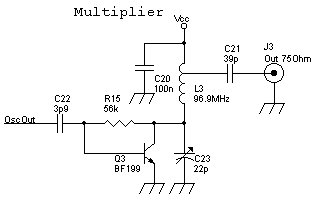

Multiplier

Sine crystal oscillator, multiplier, mixer, former

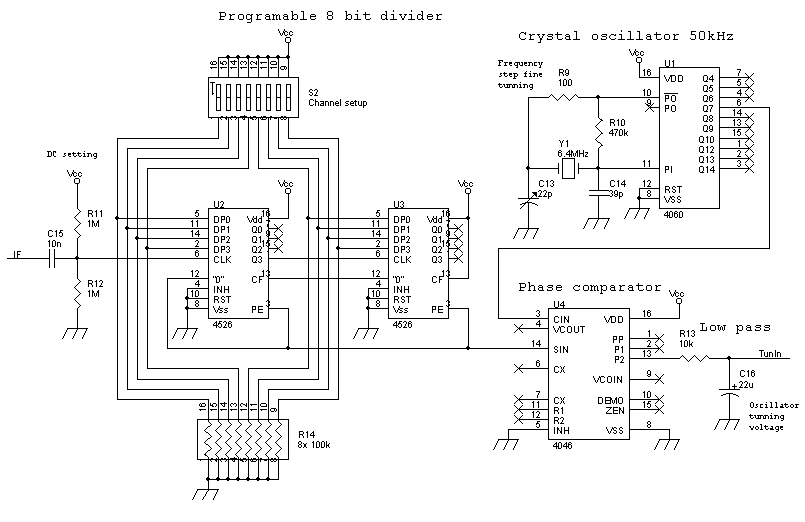

Programable divider, CMOS crystal oscillator, phase comparator

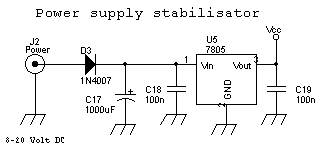

Power supply stabilisator

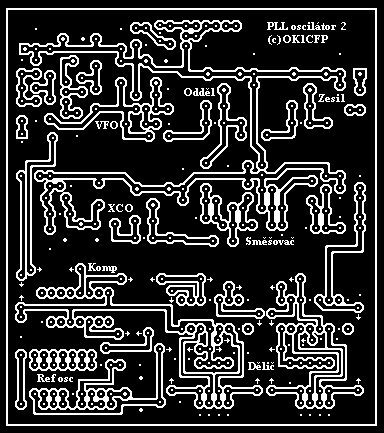

Tištěný spoj pro PLL oscilátor (Phase locked loop oscillator PCB)

Czech resistor values specification:

1M = 1000000 Ω, 100 = 100 Ω

Czech capacitor values specification:

2u2 = 2200 nF, 6p8 = 6.8pF
