OH7M
Contest Configuration
OH7M has 5 towers:
Tower1: 42+4
meters, full rotating
Tower2:42+4
meters, full rotating
Tower3:
36 meters, full rotating
Tower4:48
meters, fixed
Tower5: 24
meters, with top rotator
Tower6: 20
meters (80 meter vertical
Radios
Amps
Misc.

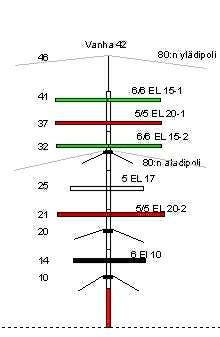

Tower 1:
-
10m: 6el 12m boom @14m
-
15m: 6/6 14.8m boom
@41m/32m
-
17m: 5el @25m
-
20m: 5/5 14.5m boom
@37m/21m
-
80m: dipole @47m, dipole
@32m
-
TOP

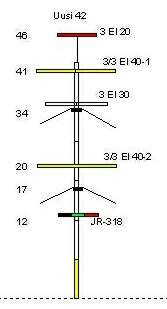

Tower 2:
-
10/15/20: 318jr Tribander @12m
-
20m: 3 el 6 meter
boom @46m
-
30m: 3 el @34m
-
40m: 3 over 3 monoband
yagis @42m/21m
-
TOP
Tower 3:
-
10m: 10-el yagi with 19 meter boom @29m
-
KT34XA @ 20m for 10/15/20
-
40m: 3 el fullsize
yagi with 12m boom @ 35m
-
TOP
Tower 4:
-
10/15/20m: TH6DXX @20m, fixed to EU
-
10/15/20m: X7 @25m, fixed to NA
-
20m: dipole @34m
-
40m: dipole@38m
-
80m: sloper @38m
-
160m: 5-el sloper group
@48m
-
TOP
Tower 5:
-
10/15/20m: TH6DXX @19m rotable
-
12m:4 el. @22m
-
TOP
Tower 6:
-
80 meter 5 el vertical group
Radios:
-
2 x FT-1000D
-
3 x FT-1000MP
-
TS-850
-
TS-440
-
IC-706
Amplifiers:
-
TEN-TEC TITAN
-
COMMANDER HF-2500E
-
TEN-TEC CENTURIO
-
HEATH KIT SB-220
-
ESUKKA 1000
( made by Esa,OH7WV)
Miscallenous:
-
Band-pass filters
-
Connection to packet cluster via DXtelnet
-
K1EA software ver. 9.37
-
PC-network with 6 computers (LAN)
UPDATED 13-Sept-99
