    RigPix

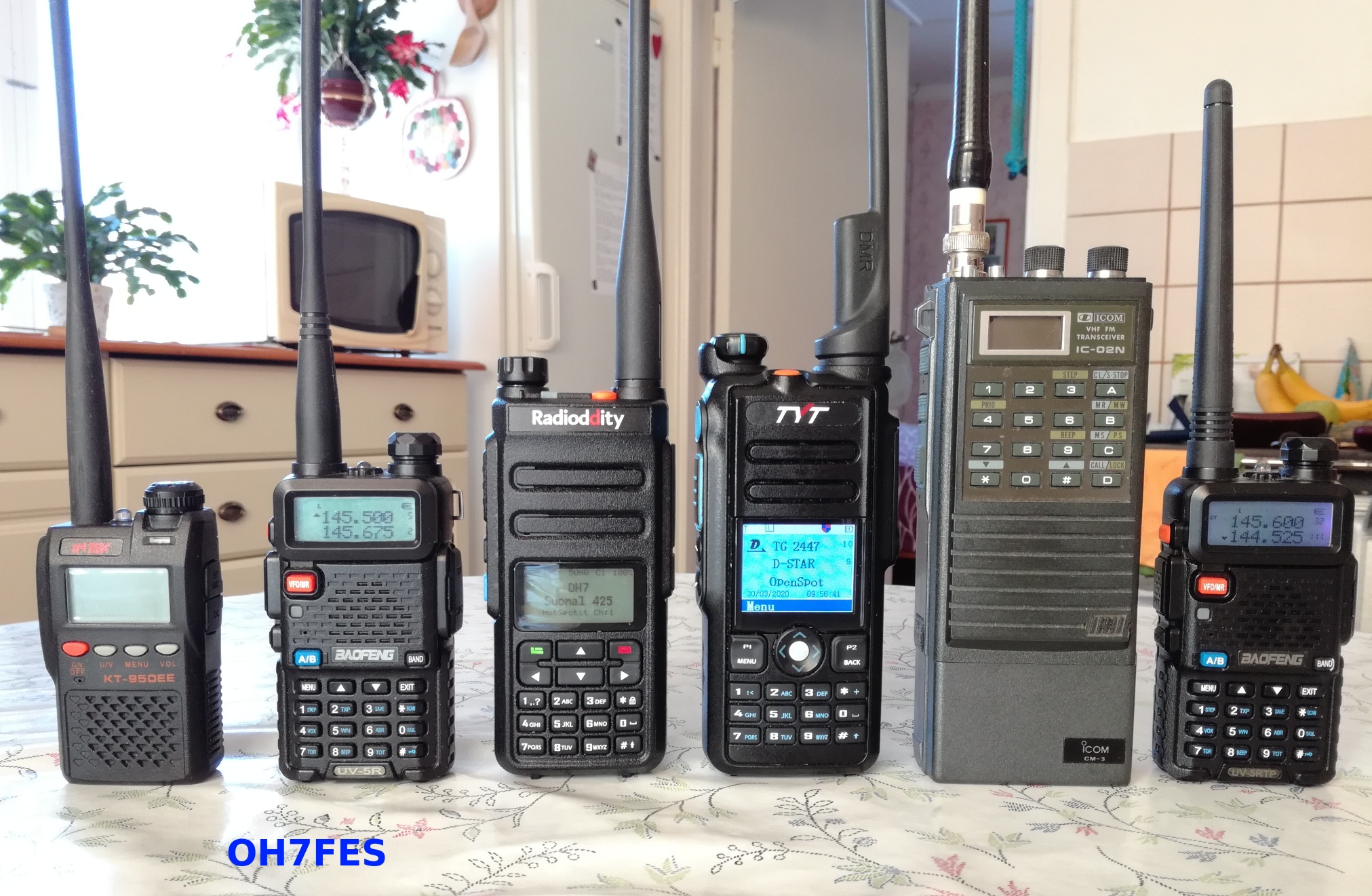

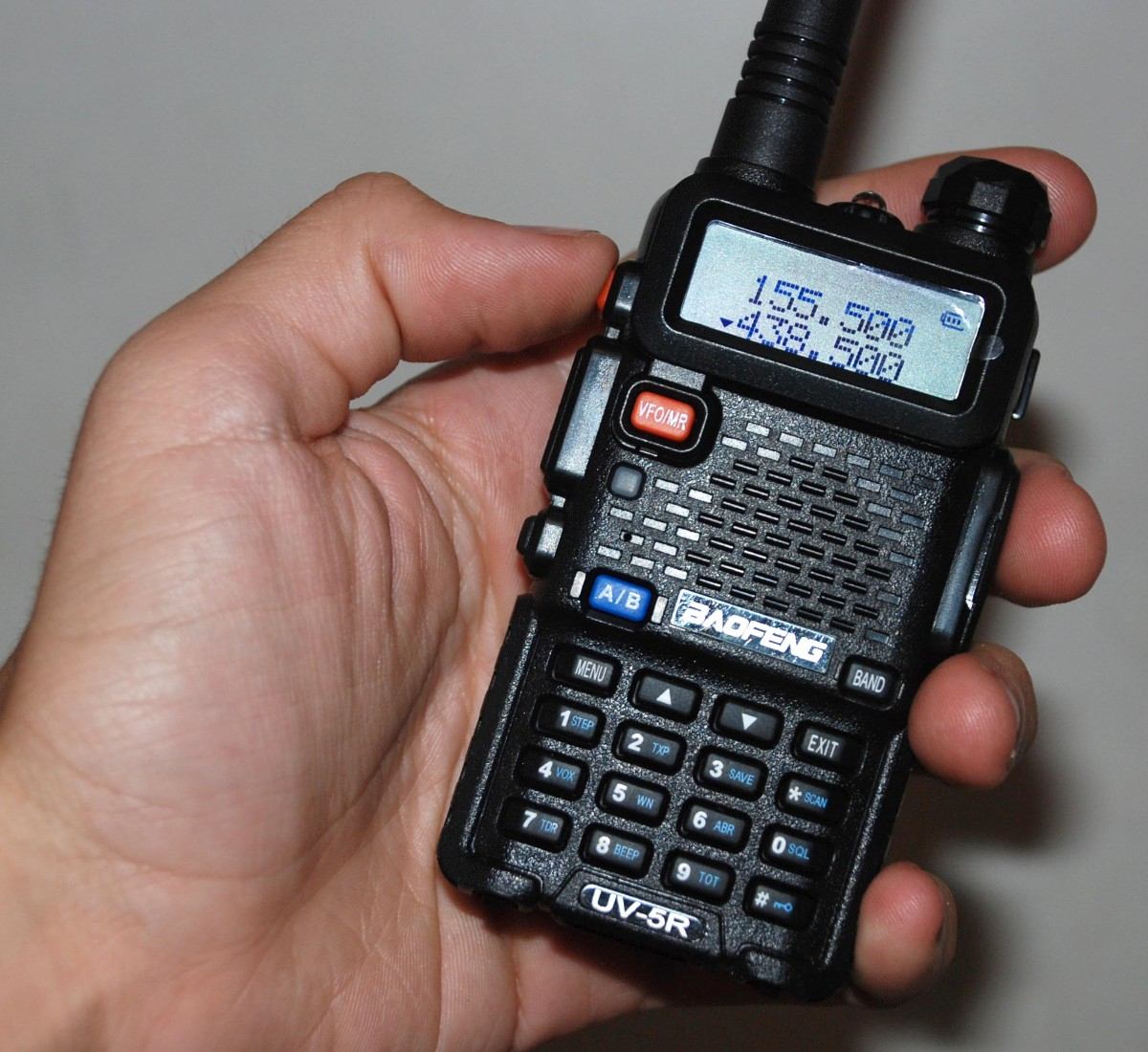

    Intek KT-950EE, BAOFENG UV-5R, Radioddity GD77, TYT 2017, ICOM IC-02N, BAOFENG UV-5RTP

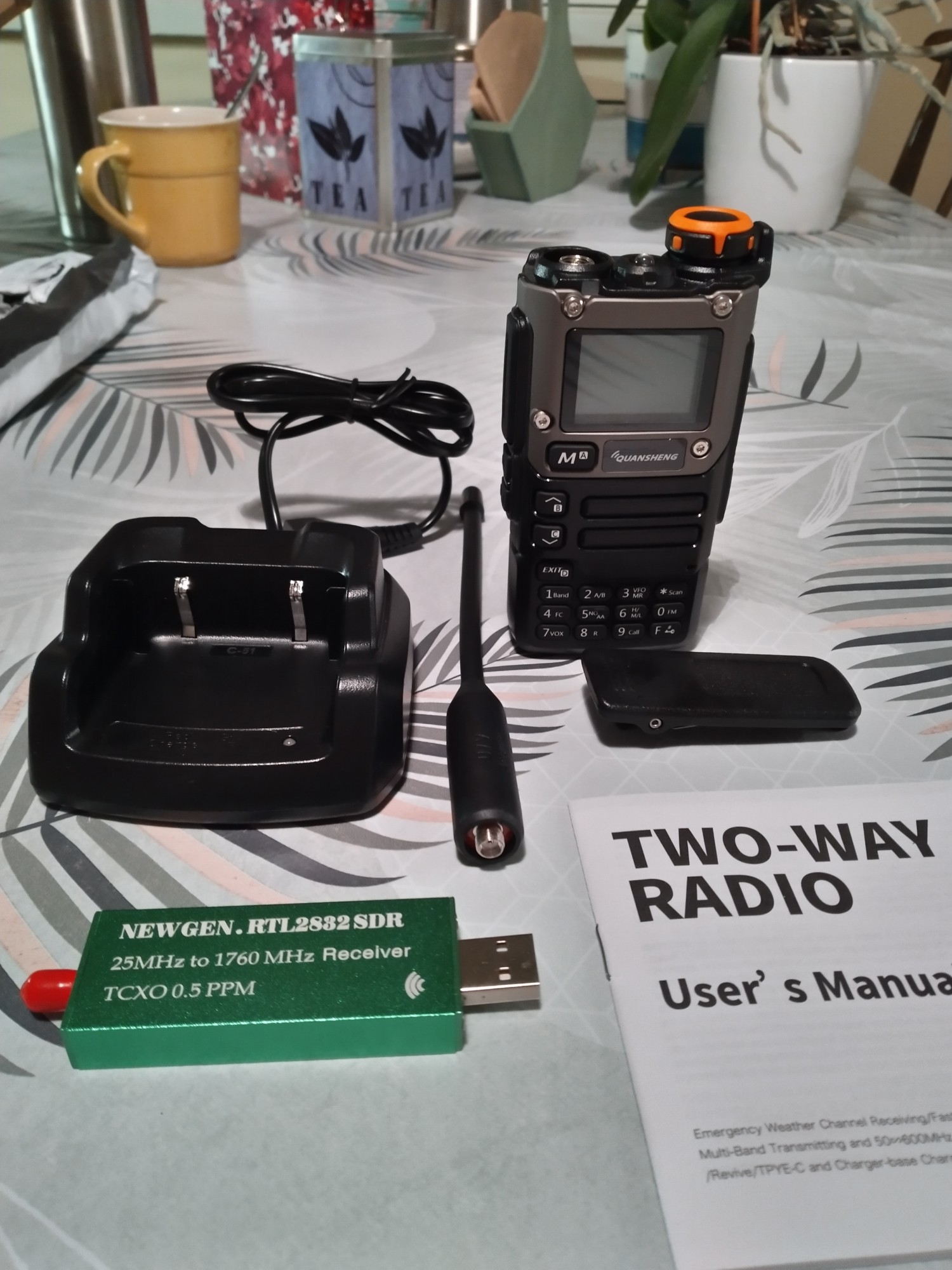

    SSB, FM, AM kuuntelu on Quansheng UV-K5 ja FM TX 2m ja 70cm

  • Home site UV-K5

  • firmware

  • QuanSheng UV-K5 Software & Drivers

  • UVMOD site

  • new SSB firmware + spectrumscope

  • ohjeita

  • FT-857

    Dnepr mopo

    FT-857 Specifications

    FT-857 ja FT-897 modification sheet

    Muisti ohjelmia rigeihin FTBVX3 is a memory management program

    My mobile APRS system

    Icom IC-28H 2m

    IC-28H

    Type: Amateur VHF transceiver
    Frequency range: 144-146 MHz (12.5/25 KHz steps)
    Mode: FM
    RF Power output: Hi: 45 W
    Lo: 5 W
    Sensitivity: N/A
    Selectivity: N/A
    Image rejection: N/A
    Voltage: 13.8 VDC
    Current drain: RX: ? mA
    TX: Max 9.5 A
    Impedance: 50 ohms
    Dimensions (W*H*D): 140*50*180 mm
    Weight: ? Kg
    Manufactured: 1986-19xx
    Other: 21 memories

    RigPix info

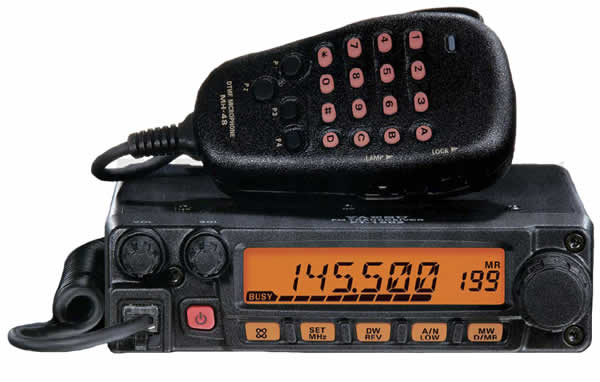

    144 Mhz Mobile station Yaesu - FT-1802E

    Yaesu FT-1802E 144 - 146 MHz 50 W FM



    SPECIFICATIONS
    General
    Frequency Range: Tx 144 - 146 MHz or 144 - 148 MHz
    Rx 144 - 146 MHz or 136 - 174 MHz
    Channel Step: 5/10/12.5/15/20/25/50/100 kHz
    Standard Repeater Shift: ±600 kHz
    Frequency Stability: Better than ±10 ppm
    [–4 °F to +140 °F (–20 °C to +60 °C)]
    Modes of Emission: F2D/F3E
    Antenna Impedance: 50 Ohms, unbalanced
    Supply voltage: 13.8 V DC ±15%, negative ground
    Current Consumption (typical): Rx: less than 0.7 A, less than 0.3 A (squelched)
    Tx: 10 A (50 W) /7 A (25 W) /5 A (10 W) /4 A (5 W)
    Operating Temperature Range: –4° F to +140° F (–20° C to +60° C)
    Case Size (WxHxD): 5.5” x 1.6” x 5.7” (140 x 40 x 146 mm) (w/o knobs)
    Weight (Approx.): 2.6 lb (1.2 kg)
    Transmitter
    Output Power: 50 W/25 W/10 W/5 W
    Modulation Type: Variable Reactance
    Maximum Deviation: ±5 kHz (Wide)
    ±2.5 kHz (Narrow)
    Spurious Radiation: Better than –60 dB
    Microphone Impedance: 2 k-Ohms
    Receiver
    Circuit Type: Double Conversion Superheterodyne
    Ifs: 21.7 MHz & 450 kHz
    Sensitivity (for 12dB SINAD): Better than 0.2 µV
    Selectivity (–6/–60dB): 12 kHz/28 kHz (Wide)
    9 kHz/22 kHz (Narrow)
    IF Rejection: Better than 70 dB
    Image Rejection: Better than 70 dB
    Maximum AF Output: 3 W into 4 Ohms @10 % THD
    Specifications subject to change without notice or obligation. Specifications guaranteed
    only within Amateur band.
    Frequency ranges will vary according to transceiver version; check with your dealer.

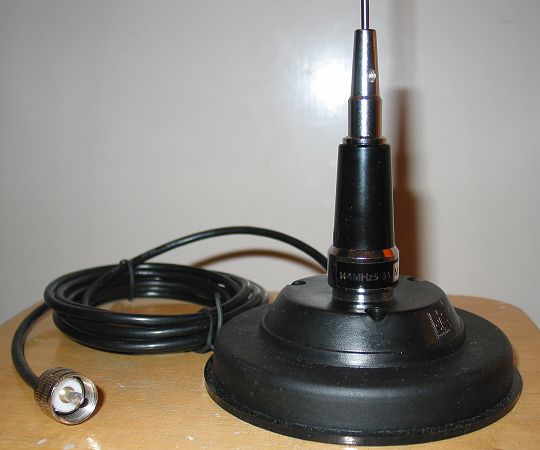

    Autossa M-285 Mag 5/8 pituus 1,2m teräspiiska 144 Mhz tai 1/4 aallon piiska

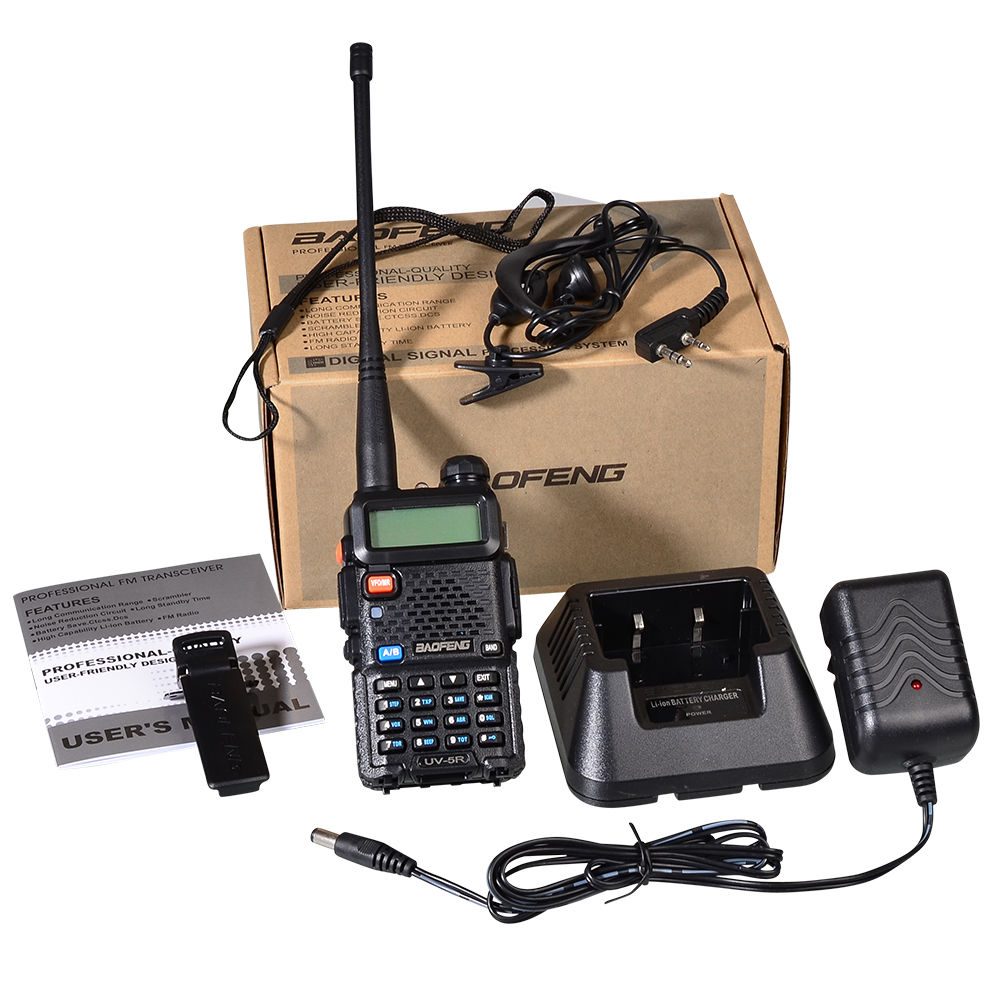

    BAOFENG UV-5RPT

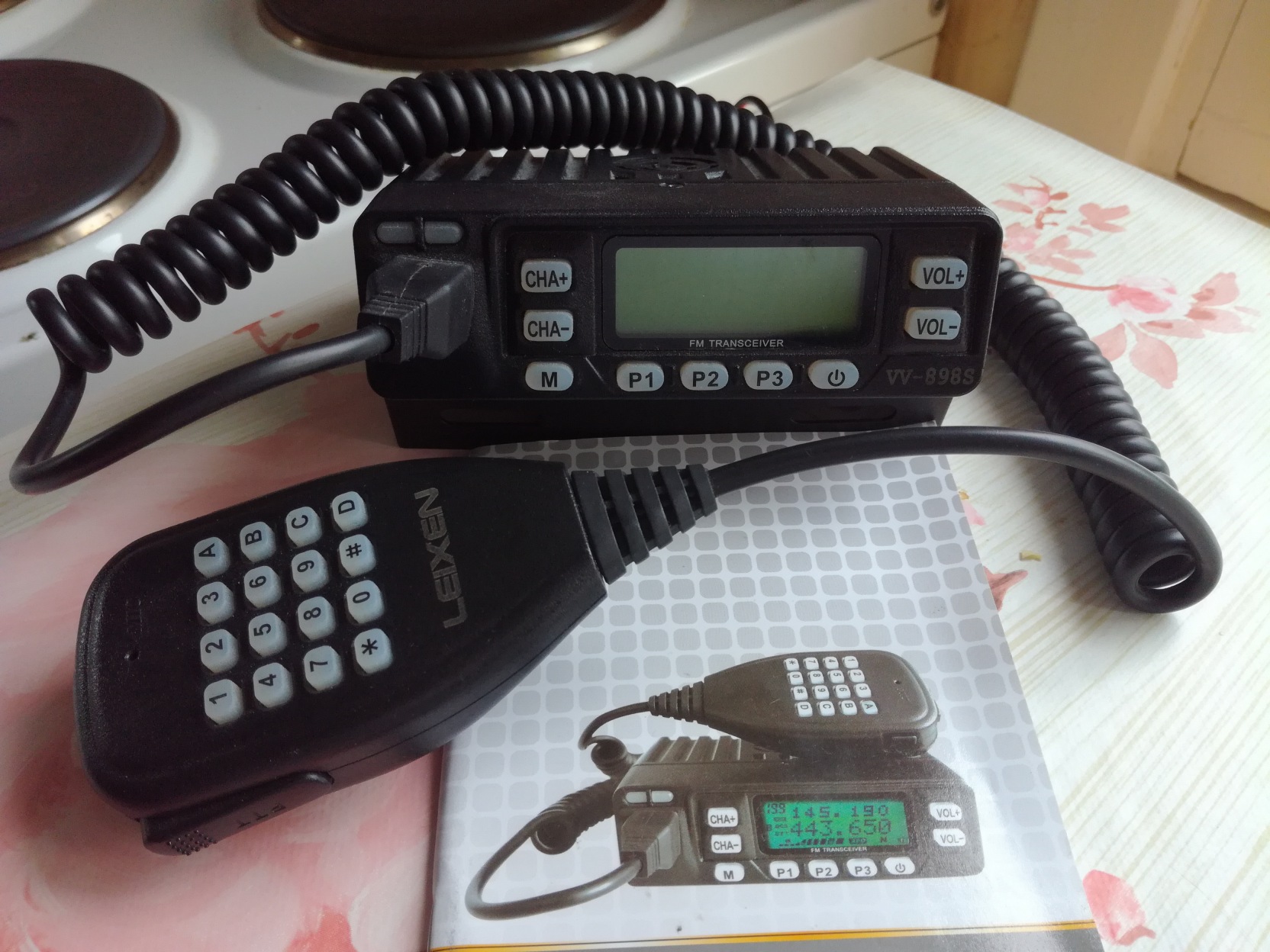

    LEIXEN VV-898S 2m ja 70cm VER 1.05

    Leixen VV-898 Jetstream JT270M Programming Software

    Download Software 1.05 11.05.2015

    Download USB driver

    Win XP ja Win 2000 = 2.0.2.1.zip

    Diamond Antenna HF-80FX 1,4m 3,5Mhz, ICOM BC-145 ja NAGOYA NA-144H

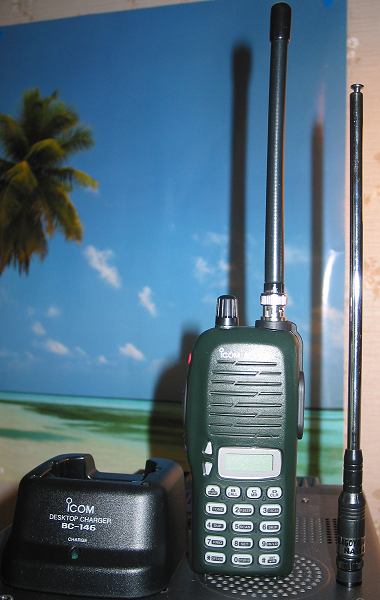

    IC-T3H 144-146 Mhz IC-T3H | Products | Icom Inc

    Icom T3H

    Output power 7.2V DC: High 5.5W  Low 0.5W...

    more info and http://www.maes-electr.be/index.htm?page=icom/ic-t3h.htm



    IC-T3H, TS-120S, IC-7400, IC-28H
