Transmitter Schematics and Parts Lists
1961 ARRL Handbook (38th Edition)
N6EV - Last Updated 3-13-97
Three Band Oscillator Transmitter for Novice (6DQ6A) Page 172
Schematic

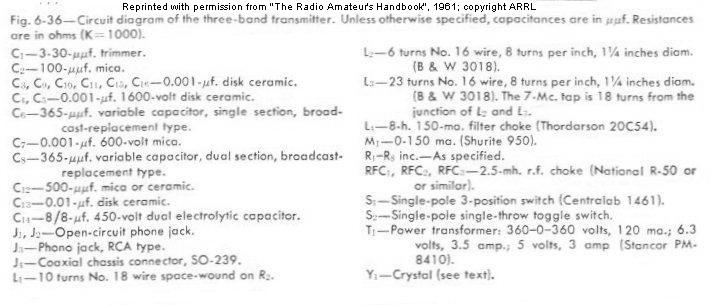

Parts List
All-Band Inexpensive 40-Watt Transmitter (6AG7 / 1625) Page 175
Schematic

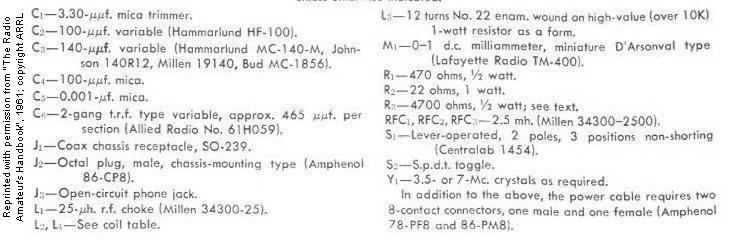

Parts List
A 75-Watt 6DQ5 Transmitter (6AG7 / 6DQ5) Page 179
Schematic
Parts List
A 90-Watt All-Purpose Amplifier (6146) Page 183
Schematic
Parts List
