ROELOF'S
LM-380 AUDIO AMPLIFIER

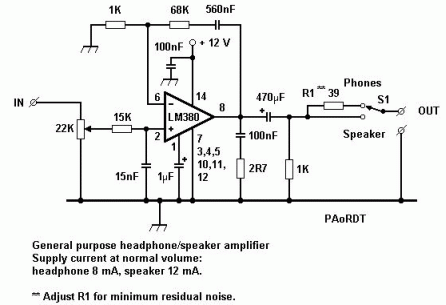

Here is a fairly simple general purpose audio amplifier suitable for use in receivers, audio filters or anywhere a small amplifier is needed.  Resistor R1 is selected to provide low residual noise in the headset while still providing sufficient audio.

Designed by Roelof Bakker.

Melt Some Solder!
