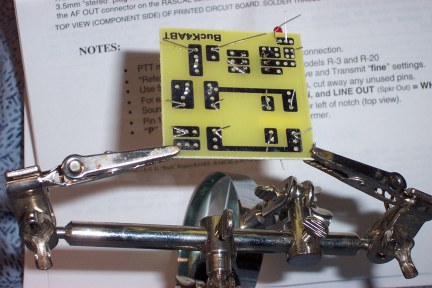

after placing all the components

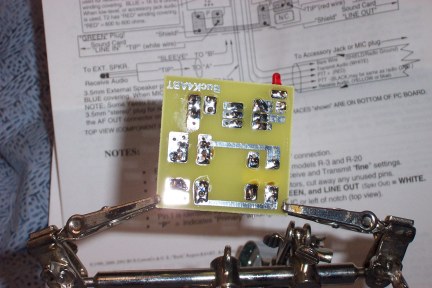

after soldering the components

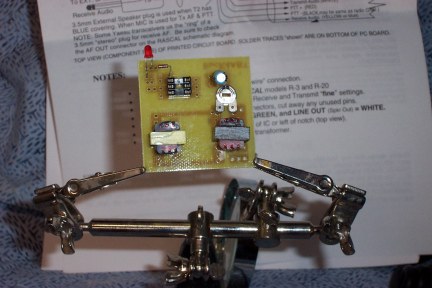

surface view of mounted components

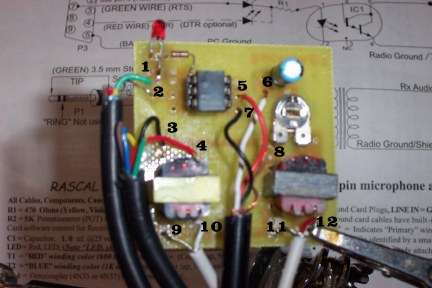

After adding serial port #1 and speaker from radio #2

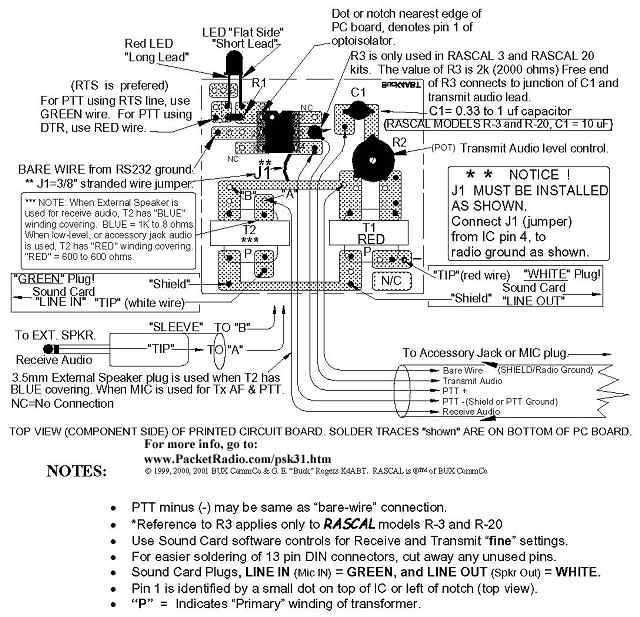

Headphones plug assembly for radio
1&2 Serial Port, 3&4 External Speaker, 5 PTT+, 7 PTT-,
6 Transmit Audio, 8 Bare Wire, 9&10 Line In or Mic,
11&12 Sound Card Out.
(Note! On back side there is a jumper [not shown],
between wire 7 and wire 3)

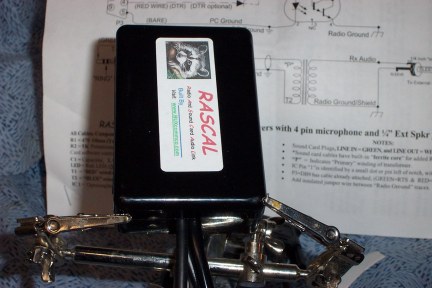

Finished and ready to mount in box.

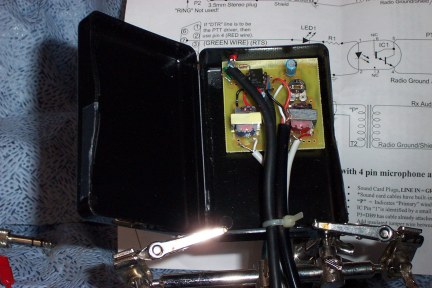

Holes drilled and cut and board mounted
Ready for the "Water Fall"!
