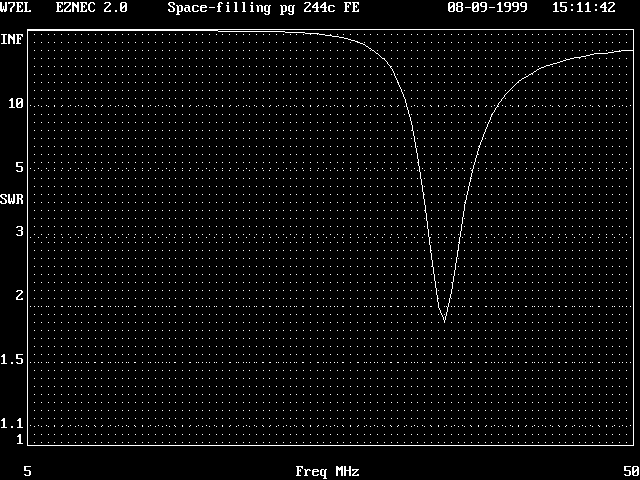

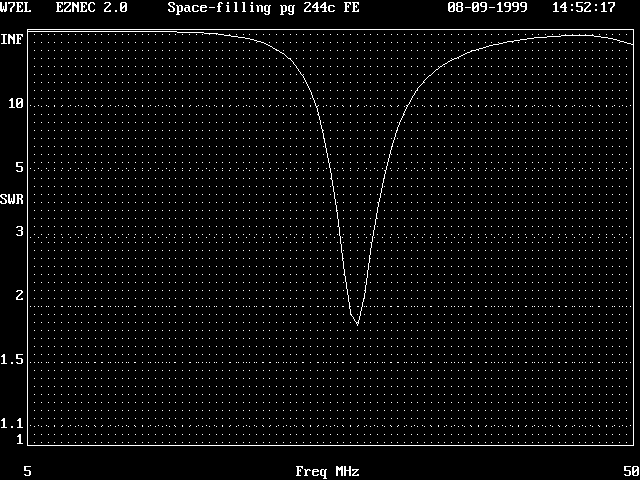

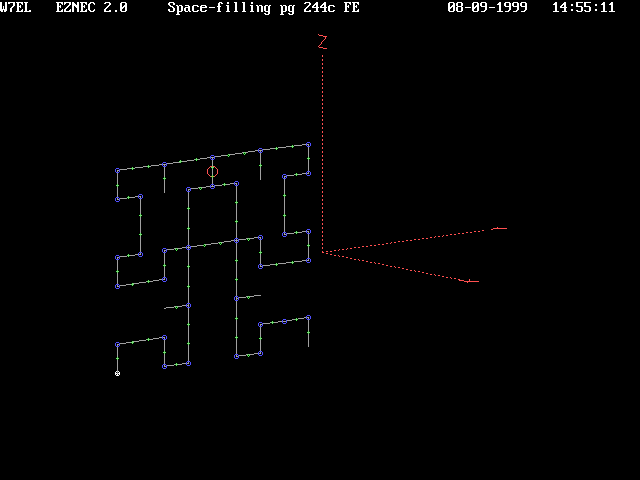

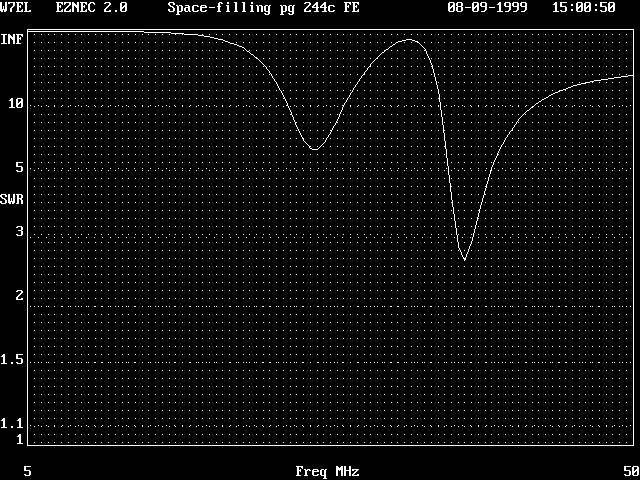

Space Filling Fractal Antenna (2) Here we have another form of a space filling fractal antenna. It like the others in this series, exhibits an achromatic response when compared to the amount of wire used to construct the antenna, and over the frequencies considered. This is the free space response with the drive point as illustrated in the antenna display above. Distinctly achromatic. This is the free space resonance with the drive moved. This move has resulted in a new null (but comparable to other space filling types). This is the perfect earth resonance. This was obtained through the arbitrary enforcement of ground occuring at the bottom of the structure (and employing the original drive point, as illustrated).
