Space Filling Fractals (1)

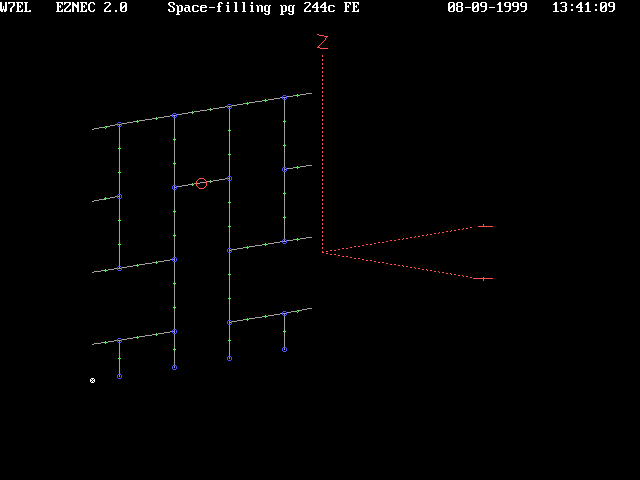

Here we have the first form of a space filling fractal antenna. It like the other in this series, exhibits an achromatic response when compared to the amount of wire used to construct the antenna, and over the frequencies considered.

This is the free space resonance. The characteristic I call achromatic is exhibited quite clearly here with the primary and secondary nulls. Those nulls breadth do reveal that this is a fat radiator.

This is the perfect earth resonance. This was obtained through the arbitrary enforcement of ground occuring at the bottom of the structure.
