6 meter Duplexer Project for the K5JMP Repeater

{short description of image}

SARA Coverage map Visit the Official SARA Web Site at  www.n4nw.org

Please be sure to read this brief page on VHF Propogation Basics

Please read our Standard Disclaimer regarding content of this site.

Loading the tower has commenced...

{short description of image}

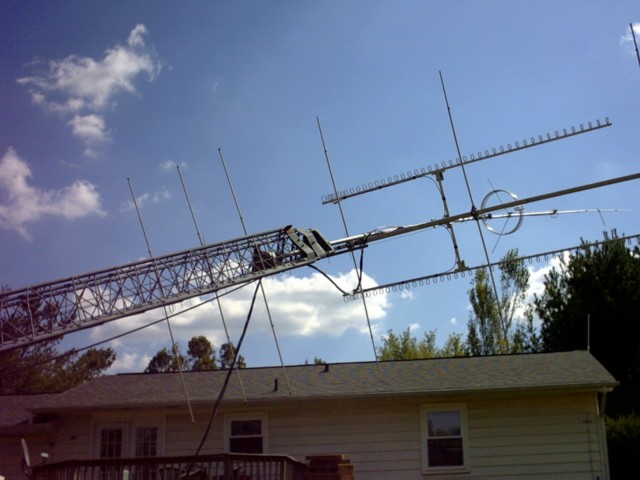

In this picture the ring yagi's are clearly visible... 45 elements each for 1200MHz ATV work. The 6m halo is a little more difficult to see, but also a new addition. Once I get the 2m and 70 cm beams in place, the only other thing I can think of would be something on 900MHz... also for ATV.

{short description of image}
With work completed for now... "mash da button" and it starts back to the up position.

{short description of image}
The motorized hinge makes it too easy to do maintenance.... or add things. ;-)

{short description of image}
How else would I be able to run around and take all these pictures as the tower goes up?

{short description of image}
It takes approximately 4 1/2 minutes from the time you "mash da button".. until it completes a full cycle....

{short description of image}
Just enough time to drink a cold 807 before you re-install the safety bolts..

73's de K5JMP
