RF Chain Construction

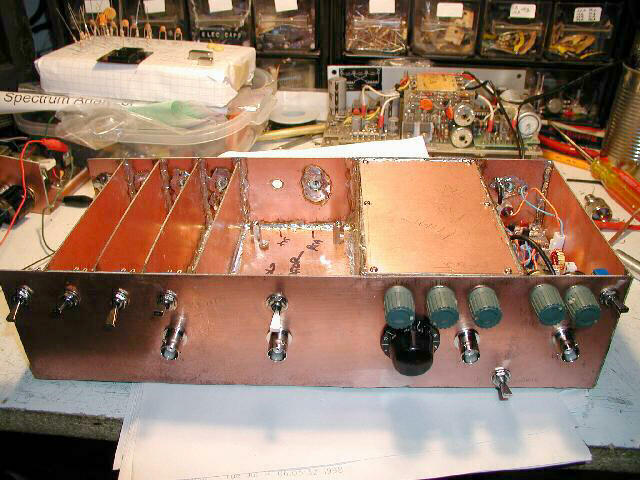

The Timing Base doesn't really have to be shielded, as all signals are DC. But since I wanted a fully self-contained unit, I put a top on it as well. The Log Amp is also installed, as is the 10MHz Resolution Filter. At this point, I could test the Timing Base, Log Amp and 10MHz Filter, using my MFJ Antenna Analyzer as a 10MHz signal generator. Adequate for this part of the job, for sure. Tuned the filter for the largest sine wave amplitude in my oscilloscope at 10MHz.
